- 163 -
LP Engine G430(3.0L) Base Engine Service Procedure
Cylinder Head Assemble
Tools Required
• J 8062 Valve Spring Compressor

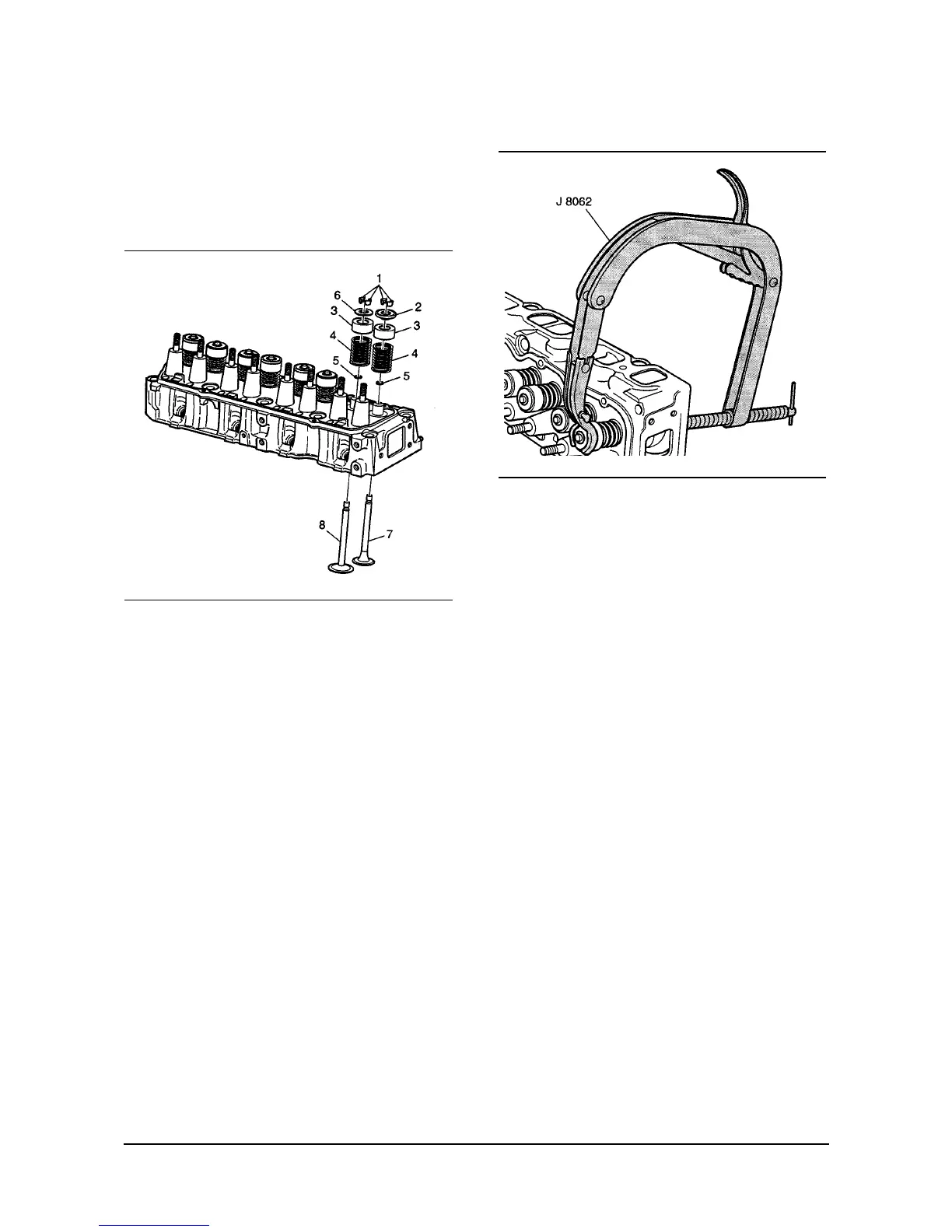

1. Install the valve (7&8) into the proper port.
2. Lubricate oil seal (5) with clean engine oil.
3. Install the oil seal onto the valve stem.
4. Install the valve spring (4).
5. Install the valve stem oil shield (3).
6. Install the cap on the valve spring (2&6).
CAUTION: Wear safety glasses in order to avoid eye
damage.
7. Use the J 8062 in order to compress the valve
spring.
8. Install the valve stem keys.
(1) Use grease to hold the keys in place while
disconnecting the J 8062.
(2) Make sure that the keys seat properly in the
upper groove of the valve stem.
(3) Tap the end of the valve stem with a plastic-
faced hammer in order to seat the keys if
necessary.
Service prior to Assembly
• Dirt or debris will cause premature wear of the rebuilt
engine. Clean all components. Refer to Cleanliness
and Care.
• Use the proper tools to measure components when
checking for excessive wear. Components that are
not within the manufacturers specifications must be
repaired or replaced.
• When components are reinstalled into an engine,
return the components to their original location,
position and direction. Refer to Separating Parts.
• During assembly, lubricate all moving parts with
clean engine oil or engine assembly lubricant (unless
otherwise specified). This will provide initial
lubrication when the engine is first started. Refer to
Sealers, Adhesives and Lubricants.
VE89-3L
VE090-3L
