11
5. BINDING
This chapter describes binding operations in the on-line mode and off-line (manual feed) mode.
To bind another new set, bind one set, check that each page has been bound properly, and that
the stapled and folded positions are correct first before beginning continuous binding operations.
NOTE : Setting the wrong paper size with the stapler head, clincher, side jogger, etc., and the wrong stapling/folding
method (saddle-stapling, center-folding, side-stapling, corner-stapling) will not only lead to poor finish but
cause the unit to damage as well. Read the following instructions carefully.

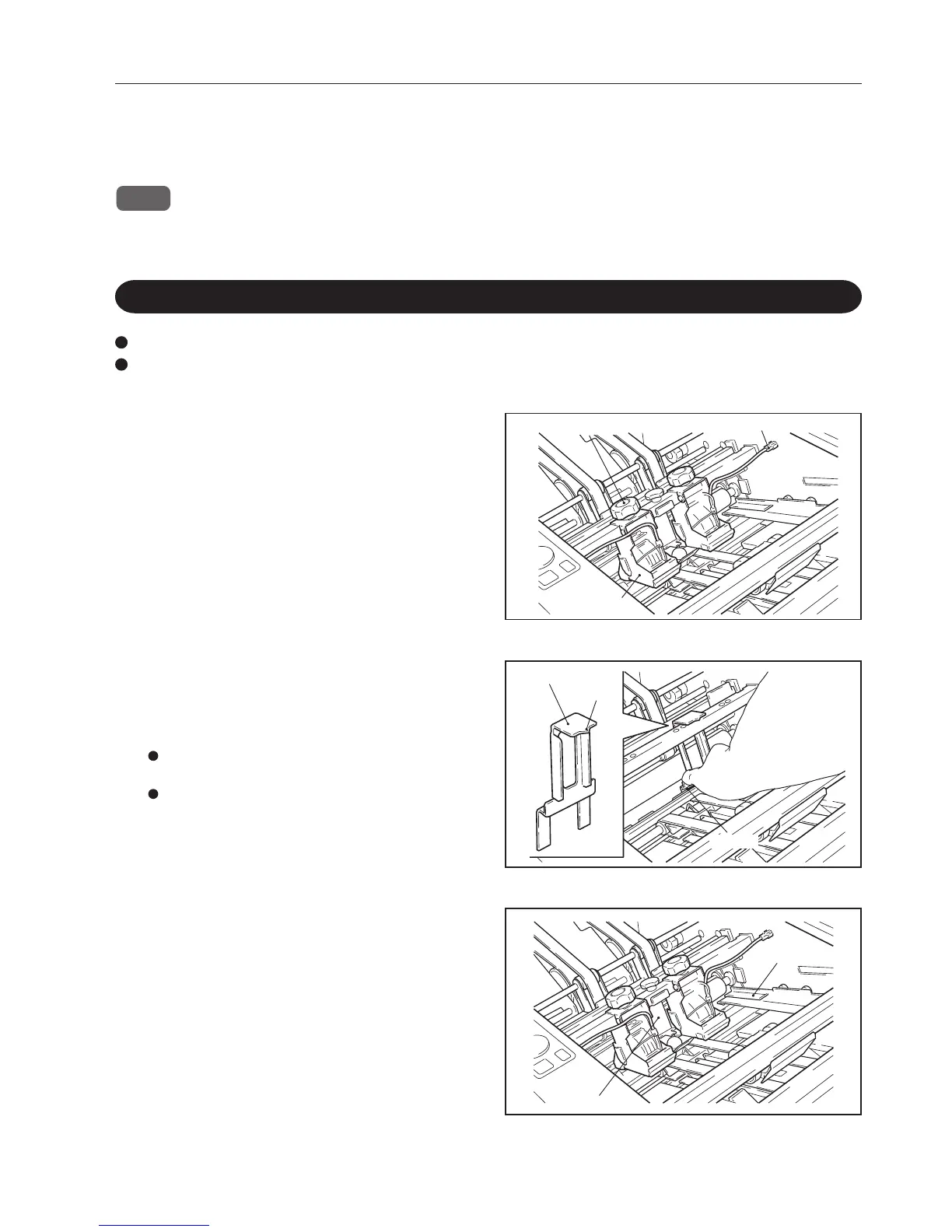

5-1. Setting the Staple Position
To set the staple position, the stapler head and clincher must be moved.
To move the clincher, a special tool (accessory) is required.
Disconnect the connector, and then rotate
the knob screw and remove the stapler
head.
Insert the special tool into the clincher,
and while pushing it down, move the
clincher to the desired position.
Set the projection of the special tool to the position to
be set.
Lift up the special tool slightly and swing it to the left
and right. The clincher will stop.
Stapler head
Connector
Knob screw
Special tool
Projection
1
2
Clincher
If the ball unit or side jogger must be
removed temporarily to move the clincher,
ensure that each part is fixed properly
after setting.
3
Ball unit
Side jogger
To Next Page
