7. FINE-ADJUSTING PAPER ALIGNMENT, STAPLING AND FOLDING POSITIONS

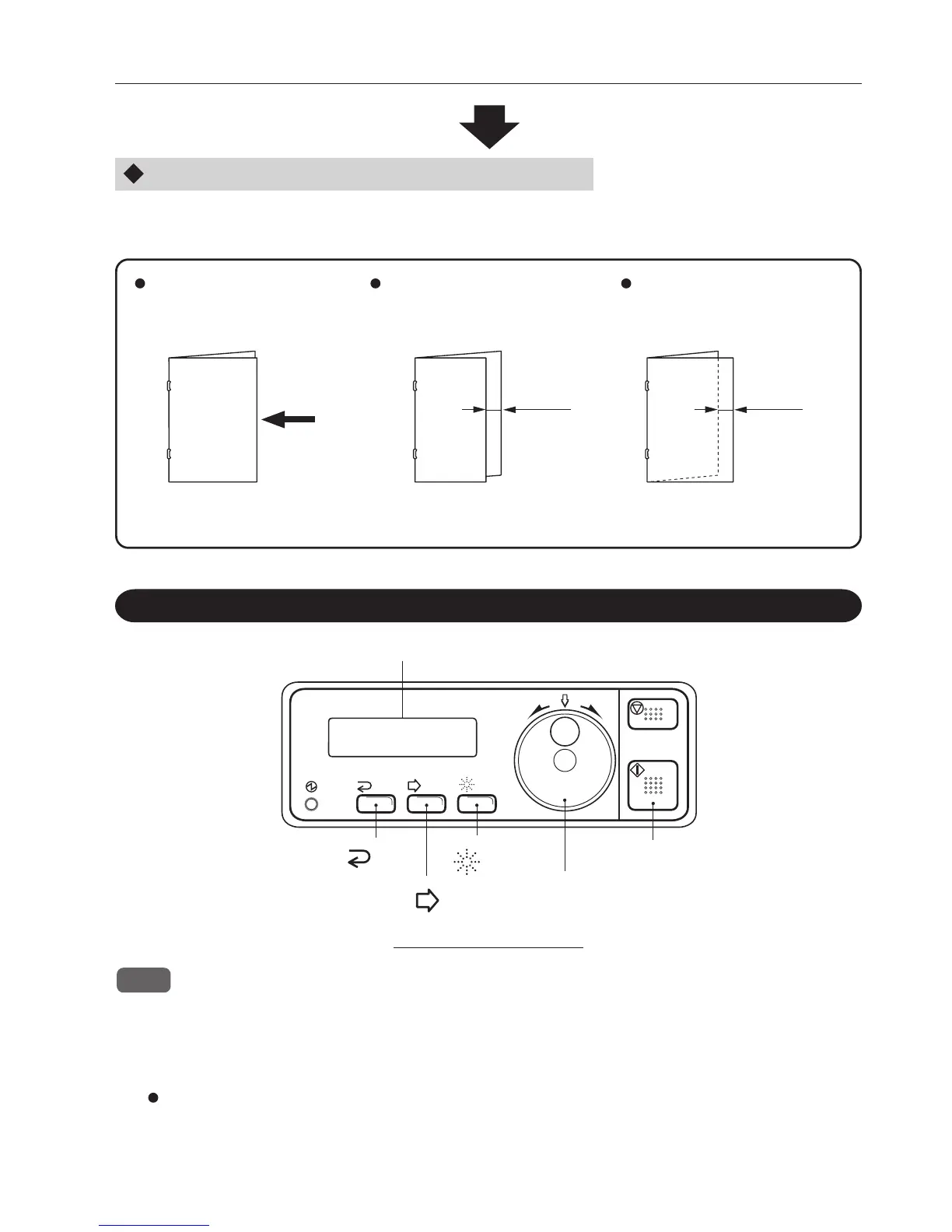

Correct example
The stapled/folded line is at
the center of the paper.
Is the stapled/folded line at the center of the paper?
If not, refer to “5-5. Selecting the Ball Unit Ball” and “7-3. Fine-adjusting the Stapling and
Folding Positions”.
The stapled/folded line is
out of position and the top
half of the paper is shorter.
The stapled/folded line is out
of position and the bottom
half of the paper is shorter.
Fine-adjust the stapling position
by inputting an appropriate value
on the + (plus) side.
Fine-adjust the stapling position
by inputting an appropriate value
on the – (minus) side.
Paper ejection
direction
Misalignment Misalignment
7-2. Fine-adjusting the Paper Alignment
Set the output mode, paper size, and number of sheets.
Refer to “6-1. Basic Operation”.
All the fine-adjustment data are memorized for each paper size.
1
Stapler folder control panel
NOTE : During fine adjustments, no trimming is performed even if the trimmer is connected.
Booklet A3 2
Ready
button
Clear
button
Escape
Jog dial
Display
button
Function
Start button
