7. FINE-ADJUSTING PAPER ALIGNMENT, STAPLING AND FOLDING POSITIONS

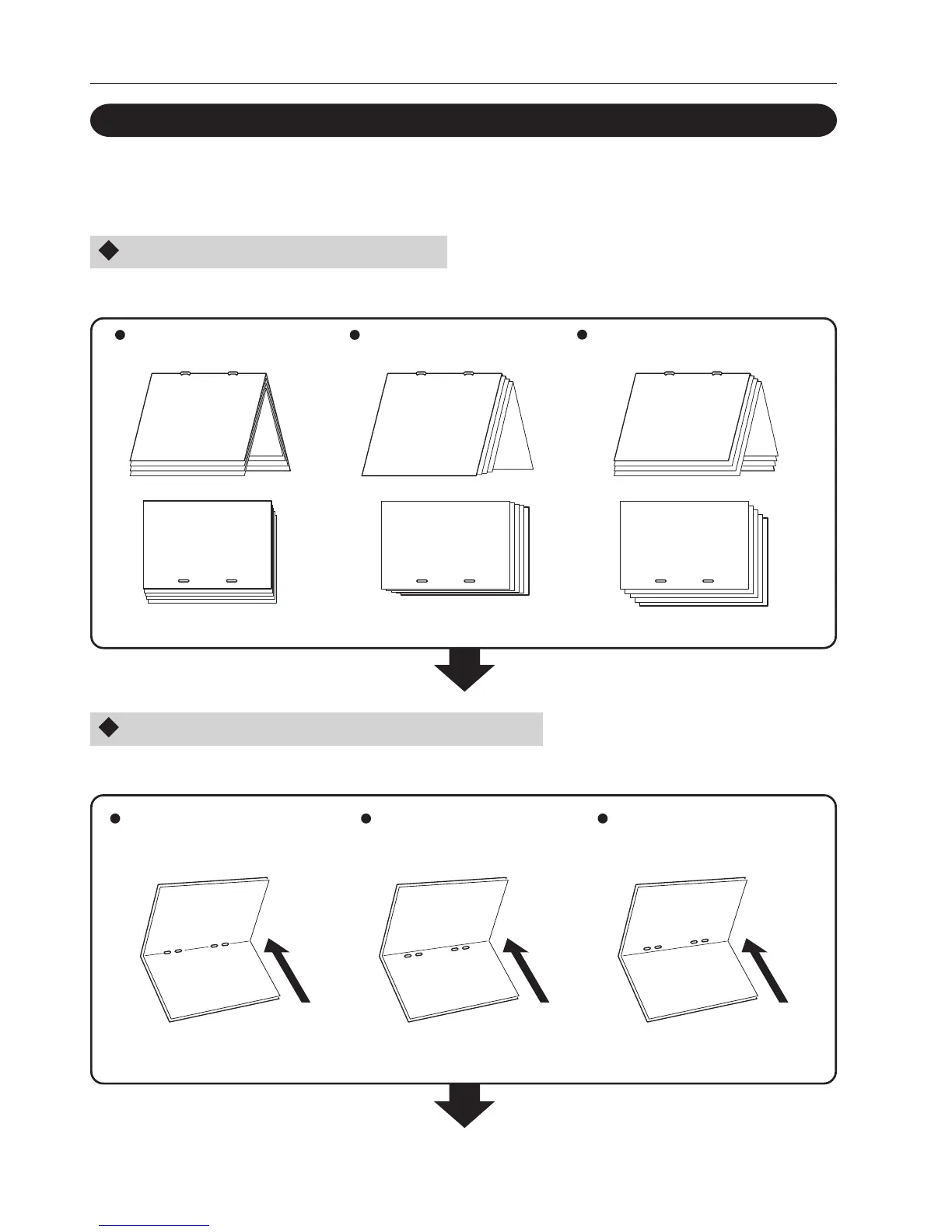

7-1. Check the Binding Condition
The sheets of paper are not
aligned along the length.
Fine adjustment is required when the paper is not aligned, or the stapling or folding position is
unsatisfactory.
Is the paper aligned?
If not, refer to “7-2. Fine-adjusting the Paper Alignment”.
The sheets of paper are
not aligned along the side.
The sheets of paper are not
aligned along the length and side.
It is necessary to adjust the
back joggers.
It is necessary to adjust the side
joggers.
It is necessary to adjust both the
back joggers and the side joggers.
Correct example
The folded line and stapled
position are aligned.
Are the folded line and stapled position aligned?
If not, refer to “7-3. Fine-adjusting the Stapling and Folding Positions”.
The folded line is
slightly deviated above
the stapled position.
The folded line is slightly
deviated below the stapled
position.
Fine-adjust the folding position
by inputting an appropriate value
on the + (plus) side.
Fine-adjust the folding position
by inputting an appropriate value
on the – (minus) side.
Paper ejection
direction
To Next Page
