Chapter 6 – Pump End/Grinder Mechanism
Removing the Pump Stator
1. Remove the retaining clips from the bottom of the Level Sensor.
2. Lay the pump core on its side. Support the Motor Head on a 4 x 4 wooded block.
3. (If Applicable). Remove the wire stand from the pump core. There is a hole in the
Suction Housing that a 1/8” punch can be used in to aid the removal of the wire stand.

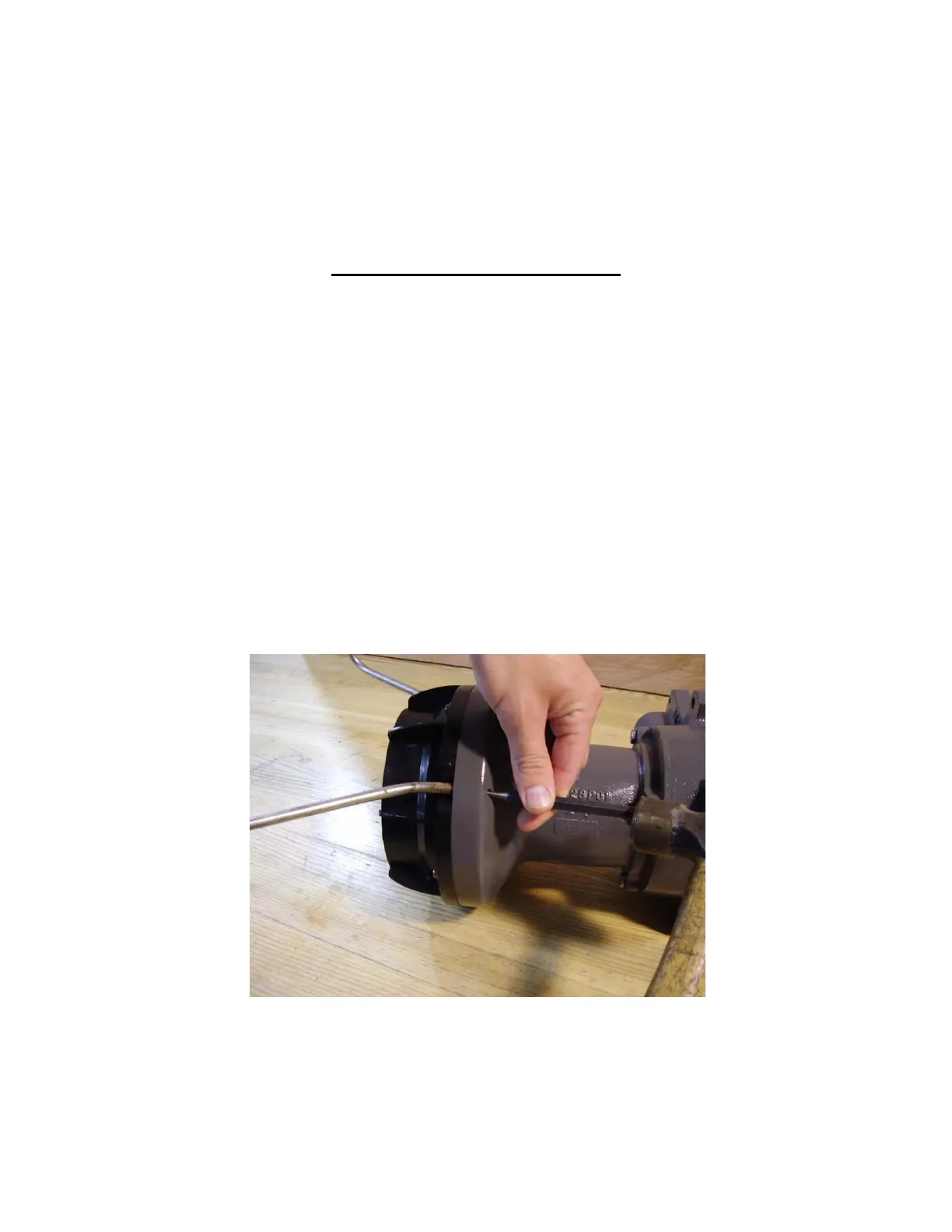

Figure 6 - 1
