E-one Extreme Series User Manual

35
3. Insert the wire ends of the Power Cable into the EQD insert, assuring proper pin number
and wire color alignment shown below:
Figure 7 – 5

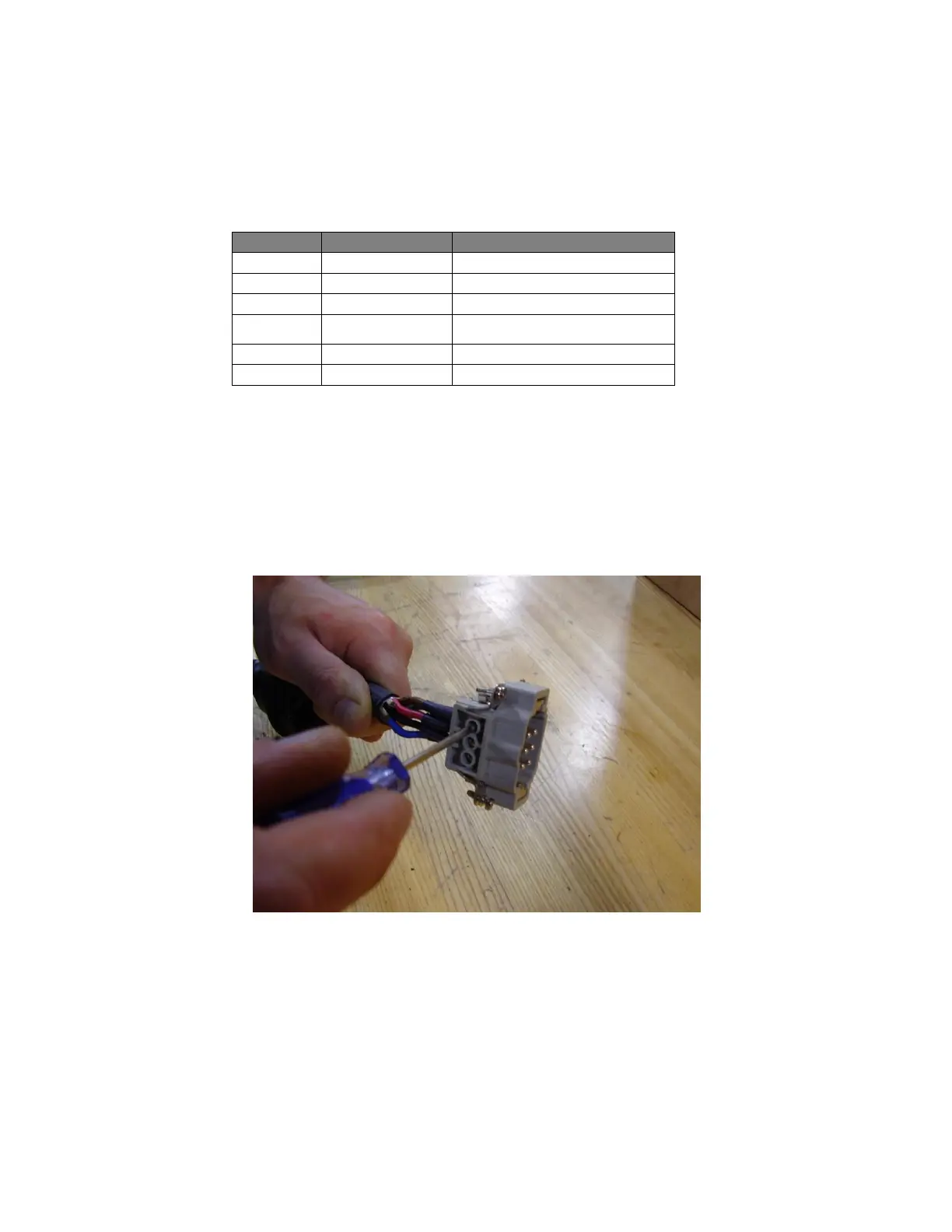

4. Tighten the six setscrews. Make sure the wires have been stripped back 1/4” to 3/8” for
proper installation.
Figure 7 – 6
EQD,PIN#
Wire Color
Function
1
Brown
Manual Run
2
Red
L1
3
Black
(240V L2) or (120V Neutral)
4
Green w/yellow
stripe
Ground
5
Yellow
Alarm power Feed
6
Blue
Alarm power return
