Using Table 2, select the appropriate recloser interrupting
duty cycle factor and enter that value via the ProView NXG
interface software.
Table 2. Duty cycle factor.
Recloser type
Interrupting rating
(rms sym Amps)
100% Duty cycle
factor*
WE 12,000 @ 4.8 kV 257
WE 10,000 @ 14.4 kV 196
VWE
VWVE27
VWVE38X
12,000 1045
WVE27 8,000 140
WVE38X 8,000 140
VSA12 12,000 1045
VSA16 16,000 1608
VSA20
VSA20A
20,000 2248
VSO12 12,000 1045
VSO16 16,000 1608
Auxiliary-Powered
NOVA
12,500 1111
16,000 1608
Control-Powered
NOVA
12,500 1111
16,000 1608
*Duty Cycle Factor is Value x 10
5
.
Mounting the control
WARNING
This equipment is not intended to protect human
life. Follow all locally approved procedures and safety
practices when installing or operating this equipment.
Failure to comply may result in death, severe personal
injury and equipment damage.
G102.1
Mount the Form 4D pole-mount recloser control in a
convenient, accessible location. Mounting dimensions are
provided in Figure 11.
ote:N Unless otherwise specified, dimensions shown in
inches.
A hole and keyway in the control mounting bracket
accommodates a 12 mm (0.50”) diameter bolt.
IMPORTANT
When opened, both the cabinet door and the inside
swing-panel door lock into the open position. Lift the
door or swing-panel up to raise the hinge out of the
locking position prior to closing the inside swing-panel
door or the cabinet door. Instructions are indicated on
the inside of the cabinet door.
20.19
1.45
PROVISIONS FOR
UP TO 5/8"
MOUNTING HARDWARE.
QUARTER TURN
LATCH WITH
PADLOCK
PROVISIONS
RECOMMEND TO
USE THE SMALL
DIAMETER HOLE
(0.320 inch)
QUARTER TURN
LATCH GROUND LUG FOR
#6 to #14 SOLID OR
STRANDED WIRE
LASER CUT
VENT OPENINGS
OPENINGS FOR OPTIONAL RECEPTACLES
UNDER STAINLESS COVERS, ACCESSABLE ONLY FROM
INSIDE OF CABINET
FOR RADIO ANTENNA
RECEPTACLE
CONTROL
POWER
INPUT
RECEPTACLE
FOR RECLOSER
CONTROL CABLE
21.94
18.00
13.40
1.25
15.07
1.13 LIFTING
LUG

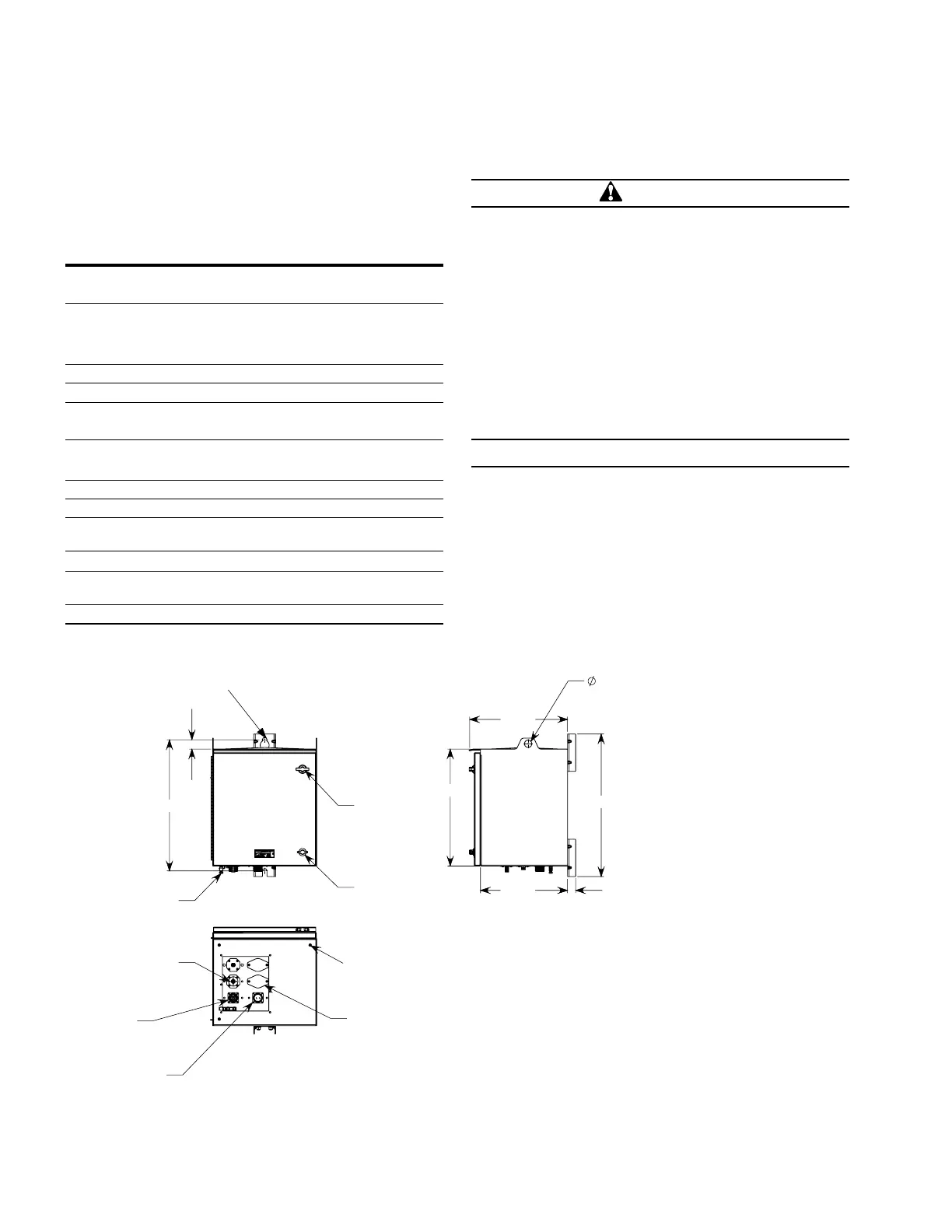

Figure 11. Form 4D Pole-mount recloser control weights and dimensions
CONTROL WEIGHT: 29 kg
(63 lbs.) without battery
8 AH BATTERY WEIGHT: 6 kg
(13 lbs.)
13 AH BATTERY WEIGHT: 10
kg (24 lbs.)
(All weights are approximate.)
