Cable locking sleeves
To prevent detachment of the control cable from the control
cabinet by unauthorized personnel, a cable-locking sleeve
(Catalog Number KME4D-1772-X [replace X with quantity:
maximum 5]) is available to enclose the cable plug. The
plug is passed through the sleeve and the sleeve is then
fastened from inside the control cabinet. There is no access
to the cable receptacle without opening the locked cabinet
door and detaching the sleeve.
BCT Terminal blocks accessories
Separate BCT terminal blocks provide a connection point
for external 600:5 or 1200:5 multi-ratio bushing current
transformers. BCT terminal blocks are available for both the
load or source sides and include wire for all ratios of the
BCT. Refer to Table 8 and Figure 25.
Auxiliary ter minal block accessory
An auxiliary terminal block and receptacle is available for three-
stage auxiliary switch wiring. Refer to Table 8 and Figure 25.
Table 8. Terminal blocks (maximum 12-gauge wire)
Description Catalog number
BCT shorting-type terminal block for (LOAD)
bushings 2, 4, 6
KME4D-1773-A
BCT shorting-type terminal block for (SOURCE)
bushings 1, 3, 5
KME4D-1773-B
Terminal block and receptacle for wiring of three-
stage auxiliary switch, KA542R3
KME4D-1801-11
ote:N For every one terminal block accessory ordered, the
maximum additional I/O allowed quantity is reduced
by one.
Auxiliary Terminal
Block Accessory
BCT
Terminal
Blocks

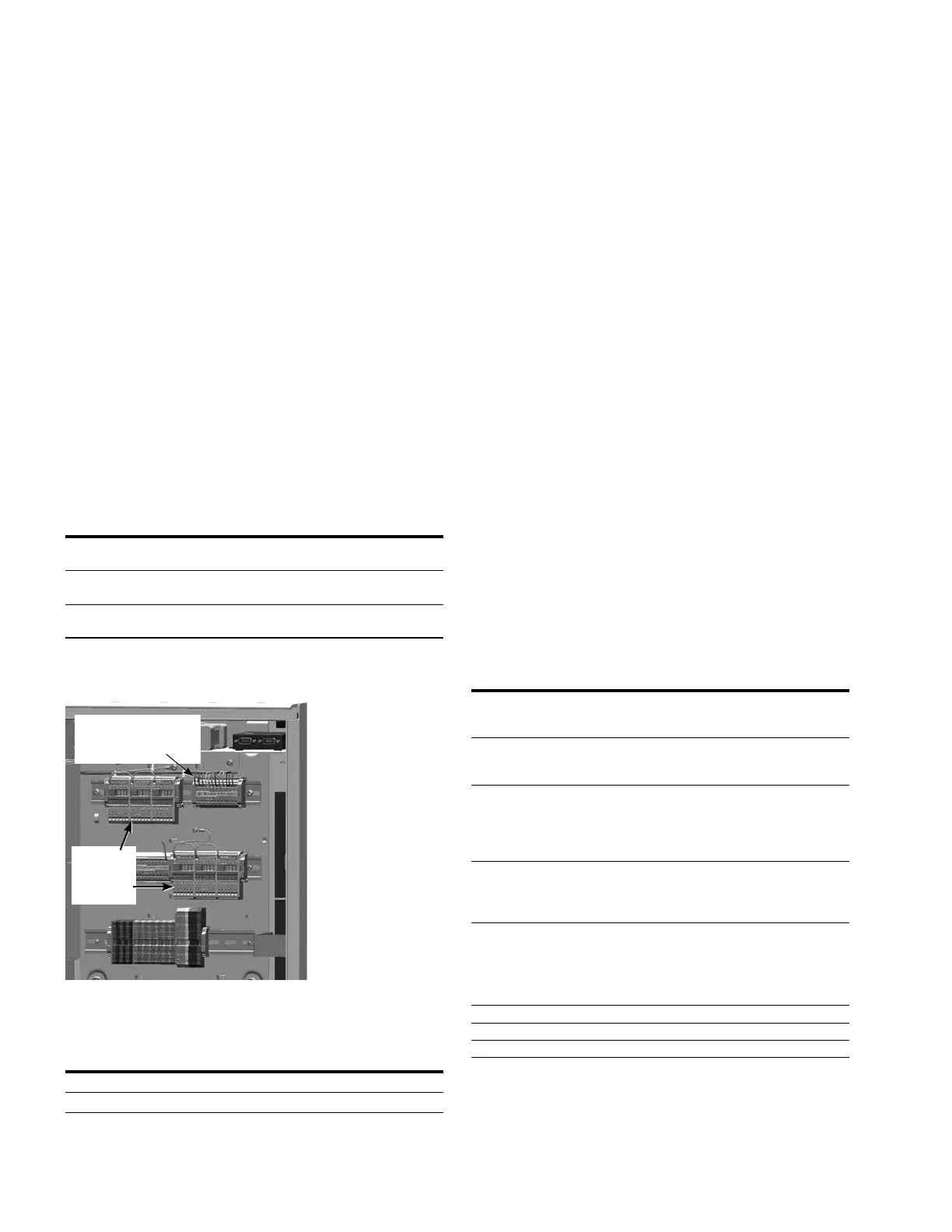

Figure 25. Sample BCT terminal blocks configuration
and positioning of auxiliary terminal block accessory
Table 9. Miscellaneous accessories
Description Catalog number
120 VAC battery charger for spare batteries KME5-60-1
Made in USA decal K89-407-1
120 VAC GFI Duplex outlet
The GFI Duplex Outlet (Catalog Number KME4D-1776)
is available for controls powered by 120 VAC or 240 VAC
three-wire supply power. This convenience outlet is rated for
3 Amperes and is accessible through the front door in the
control cabinet. The 120 VAC GFI Duplex Outlet is used for
many applications such as power for the MET Tester, auxiliary
measurement equipment, and supplemental lighting.
Automation accessory packages
The Form 4D control includes an auxiliary power supply
that provides a customer connection to 13.5VDC. This
source is intended to be used to power radios and other
communications support equipment for connection to
SCADA and other remote communications systems. The
power supply is backed up by the control batteries in the
Form 4D control cabinet, and will continue to provide power
to connected accessories under loss of AC line power to the
recloser control. A maximum of 12W continuous and 30W
peak (intermittent) power can be delivered to accessories
connected to the auxiliary power supply.
A variety of automation packages are available to be used
in conjunction with the auxiliary power supply to facilitate
the mounting and proper connection of antennas to radios
mounted in the control cabinet. Packages are available to
support many popular radio technologies and frequency
bands. See Table 10 for details on each of the available
automation accessory packages.
Table 10. Automation accessory packages
(A maximum of two accessories can be ordered.
KME4D-1774-21 is not included in this maximum.)
Description Catalog number
Wireless communication provisions package
13.5 VDC interface board, radio mounting tray
(Radio and communications interface cards not included)
KME4D-1774-21
Cellular communications connection and protection package
32” SMA(m)-N(m) coax pigtail, 700MHz - 2GHz PolyPhaser and
mounting hardware, N(f)-type external termination
KME4D-1774-14*
WiFi/WiMax communications connection and protection
package
32” SMA(m)-N(m) coax pigtail, 2GHz-6GHz Polyphaser and
mounting hardware, N(f)-type external termination, TNC(m)-
SMA(m) inline coaxial adapter
KME4D-1774-15*
125MHz to 1GHz N-terminated radio connection and protection
package
25” N(m)-N(m) coax pigtail, 125MHz to 1GHz PolyPhaser
and mounting hardware, N(f)-type external termination
KME4D-1774-16*
700MHz to 2GHz TNC-terminated radio connection and
protection package
32” TNC(m)-N(m) coax pigtail, 700MHz to 2GHz
PolyPhaser and mounting hardware,
N(f)-type external termination
KME4D-1774-17*
PolyPhaser and mounting hardware - 125MHz-1GHz KME4D-1774-A*
PolyPhaser and mounting hardware - 700MHz-2GHz KME4D-1774-B*
PolyPhaser and mounting hardware - 2GHz-6GHz KME4D-1774-C*
* Requires that the KME4D-1774-21 wireless communication provisions
package also be ordered.
32
OPERATION INSTRUCTIONS MN280049EN September 2017
Form 4D Microprocessor-based pole-mount recloser control installation and operation instructions
