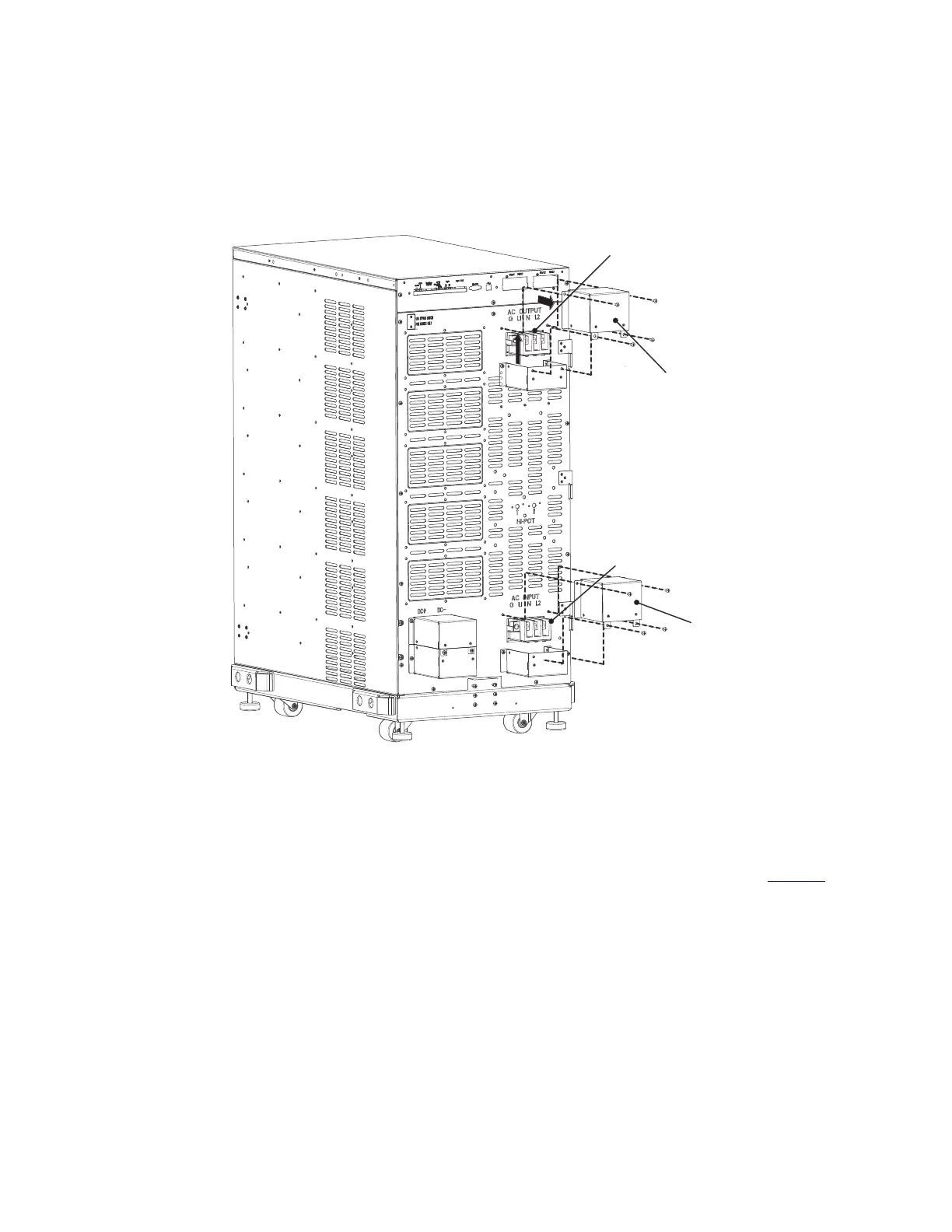

Figure 16. UPS AC Power Terminal Access
Terminal Cover
AC Output Terminals
AC Input Terminals
Terminal Cover
5. At the AC Input terminal, make sure to wire the UPS for the proper input voltage as shown in Figure 17 .
Split-phase power modules provide a 2-phase output which can be configured as output voltages: 110/110
for 220, 120/120 for 240, 120/120 for 208, or 127/127 for 220 Vac, as selected through the front panel
display.
UPS Connections

Eaton 9PXM Specifications

General

Topology	Double Conversion Online
Battery Type	Valve-Regulated Lead Acid (VRLA)
Power Factor	0.9
Frequency	50/60 Hz
Efficiency	Up to 96%
Input Voltage	208/220/230/240 VAC (single-phase); 208/400/415 VAC (three-phase)
Output Voltage	208/220/230/240 VAC (single-phase); 208/400/415 VAC (three-phase)
Communication Ports	USB, RS-232, Optional Network Card
Operating Temperature	0 to 40°C
Weight	Varies by model
Dimensions	Varies by model
