Eaton GridAdvisor Series II Maintenance Instructions

Type VSA12, VSA16 and VSA20/800 maintenance instructions
20MAINTENANCE INSTRUCTIONS MN280064EN October 2017
Interrupter Cabinet (Figure 23)
Item no. Description Catalog number
Qty. per
assy.
1 Interrupter cabinet cover KA281VS 1
2 Enclosure KA177VS 1
3 Rear cover support KA178VS 1
4
Cover and operating
cabinet support
KA179VS 1
5 Side panel KA180VS900 2
6 Ventilating screen plug KP2204A1 2
7 Speed nut KP2005A4 24
8
Screw, self tapping,
#14 x 3/4, st stl
K801715014075A 24
9
Machine screw, hex
hd, 3/8-16 X1, st stl
K730115137100A 16
10 Hex nut, 3/8-16 K880201116037Q 16
Item no. Description Catalog number
Qty. per
assy.
11 Washer, 3/8, st stl K900215037000A 16
12 Lock washer, 3/8 external tooth K901101037000Z 16
13 Heater guard KP1173CE 2
14 Resistor, 1000 ohms KP287VR 2
15 Bracket KP255NR 4
16
Machine screw,
rd hd, #8-32 x 7/16, st stl
K721515108043A 12
17 Lockwasher, #8 med, st stl K900815008000A 12
18 Washer, #10, brass K900525020043A 8
19 Nut, hex, #8-32, st stl K880215132008A 12
20 Nylo Clip KP2006A1 4
21 Washer, 1/4, st stl K900215026050A 24
16
17
14
15
15
13
13
3
11
11
12
3
10
10
3
2
5
8
8
8
7
8
5
9
9
3
3
3
3
3
3
6
5
7
5
6
2
4
4
3
1

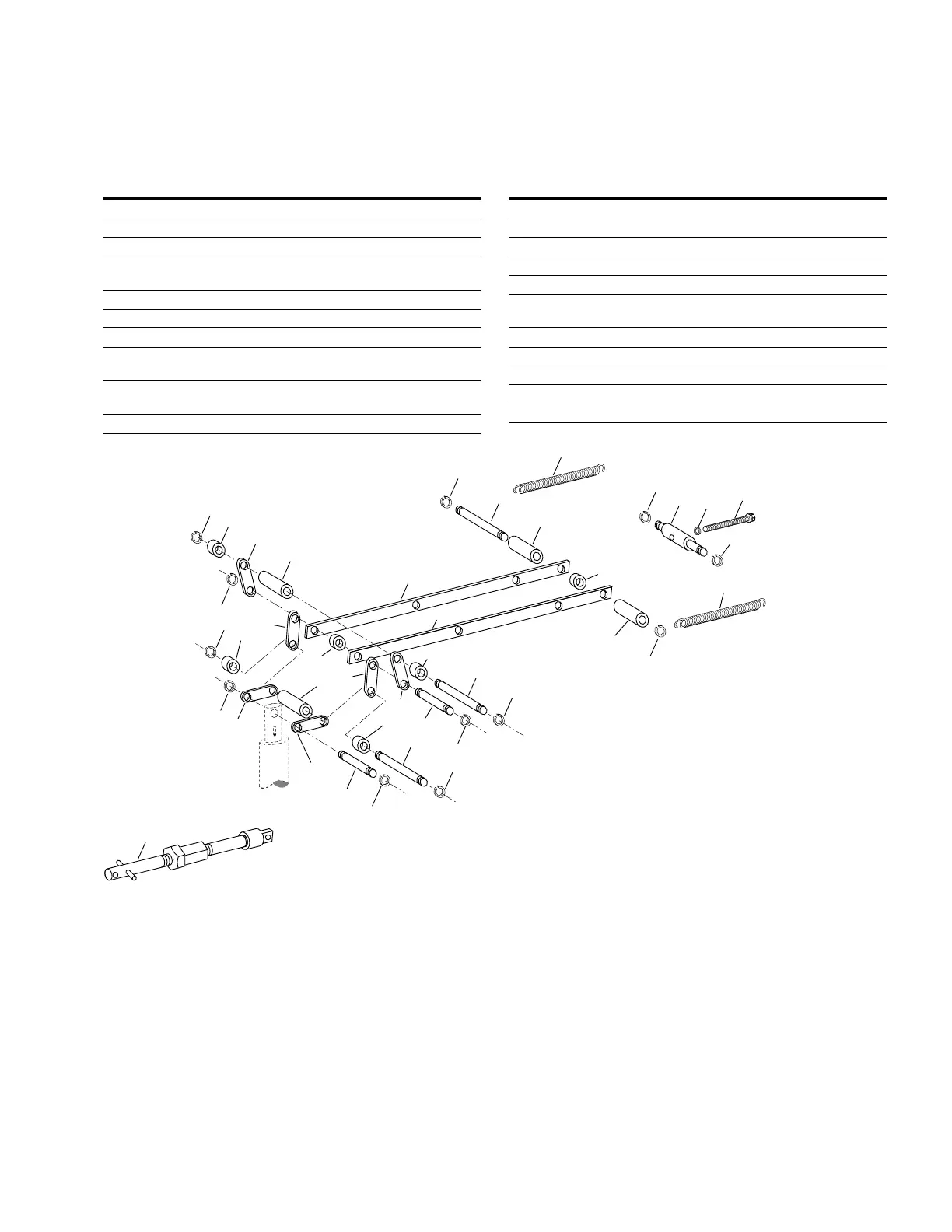

Figure 24. Operating linkage assembly
