Operation
OPERATIONAL MANUAL MN156001EN October 2015 www.eaton.com

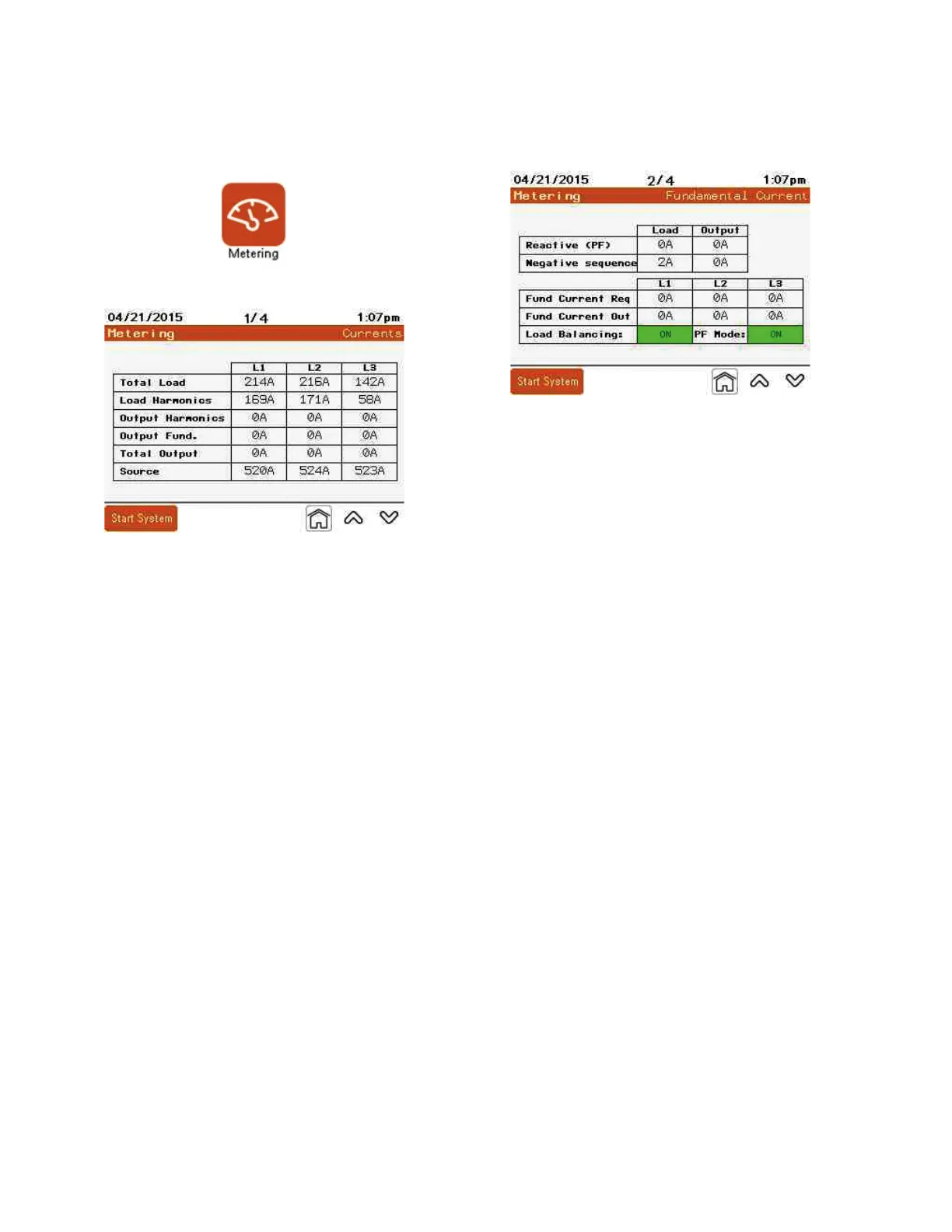

Metering
Currents
Total Load: Total load current in amperes RMS.
Load Harmonics: Total load harmonic current in
amperes RMS.
Output Harmonics: Harmonic current output of the unit in
amperes RMS for harmonic mitigation.
Output Fund: Output current at the fundamental frequency
for power factor correction and/or load balancing.
Total Output: Total output current of the unit in
amperes RMS.
Source: Total source current in amperes RMS.
Fundamental Currents
Reactive (PF): Displays per phase average reactive current
of the load and output in amperes RMS.
Negative sequence: Negative sequence current of the load
and output in amperes RMS.
Fund current Req: Fundamental current required per phase
to achieve set point.
Fund Current Out: Displays fundamental current produced
per phase.
Load Balancing: Indicates whether the Load Balancing
mode is ON or OFF.
PF Mode: Indicates that the Power Factor correction mode
is ON or OFF.
