Eaton HCU2 User Manual

8
Operation
OPERATIONAL MANUAL MN156001EN October 2015 www.eaton.com

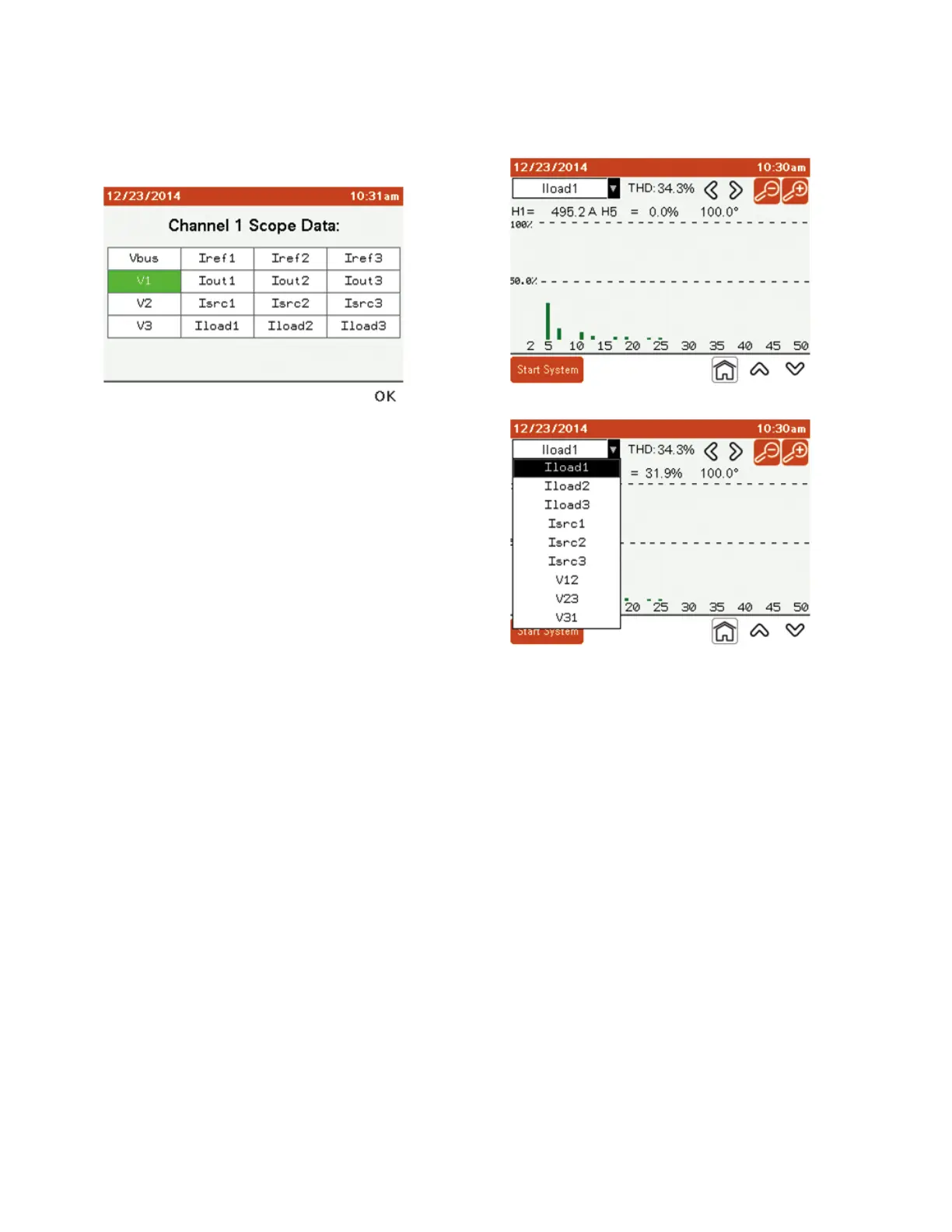

Available Scope Data
Vbus: Voltage of the total DC bus.
V1: Line to line voltage of L1 to L2
V2: Line-to-line voltage of L2 to L3
V3: Line-to-line voltage of L3 to L1
Iref1: Current reference L1
Iref2: Current reference L2
Iref3: Current reference L3
Iout1: Current output L1
Iout2: Current output L2
Iout3: Current output L3
Isrc1: Current source L1
Isrc2: Current source L2
Isrc3: Current source L3
Iload1: Current load L1
Iload2: Current load L2
Iload3: Current load L3
Use the top left drop-down to select the value to be
analyzed.
H1, the fundamental value is constantly displayed. You can
display a specific harmonic order value by pressing the left
or right arrows at the top of the screen. You can adjust the
amplitude scale with the magnifying glass icons. The values
you can display are:
•
V12: Bar graph harmonic analysis of the voltage of
L1 to L2.
•
V23: Bar graph harmonic analysis of the voltage of
L2 to L3.
•
V31: Bar graph harmonic analysis of the voltage of
L3 to L1.
•
Isrc1: Bar graph harmonic analysis of Current source L1.
•
Isrc2: Bar graph harmonic analysis of Current source L2.
•
Isrc3: Bar graph harmonic analysis of Current source L3.
•
Iload1: Bar graph harmonic analysis of current load L1.
•
Iload2: Bar graph harmonic analysis of current load L2.
•
Iload3: Bar graph harmonic analysis of current load L3.
