Eizo FlexScan S2202W User Manual

27
Chapter 5 Reference
Chapter 5 Reference

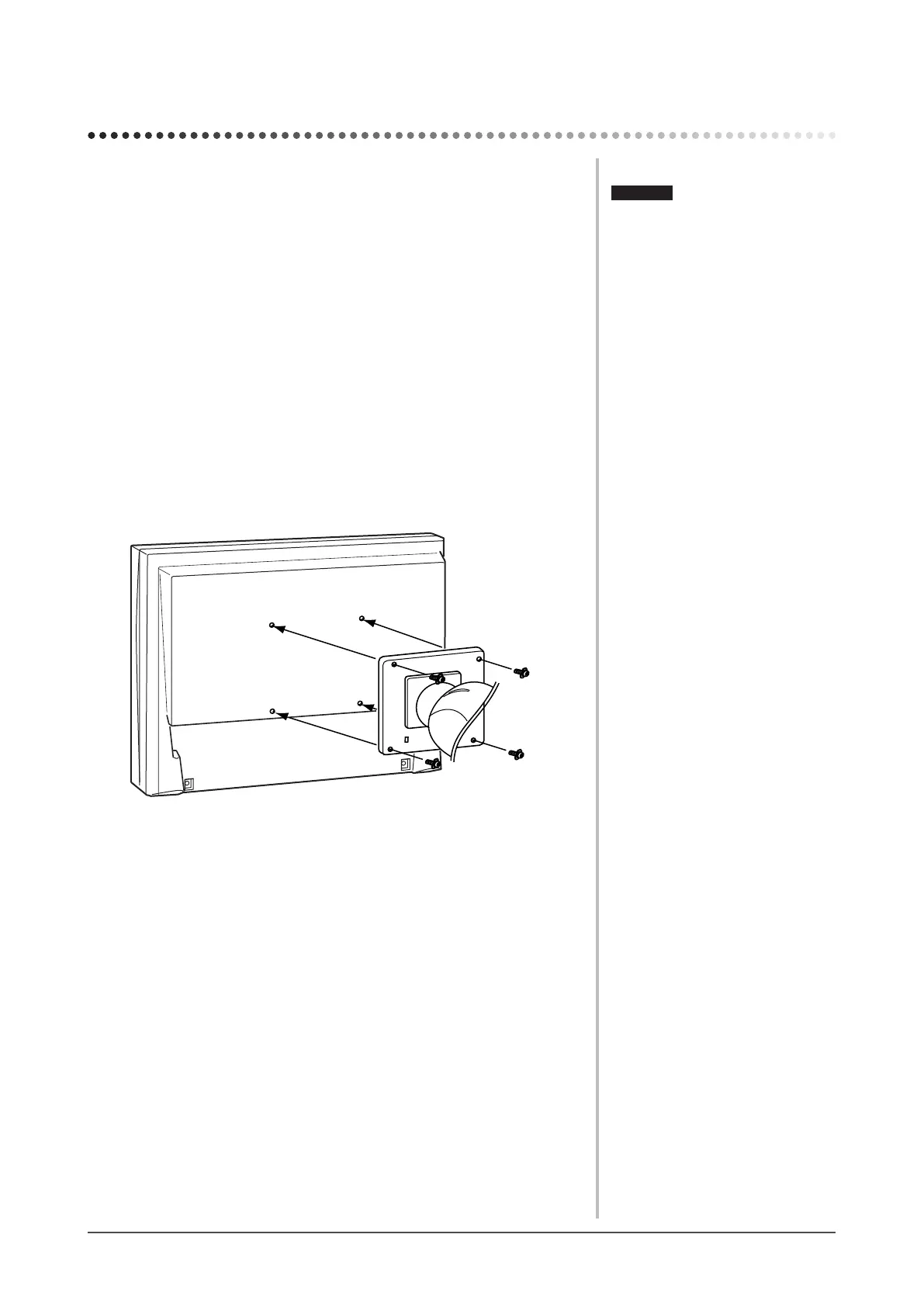

5-1 Attaching an Arm
The stand can be removed and replaced with an arm (or another stand) to be
attachedtothemonitor.UseanarmorstandofEIZOoption.
[Attaching]
1
Lay the LCD monitor on a soft cloth spread over on a stable
surface with the panel surface facing down.
2
Remove the stand. (Prepare a screwdriver.)
Unscrew the four screws securing the unit and the stand with the
screwdriver.
3
Attach the monitor to the arm or stand.
Securethemonitortothearmorstandusingthescrewsspeciedinthe
user’smanualofthearmorstand.
Attention
• When attaching an arm or stand,
follow the instructions of their user’s
manual.
• When using another manufacturer’s
armorstand,conrmthefollowingin
advance and select one conforming to
theVESAstandard.
– Clearance between the screw holes:
100 mm × 100 mm
–Thicknessofplate:2.6mm
– Strong enough to support weight of
the monitor unit (except the stand)
andattachmentssuchascables.
 Usethescrewsasdescribedbelow.
– Tilt stand
EZ-UP stand
Free
mount type:
The screws supplied with this
monitor (M4 × 12mm)
–Heightadjustablestand:
 The
screwsxingthestandtothe
monitor
• When using an arm or stand, attach it
to meet the following tilt angles of the
monitor.
– Up 45 degrees, down 45 degrees
(horizontal display, and vertical
display rotated 90 degrees
clockwise)
• Connect the cables after attaching an
arm.
