Reference Manual
00809-0100-4108, Rev BA
Section 3: Hardware Installation
March 2014
Hardware installation

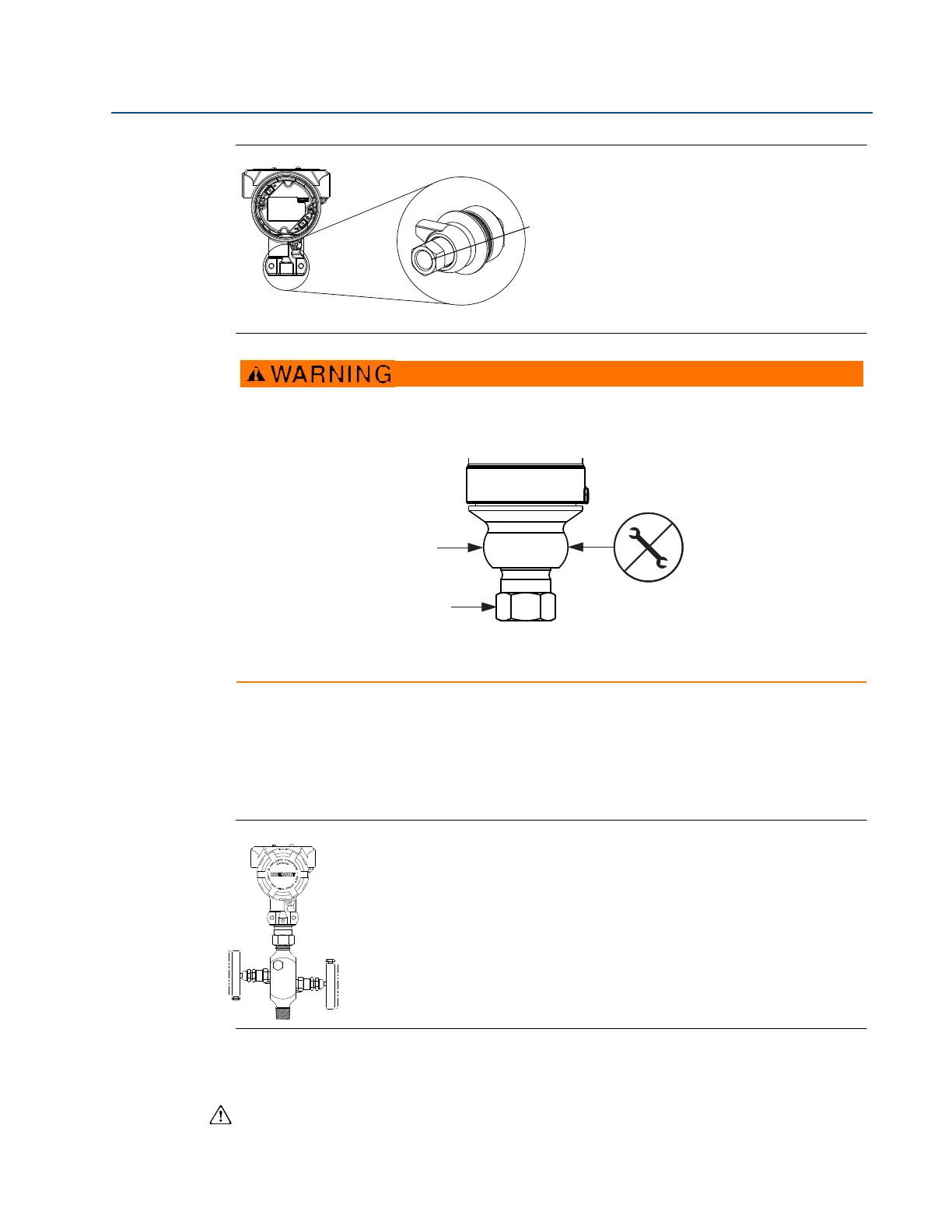

Figure 3-5. Inline gage low side pressure port
A. Low side pressure port (atmospheric reference)
3.5 Rosemount 306 Manifold
The 306 Integral Manifold is used with the Rosemount 2088 in-line transmitters to provide
block-and-bleed valve capabilities of up to 10000 psi (690 bar).
Figure 3-6. Manifolds
3.5.1 Rosemount 306 Integral Manifold installation procedure
Assemble the 306 Manifold to the Rosemount 2088 In-line transmitter with a thread sealant.
Do not apply torque directly to the sensor module. Rotation between the sensor module
and the process connection can damage the electronics. To avoid damage, apply torque
only to the hex-shaped process connection.
A. Sensor Module
B. Process Connection
A
A
B
Rosemount 2088 and 306
In-line
