Local Operator Interface
102

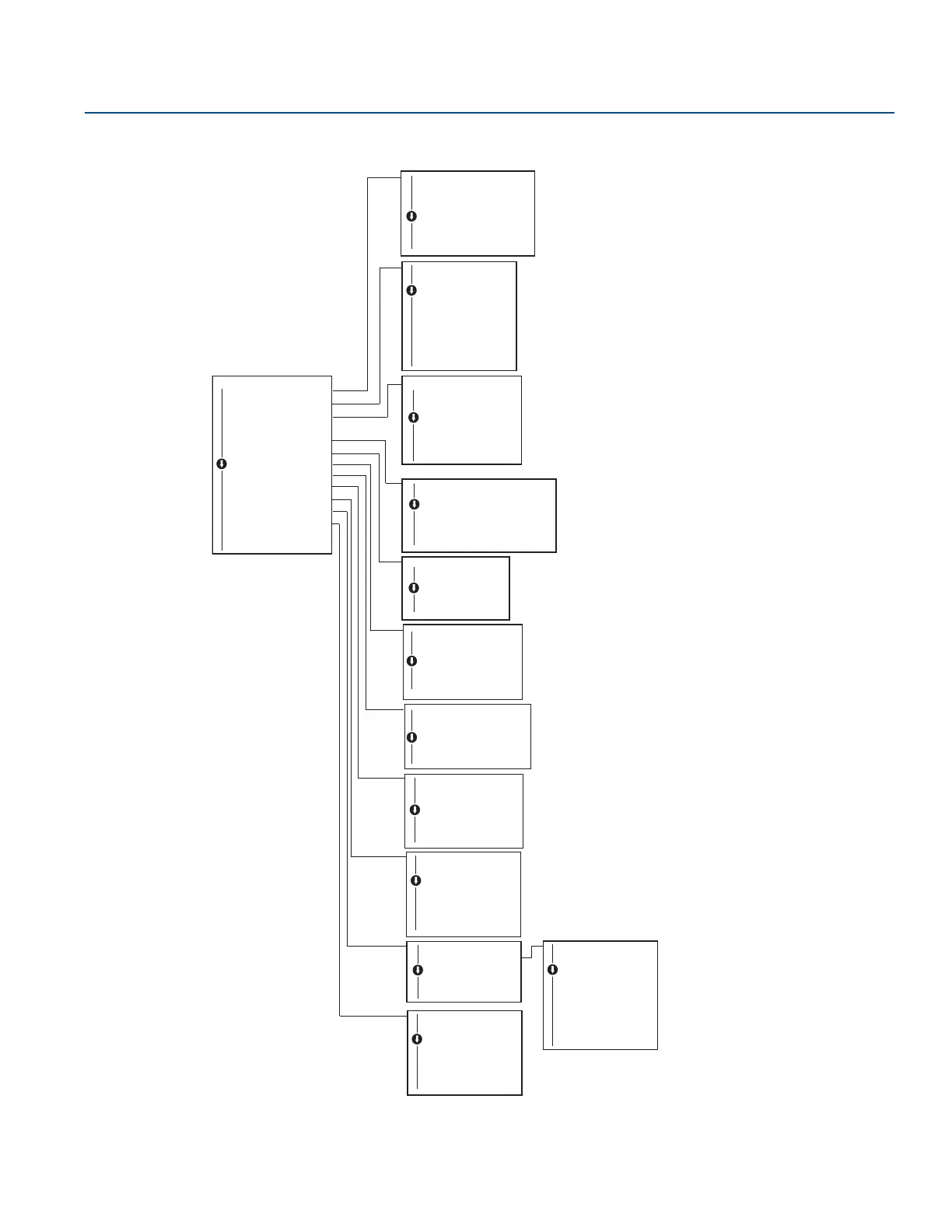

C.6 LOI menu tree – extended menu
PASSWORD
PASSWD ENABLE
CHANGE PASSWD
BACK TO MENU
EXIT MENU
HOT BACK CONFIG
HOT BACK MODE
HOT BACK PV
HOT BACK RESET
BACK TO MENU
EXIT MENU
CALIBRAT
SENSOR 1 CALIB
SENSOR 2 CALIB
ANALOG TRIM
FACTORY RECALL
BACK TO MENU
EXIT MENU
DAMPING
PV DAMP
SENSOR 1 DAMP
SENSOR 2 DAMP
DIFFRNTL DAMP
AVERAGE DAMP
1ST GOOD DAMP
BACK TO MENU
EXIT MENU
VARIABLE MAP
RE-MAP PV
RE-MAP 2V
RE-MAP 3V
RE-MAP 4V
BACK TO MENU
EXIT MENU
SIMULATE
SIMULATE SNSR 1
SIMULATE SNSR 2
END SIMUL
BACK TO MENU
EXIT MENU
EXTENDED MENU
CALIBRAT
DAMPING
VARIABLE MAP
TAG
ALRM SAT VALUES
PASSWORD
SIMULATE
HART REV
HOT BU CONFIG
DRIFT ALERT
TC DIAG CONFIG
MIN MAX TRACK
BACK TO MENU
EXIT MENU
ALARM SAT VALUES
ROSEMNT VALUES
NAMUR VALUES
OTHER VALUES
BACK TO MENU
EXIT MENU
HART REV
HART REV 7
HART REV 5
BACK TO MENU
EXIT MENU
CONFIG SNSR 1
SENSOR 1 MODE
TRIGGER CONFIG
TRIGGER VIEW
SNSR OHM VIEW
BASELINE RE-SET
BASELINE VIEW
BACK TO MENU
EXIT MENU
DRIFT ALERT
DRIFT MODE
DRIFT LIMIT
DRIFT UNITS
DRIFT DAMP
BACK TO MENU
EXIT MENU
MIN MAX TRACK
MIN-MAX MODE
PARAM CONFIG
VIEW VALUES
RESET VALUES
BACK TO MENU
EXIT MENU
TC DIAG CONFIG
CONFIG SNSR 1
CONFIG SNSR 2
BACK TO MENU
EXIT MENU
