Section 3 • Installation
VSS/VSR/VSM/VSH/VSSH Compressor • Installation, Operation and Service Manual • Emerson • 35391S
Bareshaft Compressor Center of Gravity (Models 291-2101)

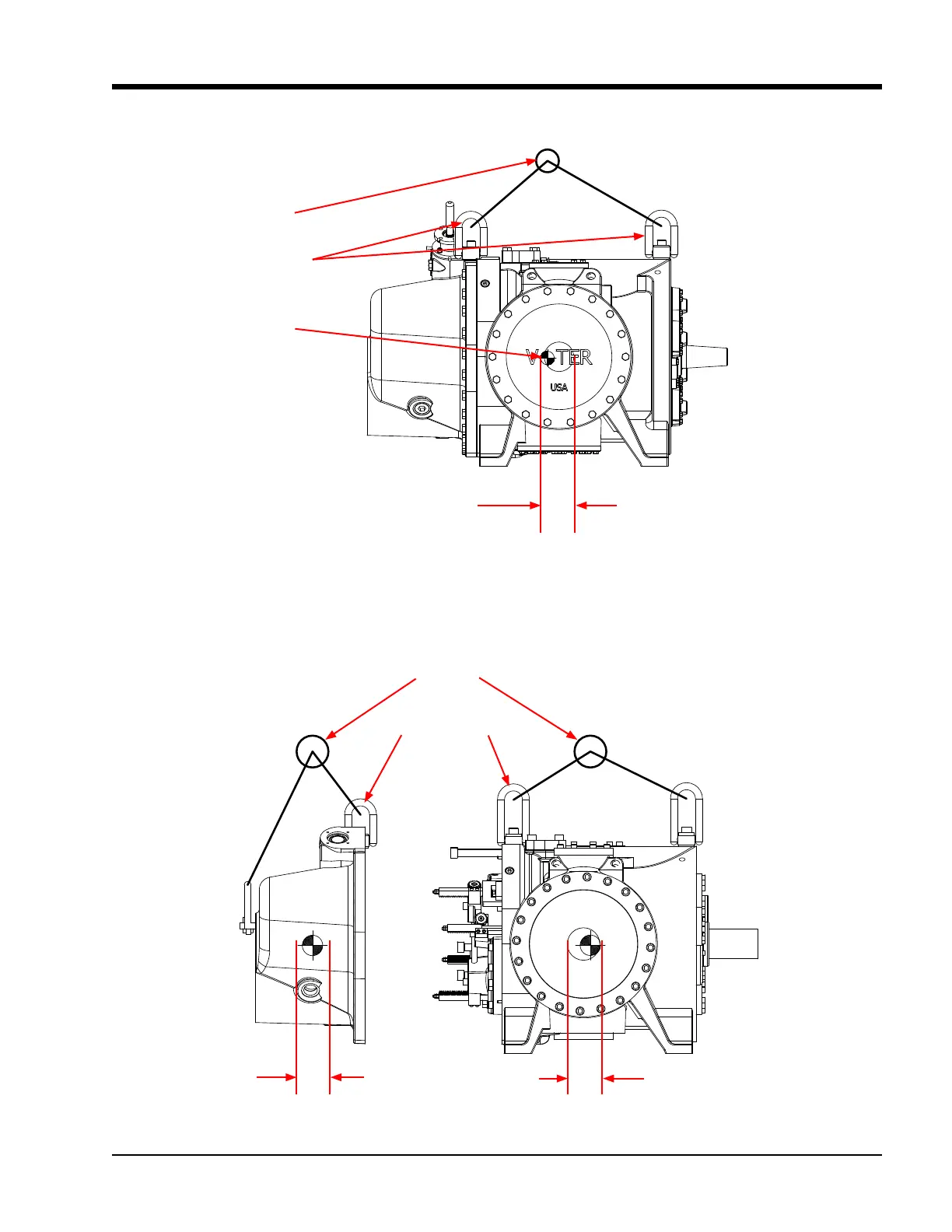

Figure 3-3. Bareshaft Compressor Assembly Center of Gravity (Models 291-2101)
Model 1551-2101 Shown
Center of
Gravity
Main Lift
Point
Lifting Eyes
Figure 3-4. Bareshaft Compressor Center of Gravity - Discharge Manifold and Main
Compressor Assembly (Models 291-2101)
Main Lift
Point
Lifting Eyes
Discharge
Manifold
Main Compressor
Assembly
Center of Gravity Range
Center of gravity may differ slightly between models 291-2101. Adjust main lift point
within the range to keep bareshaft compressor as leveled as possible when lifting.
Center of Gravity Range
