Connect Using the Envoy-S Local Interface
The Envoy-S relays data to Enlighten using an Internet connection. However, even if there is no active
Internet connection, you can communicate directly with the Envoy-S using the Ethernet port and a
personal computer or mobile device with a web browser. With your computer or mobile device connected
to the same LAN (local area network) as the Envoy-S, you can access the Envoy-S interface.
1. Use the Envoy’s built-in Wi-Fi or connect an Ethernet cable between a computer and the
Envoy-S.
2. Open an Internet browser application on a computer or mobile device connected to the same
LAN as the Envoy-S.
3. In the browser address window, enter http://envoy.local to view system details and status.
If there are additional Envoy-S units on the network, you can access them by entering the
following strings in the browser window:
http://envoy-2.local
http://envoy-3.local, and so on

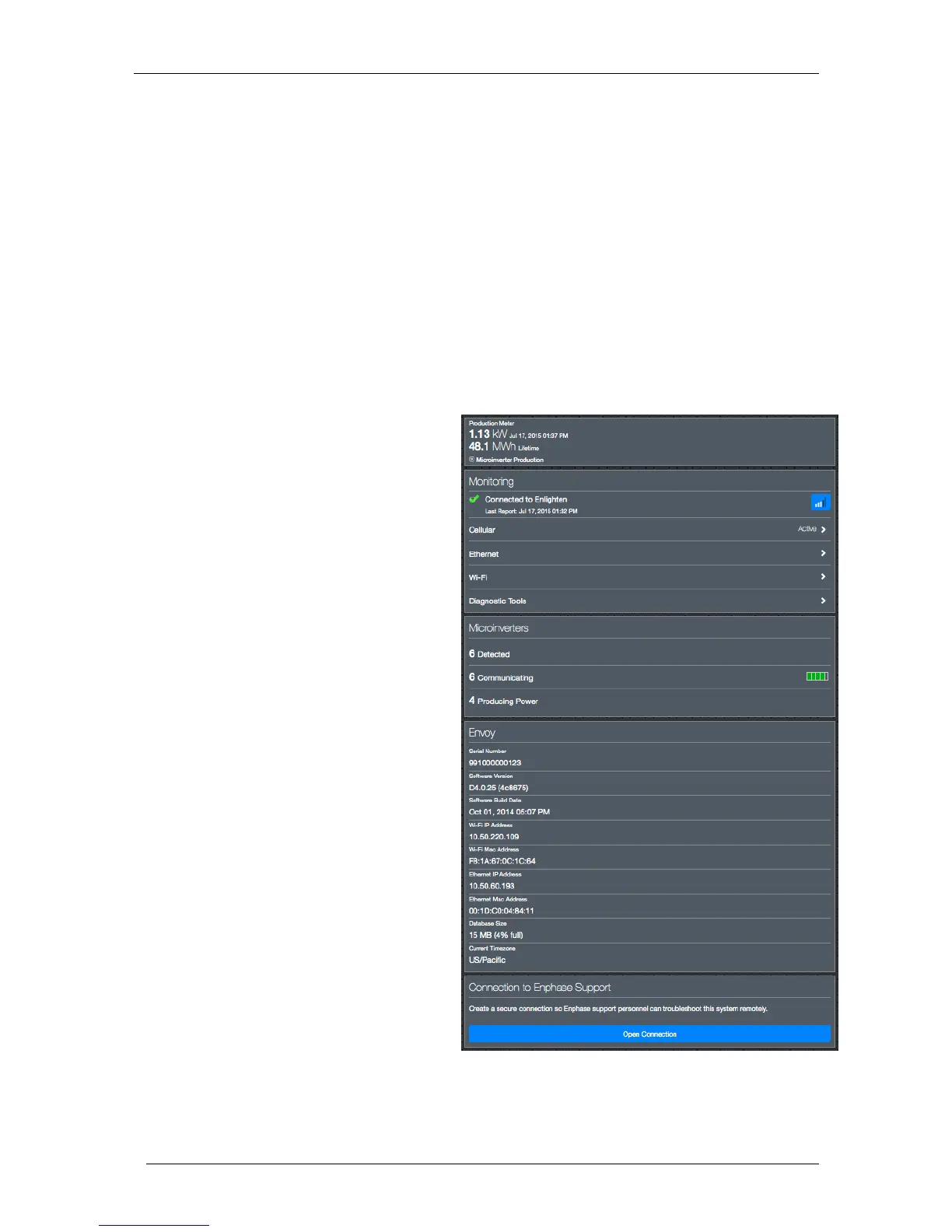

Once the browser has successfully
connected with the Envoy-S, the home
screen is displayed in the browser
window.
View Production Readings
The production readings at the top of the pane
show current and lifetime production values.
The first value shows today’s production, while
the second shows the total production for the
lifetime of the system.
If your system uses an Envoy-S Metered
gateway, it displays production meter
readings. You can also view production
as reported by the microinverters by
selecting the arrow to the left of the
words Microinverter Production.
If your system uses an Envoy-S
Standard gateway, the system displays
production values reported by the
microinverters.
View or Change Monitoring Settings
Under Monitoring, you can view web
communication status.
To access the Cellular, Wi-Fi, Ethernet or
Diagnostic Tools pages, select the > to the
right of the desired page name. You will be
prompted to enter the following login
credentials:
Username: envoy
Password: nnnnnn (where nnnnnn are the last six digits of the Envoy-S serial number)
