Epiroc HM Series User Manual

Safety and operating instructions
26 © Construction Tools GmbH | 3390 5149 01 | 2020-09-22
Original Instructions
%
50
60
70
80
90
100
G
F
A
C
n

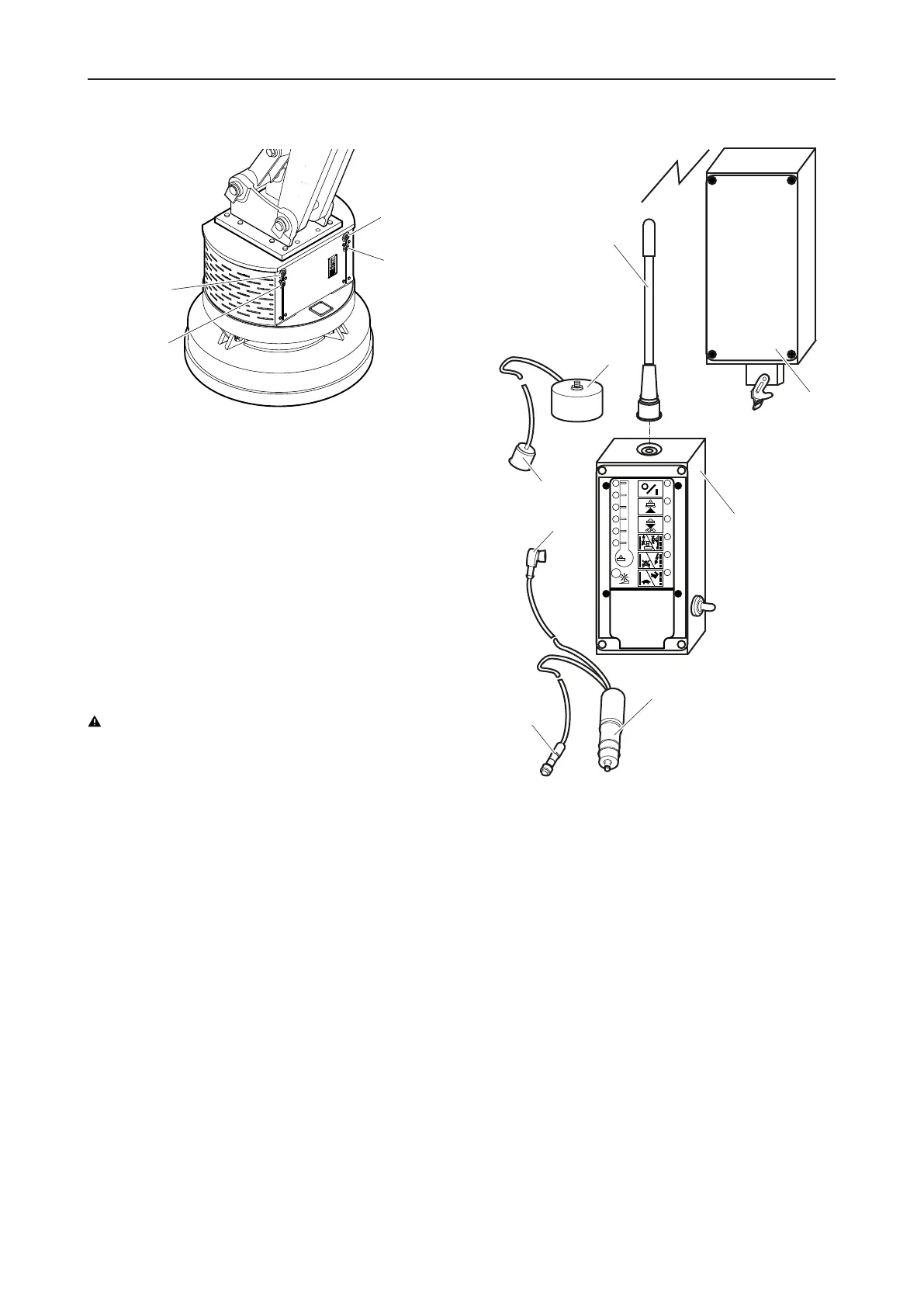

Check that the connections on the Hydro Magnet and
on the hoses are not damaged.
n
Change any damaged connections.
n
Connect the carrier's pressure line »P« in a torsion-
free manner to port »G«.
n
Connect the carrier's tank line »T« in a torsion-free
manner to port »A«.
n
Connect the carrier's hose for function »magnet
plate on/off« in a torsion-free manner to port
»F« (Not required for Hydro Magnets operated by
joystick activation.).
WARNING Hydraulic hose flailing about
Pressurised hydraulic hoses will flail about if a bolted
connection comes loose or becomes loosened. A hy-
draulic hose flailing about may cause serious injuries.
u Tighten the fastening screws with the right tightening
torque.
5.4.5 Optional equipment
The Hydro Magnets can be equipped with an optional
Joystick activation kit. For a better control the display
can be placed in the carrier cabin. A radio modem at-
tached to the Hydro Magnet transmits the generator in-
formation to the display in the carrier cabin via the an-
tenna. The antenna can either be connected directly to
the display or outside of the carrier cabin to a magnetic
antenna mount. In this case the connection via an an-
tenna cable from the magnetic antenna mount to the dis-
play is necessary. For the supply voltage the display has
to be connected to the carriers supply.
Note: You must not install the radio modem when the ra-
dio transmission could disturb other facilities or under
poor conditions for radio transmission.
%
50
60
70
80
90
100
1
2
3
4
5
6
8
7
C
H
A
F
G
D
B
E
n
Switch off the carrier and wait about a minute for the
magnetic field to dissipate.
n
Place the display(C) in the carrier cabin in sight of
the carrier driver.
n
Fasten the display(C) with four screws, tape or mag-
nets in the carrier cabin.
n
Connect the antenna(A) directly to the display(C).
Or, if you want to place the antenna outside of the carrier
cabin:
n
Connect the antenna(A) to the magnetic antenna
mount(G).
n
Place the magnetic antenna mount(G) on the carrier
so that a good transmission to the Hydro Magnet is
possible.
n
Connect the antenna cable(H) to the display(C).
