Epson PowerLite EB-L210SF User Manual

158

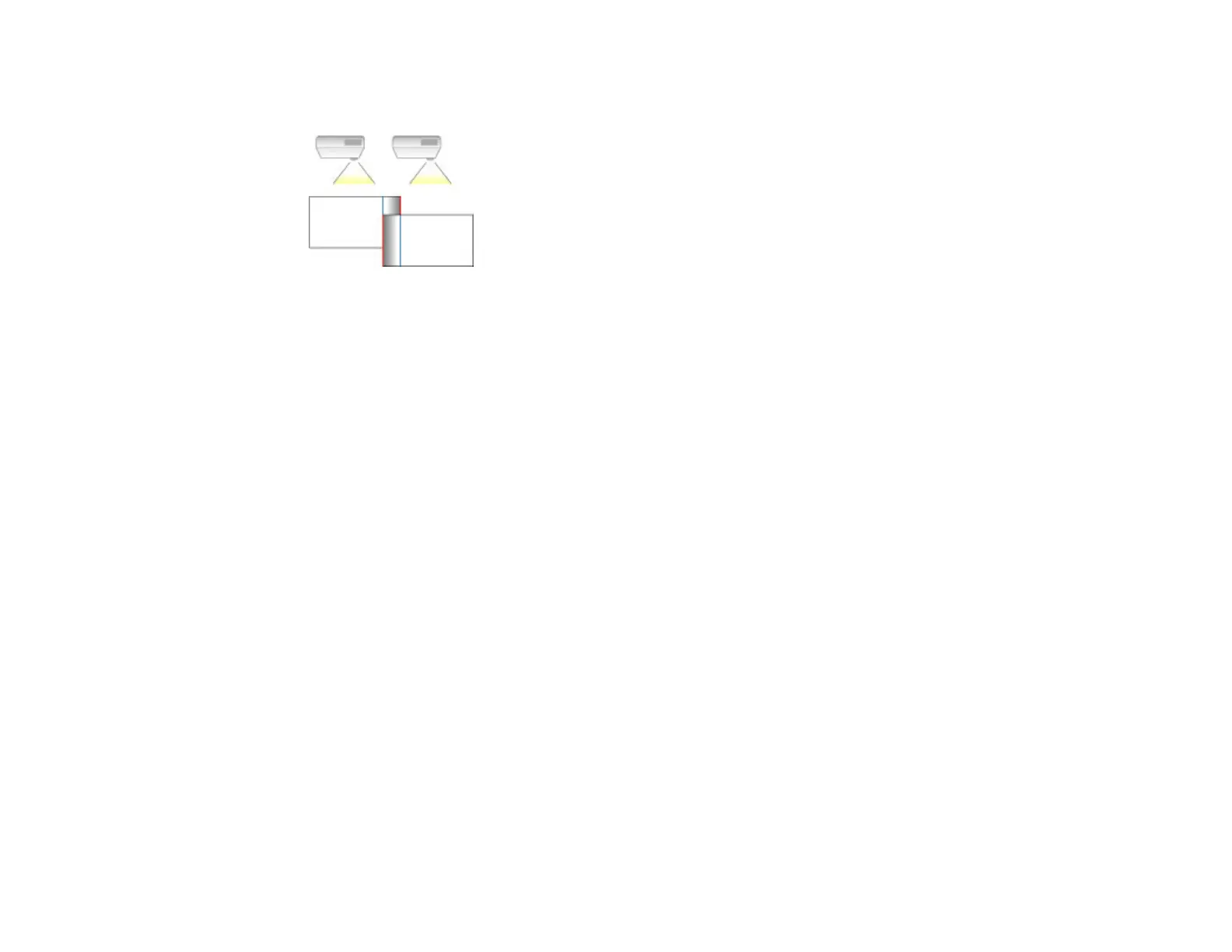

9. Select the Blend Range setting and use the arrow buttons to select the width of the blended area so
that the displayed guides are at the edges of the overlapping area between the two images.
Note: If you created a unified image area using the Edge Blending feature, set the Blend Range
setting to 300.
10. Press Esc to go back to the previous screen.
11. Select the Blend Curve setting and select a gradient for the shaded area on the projectors.
12. When the edges are blended, turn off the Line Guide and Pattern Guide settings on each projector
to check the final settings.
13. When you are finished, press the Menu button.
If the blended area does not overlap exactly, correct the shape of the blended area using Point
Correction.
Parent topic: Using Multiple Projectors
Matching the Image Colors
You can match the display color of multiple projectors that will project next to one another (EB-L210SF).
Turn on all the projectors so you can properly adjust the color of the combined screen.
1. Press the Menu button.

Epson PowerLite EB-L210SF Specifications

General

DVI port	No
Microphone in	Yes
Audio (L/R) in	1
Composite video in	-
Serial interface type	RS-232C
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
VGA (D-Sub) ports quantity	3
Matrix size	0.62 \
Heat dissipation	884 BTU/h
Number of colors	1.07 billion colors
White light output	4000 ANSI lumens
Native aspect ratio	16:9
Projection technology	3LCD
Contrast ratio (dynamic)	2500000:1
Screen size compatibility	55 - 125 \
Keystone correction, horizontal	-15 - 15 °
Video color modes	Blackboard, Cinema, DICOM simulation mode, Dynamic, Multi-projection, Presentation, sRGB
Supported video modes	1080p
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Noise level	37 dB
Country of origin	Philippines
Noise level (economic mode)	27 dB
Light source type	Laser
Service life of light source	20000 h
Service life of light source (economic mode)	30000 h
Color depth	10 bit
Focus	Manual
Throw ratio	0.45 - 0.61:1
Placement	Ceiling, Desktop, Wall
Product type	Short throw projector
Product color	White
Market positioning	Portable
Cable lock slot type	Kensington
Supported network protocols	HTTPS, IPv4, IPv6, SNMP, ESC/VP.net, PJLink
Cord length	1.8 m
Power source	AC
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power consumption (standby)	0.5 W
Power consumption (typical)	201 W
Power consumption (economy mode)	191 W
RMS rated power	16 W
Cables included	AC, HDMI
Bundled software	EasyMP Multi PC Projection, Epson Projector Content Manager, Epson Projector Management
Storage temperature (T-T)	-10 - 60 °C
Storage relative humidity (H-H)	10 - 90 %
Operating relative humidity (H-H)	20 - 80 %

Weight and Dimensions

Depth	337 mm
Width	325 mm
Height	90 mm
Weight	4600 g
