EPSON Stylus C110/C120/D120 Revision B
DISASSEMBLY/ASSEMBLY Disassembling Printer Mechanism 102

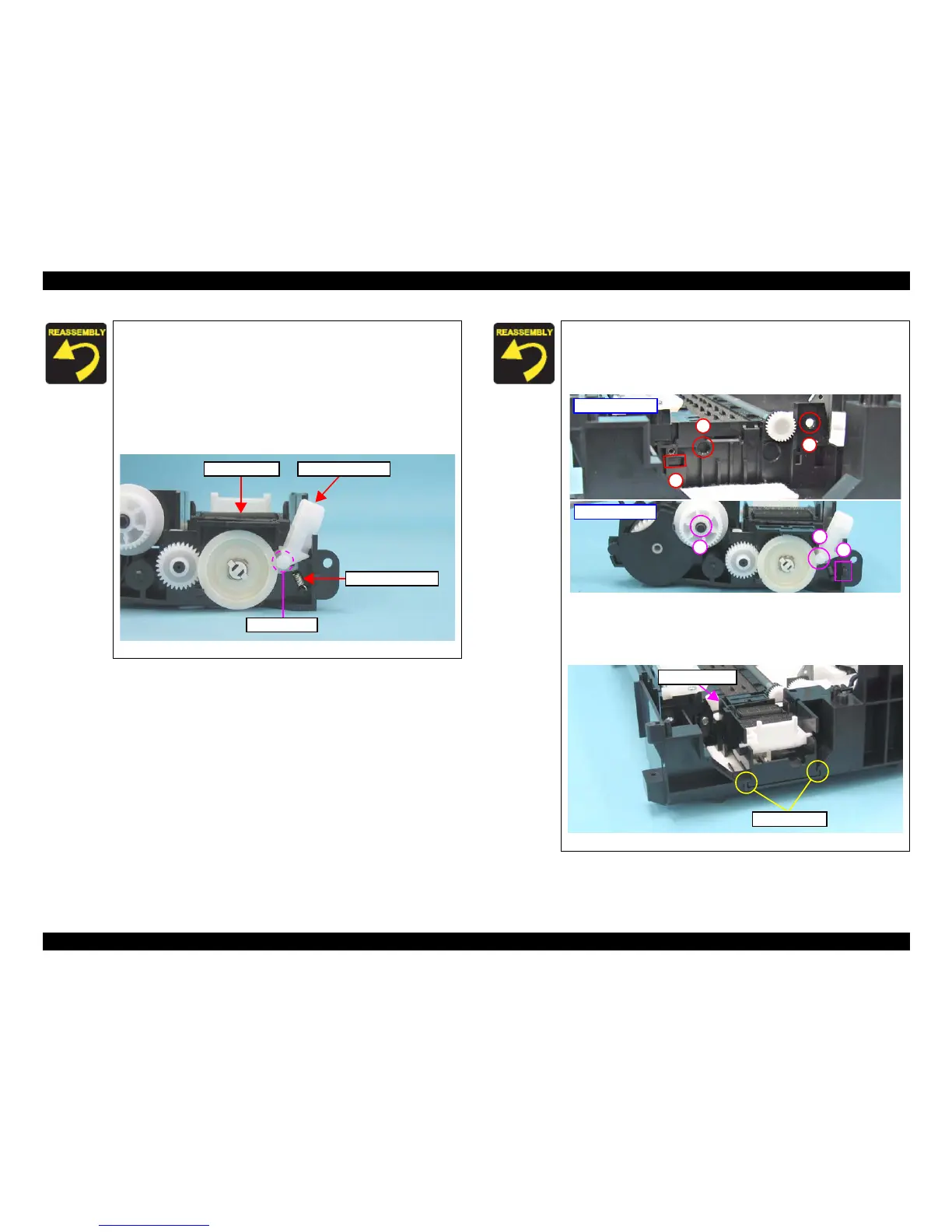

 If the Carriage lock lever comes off, reassemble it following
the steps below.
1. Attach the one end of the Extension Spring 0.8 to the hook
of the Carriage Lock Lever.
2. Attach the another end of the Extension Spring 0.8 to the Ink
System Unit.
3. Insert the dowel (x1) of the Carriage Lock Lever into the hole
(x1) of the Ink System Unit.
Figure 4-76. Installing Carriage Lock Lever
Carriage Lock Lever
Extension Spring 0.8
Ink System Unit
Dowel and Hole
 When installing the Ink System Unit, pay attention to the
following instructions.
• Align the dowels (x3) of the Ink System Unit with the
positioning holes (x3) of the Base Frame.
Figure 4-77. Installing Ink Stem Unit (1)
• Align the ribs (x2) of the Ink System Unit with the grooves
(x2) of the Base Frame.
Figure 4-78. Installing Ink System Unit (2)
Base Frame Side
1
2
3
Ink System Side
1
2
3
Rib and Groove
Ink System Unit

Epson Stylus C110 Specifications

Print Quality

maximum resolution	5760 X 1440 dpi
minimum ink droplet volume	3 pl

Print Speed

black text memo (A4)	Approx. 37 ppm (Draft) / 25 ppm (Default)
colour text memo (A4)	Approx. 20 ppm (Draft) / 11 ppm (Default)
photo (4R/4x6”)	Approx. 35 sec per photo (Draft W/Border)

Ink Cartridges

black ink cartridge (T0731H)	2 cartridges 740 pages
black ink cartridge (T0731)	2 cartridges 470 pages
magenta ink cartridge (T0733)	350 pages (Composite Yield)

Paper Handling

paper feed method	Friction Feed
paper hold capacity	120 sheets, A4 Plain paper
maximum paper thickness	0.33 mm

Electrical Specifications

rated voltage	AC 220-240V
rated frequency	50~60 Hz
power consumption	Approx. 15W (per ISO10561 Letter Pattern)

Weight and Dimensions

weight	3.9 kg
height	161 mm
width	240 mm
depth	435 mm
