7 • Maintenance and servicing
80116-941_V24392
2023-03
No leaks at 5 bar input pressure
Testing and measuring equipment
Test setup

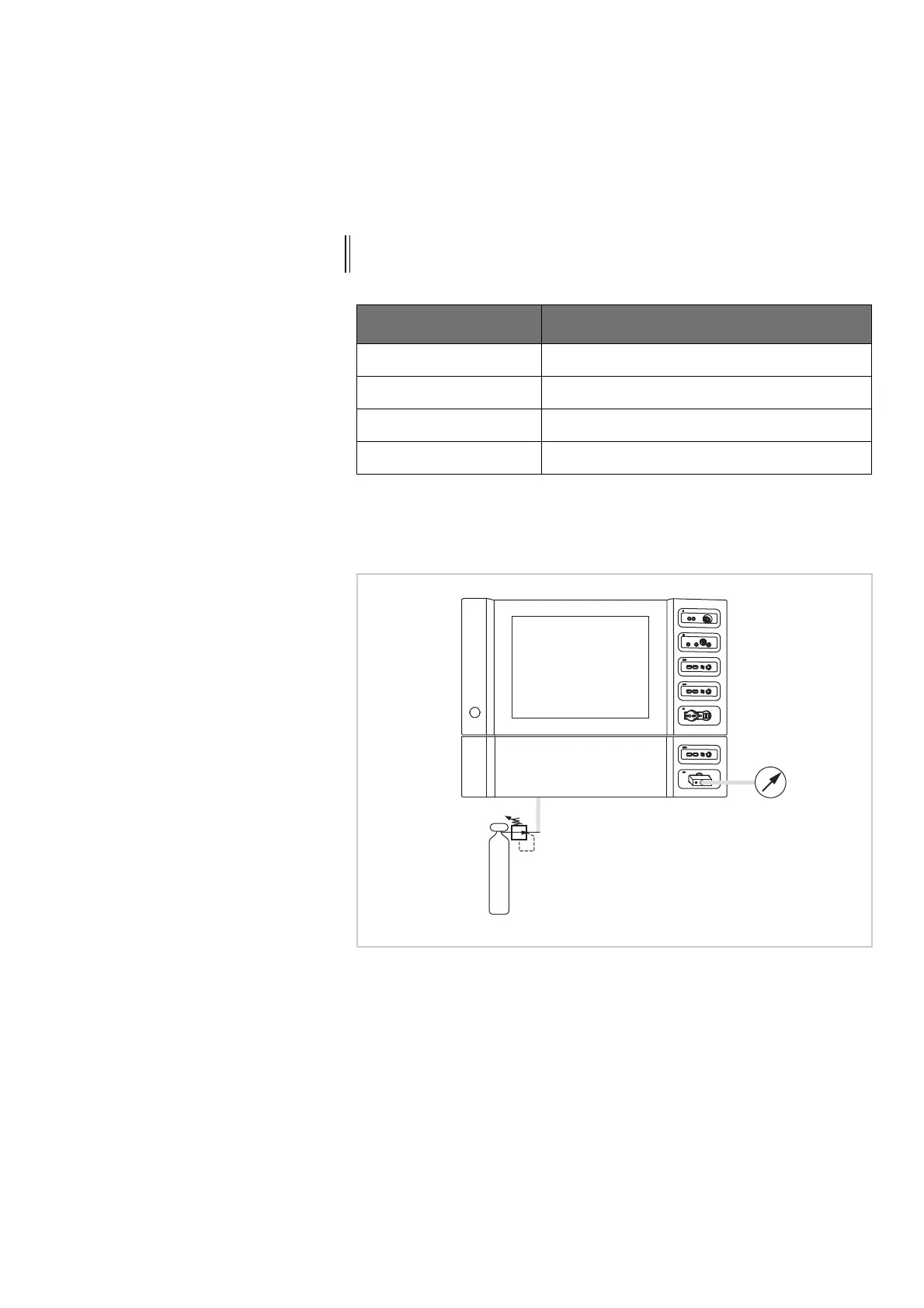

Fig. 7-4
• The test specimen is connected via the VIO 3 electrosurgical unit to the
power supply.
• The argon gas bottle is connected to the test specimen.
• The FiAPC test adapter is connected to the APC socket. The manome-
ter is connected to the gas output of the test adapter.
IMPORTANT! For this test only Erbe pressure reducers may be used. For article num-
bers see chapter "Testing and measuring equipment".
Erbe Art. No. Description
20100-108 Manometer
20100-175 FiAPC test adapter
20134-XXX
1
1. dependent on bottle connector.
Pressure regulator
– Argon gas bottle
