ESAB Versotrac EWT 1000 User Manual

4 INSTALLATION
0463 613 101
- 19 -
© ESAB AB 2020

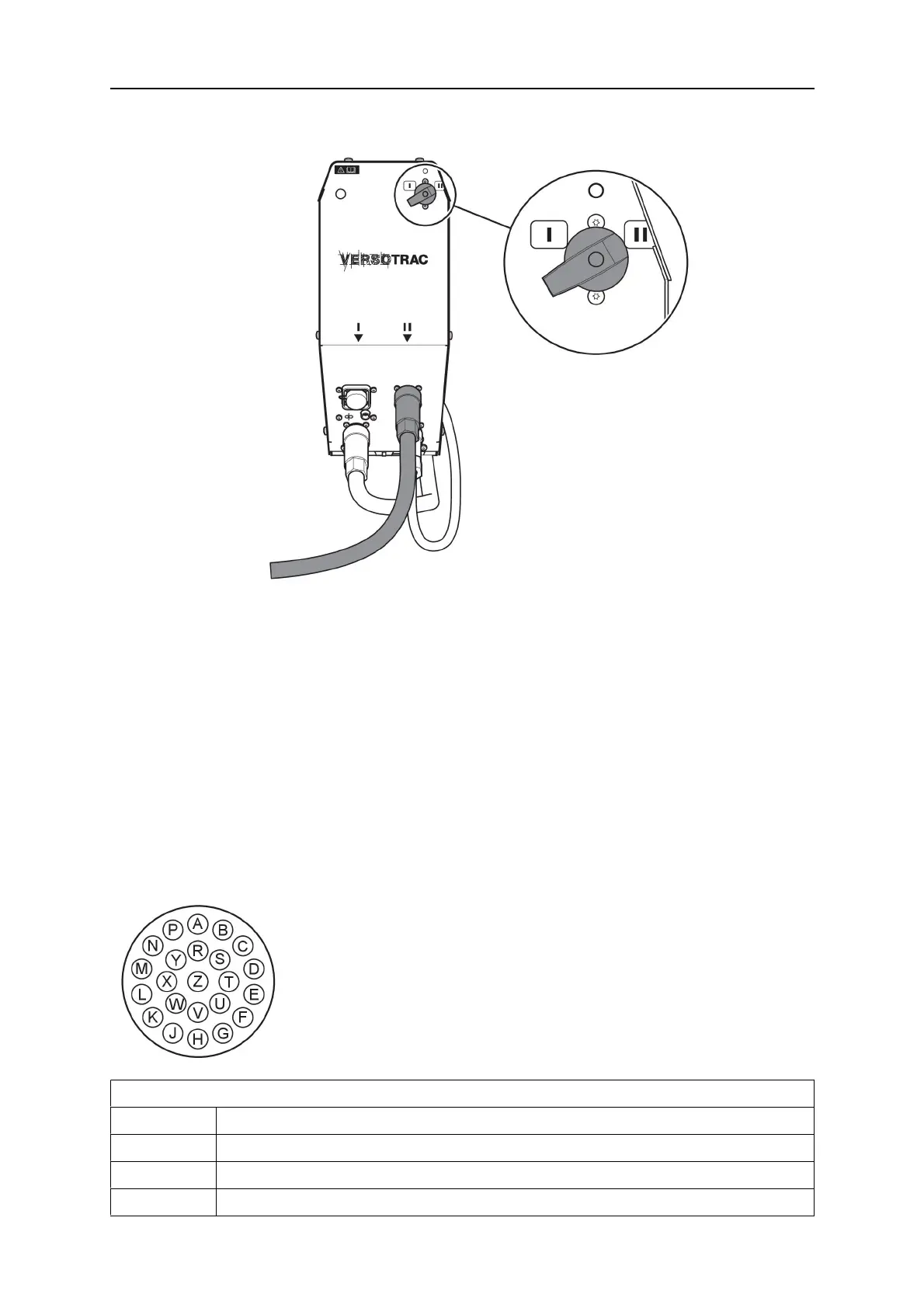

4.5.2 Connecting to a compatible DC analog power source
Connect the interconnection cable to the connector marked "II".
Interconnection cable between analog-based ESAB power source and EAC10 control unit
are available as accessories in different lengths.
Always use the dust cover on connections where no cable is connected.
Requirements for analog power sources
• Supply 60VDC or 42VAC, 50/60Hz voltage from the welding power source or by
external means.
• Voltage feedback from negative welding terminal (for welding voltage measurement for
display in pendant).
• Start input to initiate welding, analog input (0–10VDC) for setting welding parameters
(control signal).
• 1000A/60mV shunt output for welding current measurement.
Power source connection socket XP2 pinouts
B, C 42VAC
E, F 42VAC return
J Power source negative terminal (U-)
W Power source positive terminal (U+)
