5 OPERATION
0463 613 101
- 29 -
© ESAB AB 2020
A short press of the OK button when an AC power source is connected will open
the AC settings screen. A long press of the OK button opens the WELDING MENU
settings screen.
Turn any of the knobs after welding stop to open the SET screen. The values are
shown and the SET screen is kept open.
A short press of the 1, 2, or 3 key recalls the corresponding memory slot. The SET
screen is opened and the values are displayed.
5.8.5 Set screen, digital power source
NOTE!
The available functions of the SET screen depends on the selected welding method.

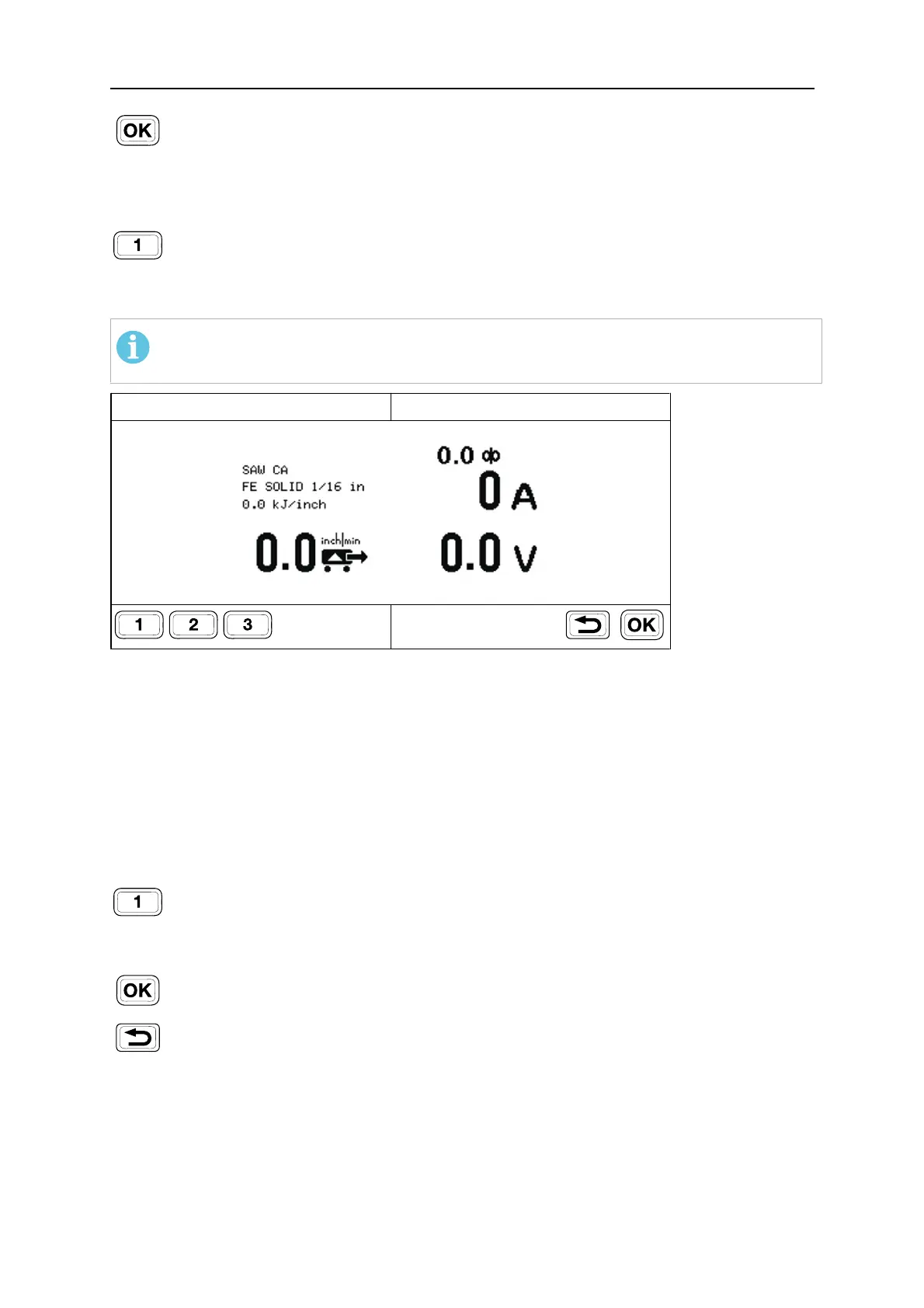

SET MEASURED
The SET screen is used to change welding settings and save settings to the memory slots
using the 1, 2, and 3 keys.
Turn any of the knobs during welding to open the SET screen from the MEASURED screen.
The values are shown for 2seconds before returning to the MEASURED screen unless any
adjustments are made.
If the SET screen is opened without ongoing welding, it will stay active. When welding starts,
the MEASURED screen is activated.
Change the welding settings by using the knob next to the value shown on the display. It is
possible to save settings for easy access.
A short press of the 1, 2, or 3 key will display the saved welding data memory
settings, set the values, and show the MEASURED screen again The welding data
memory number in use is shown on the SET tab and also with a bar above the key
with the corresponding number.
With an AC power source: A short press of the OK button opens the AC
SETTINGS screen.
A long press of the OK button opens the WELDING MENU. Return by pressing the
Back button.
