5 OPERATION
0463 613 101
- 26 -
© ESAB AB 2020

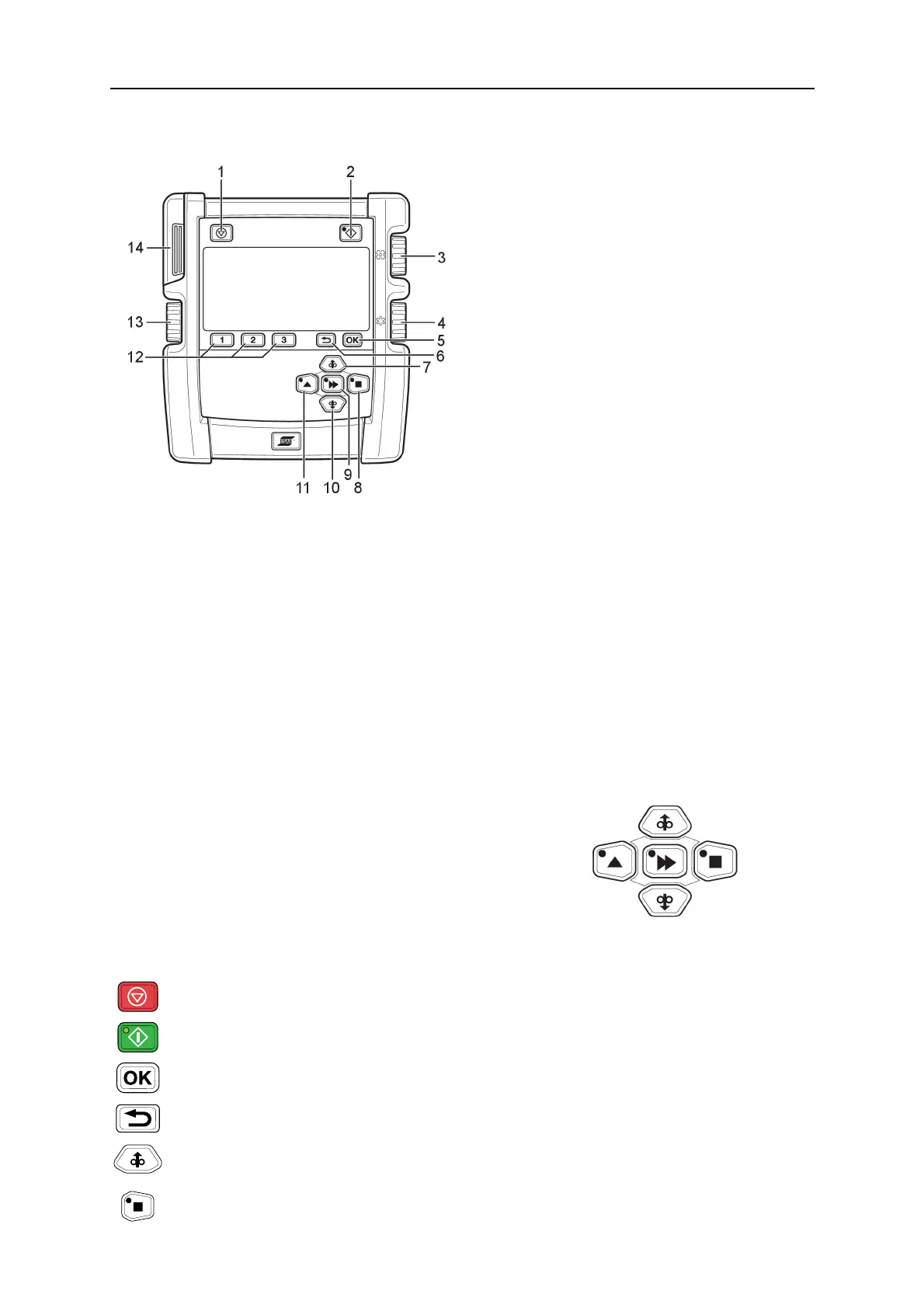

5.8 EAC10 control panel
1. Welding stop 8. Manual travel motion direction
2. Welding start 9. Fast motion
3. Welding current / Wire feed
speed/balance*
10. Manual wire feed downward
4. Arc voltage / Offset voltage* 11. Manual travel motion direction
5. OK / Setting menu 12. Memory 1, 2, 3 / Soft keys
6. Back 13. Travel speed / frequency*
7. Manual wire feed upward 14. USB connection
*Only with Aristo®1000 in AC mode.
5.8.1 Keys and knobs
The buttons are used for Up, Down, Right, Left, and
Confirm (middle button) during configuration and
setting.
Up
Left Right
Down
Welding stop (1). Stops all travel motions, all motors, and welding current.
Welding start (2). The LED is lit when welding is in progress.
The OK button (5) is used to confirm a selection.
The Back button (6) is used to go back one step in the menu.
Press the Manual wire feed upward button (7) to feed the wire upward. The
wire is fed as long as the button is pressed.
Press the Travel motion (8) button to drive in the welding direction of the
symbol indicated on the weld equipment.
