5 OPERATION
0463 613 101
- 27 -
© ESAB AB 2020

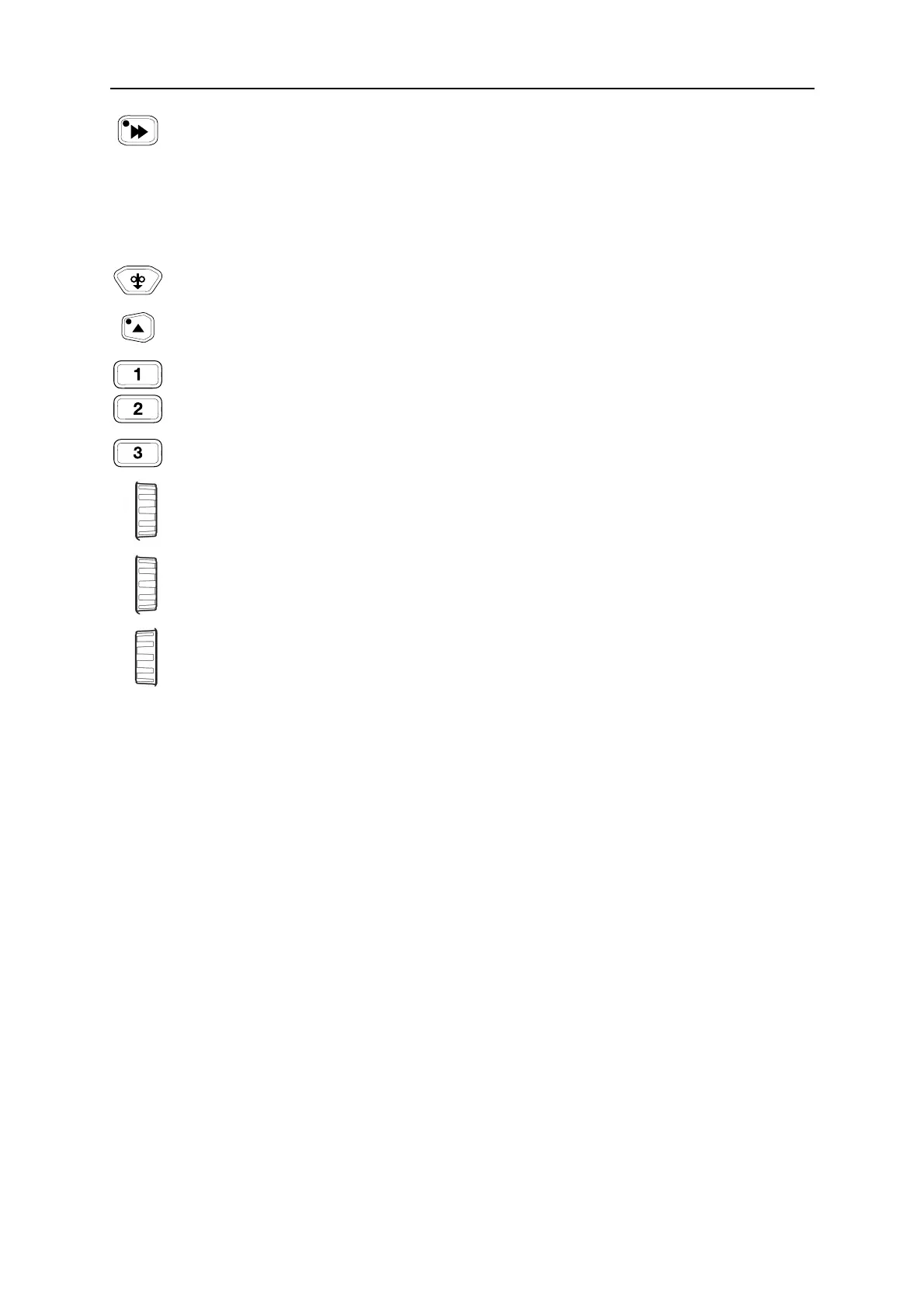

The Fast motion button (9) is used together with other buttons to increase
speed. Press the button to activate fast motion and then press the manual
wire feed button (7, 10) or the travel motion (8, 11) button. The LED on the
fast motion button is lit while fast motion is activated. Press again to
deactivate fast motion.
During configuration, it is possible to confirm and save a value and return to
previous screen using the Fast motion button.
Press the Manual wire feed downward button (10) to feed the wire
downward. The wire is fed as long as the button is pressed.
Press the Travel motion (11) button to drive in the welding direction of the
symbol indicated on the weld equipment.
Three different welding data memories per welding head can be stored in the
control panel memory using soft keys 1, 2, and 3 (12). The soft keys also have
various functions depending on which menu is currently in use. The current
function is displayed in the text in the bottom row of the display.
The welding current/ wire feed speed/ balance knob
1
(3) is used to increase
or decrease set values.
The arc voltage/ offset voltage knob
1
(4) is used to increase or decrease set
values.
The travel speed/ frequency knob
1
(13) is used to increase or decrease set
values.
1
Only with Aristo® 1000 in AC mode.
5.8.2 Initial configuration
At first startup after delivery, after a program update and after a completed reset, the control
panel requires initial configuration. The initial configuration starts automatically.
Initial configuration can also be initiated by pressing and holding OK during startup, while the
ESAB logo is shown.
It is possible for an authorized user to change the configuration in the GENERAL SETTINGS
menu.
1. Select a language using the Up/Down/Right/Left buttons. Confirm with OK or with the
middle button.
2. Select a measurement unit using the Right/Left buttons. Confirm with OK or with the
middle button.
3. Set the date using the Up/Down buttons. Change between year, month, and day with
the Right/Left buttons. Confirm with OK or with the middle button.
4. Set the time using the Up/Down buttons. Change between hours and minutes with the
Right/Left buttons. Confirm with OK or with the middle button.
5. Select a wire type using the Up/Down buttons. The wire types shown depend on the
welding head detected during startup. Confirm with OK or with the middle button.
6. Select a wire dimension using the Up/Down buttons. Confirm with OK or with the
middle button.
7. After initial configuration, the control panel continues to the SET menu.
