5. Adjust the rotation angle of the welding head, see scale next to handle.
6. Adjust the wire pressure.
7. Adjust the rotation angle of the welding head.
5.10 Work piece voltage reference brush
The Versotrac offers an alternative work piece voltage reference through a mounted brush.
The work piece voltage reference brush provides a stable work piece voltage reference for
the welding power source. The solution effectively eliminates disturbance in the arc voltage
measuring cables by providing a more stable welding arc.
This is the recommended solution for work piece reference when welding with an AC power
source with Versotrac.

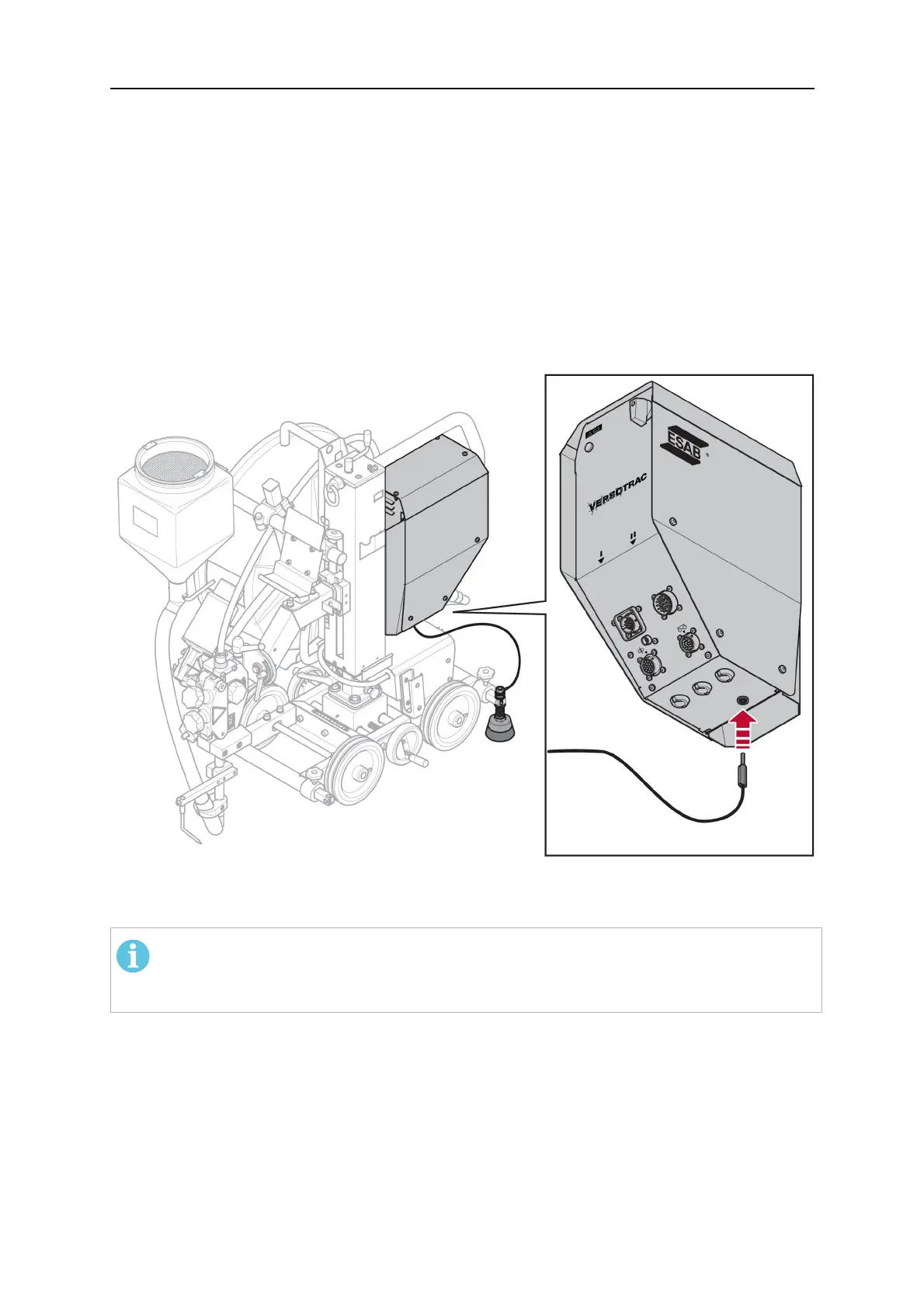

Mount the work piece voltage reference brush on any of the guide bars.
Connect the cable into the work piece voltage reference input on the control unit EAC10.
NOTE!
Control cable 0446 146 880-885 is required between the control unit EAC10 and
the power source. See "ACCESSORIES" chapter.
