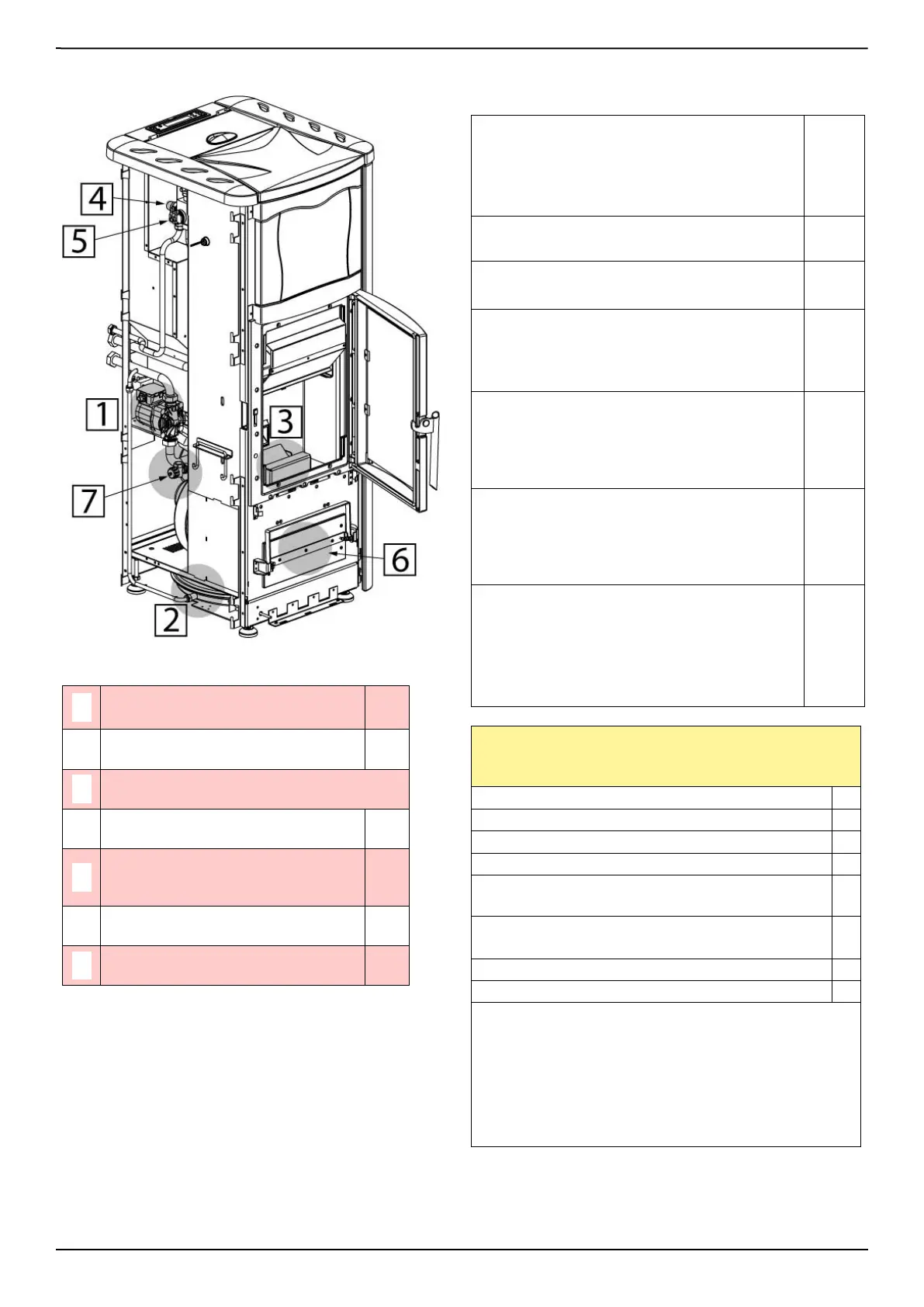

SAFETY DEVICES
12
LUCREZIA IDRO
1
Pump integrated in the thermo product
with 5 m head
yes
2
Volume of expansion vessel integrated
into thermo-product (l)
12
3
Burn pot
4
3 bar safety valve integrated into the
thermo-product
yes
5
Minimum and maximum pressure
pressure switch integrated into the
thermo-product
yes
6
Ash drawer yes
7
Load/unload cock yes
SAFETY DEVICES6.
Circuit board: intervenes directly by sending the
product into alarm conditions until complete cooling,
in the event of: breakage of ue gas motor, pellet
feed motor breakage, black out (if more than 10
seconds), no ignition
*
Door micro switch: With the door open, the burn
pot system functioning is blocked
*
Flow sensor: in the event of inadequate air ow, it
takes the machine to alarm conditions
-
2.5 A fuse: they protect the machine from
overcurrents
2.5 A
250V
F (rapid)
85°C calibrated mechanical bulb with manual
rearm: intervenes by blocking fuel feed whenever
the pellet tank t° reaches the limit of 85°C. Rearm
must be performed by qualied sta and/or the
manufacturer's technical after-sales assistance.
*
100°C calibrated mechanical bulb with manual
rearm: intervenes by blocking the fuel feed
whenever the t° of the water inside the product is
near to 100°. Rearm must be performed after the
boiler has cooled completely
*
Minimum and maximum pressure switch:
intervenes in the event of inadequate water pressure.
Rearm must be performed by qualied sta
and/or the manufacturer's technical after-sales
assistance.
*
TABLE OF SAFETY DEVICES FOR CLOSED VESSEL SYSTEM
AND NOT PRESENT IN THE PRODUCT
Safety valve *
Pump control thermostat *
Temperature indicator *
Acoustic alarm activation thermostat -
Adjustment automatic circuit breaker switch (rmware
board)
*
Water overheating automatic circuit breaker switch
(block thermostat)
*
Circulation system *
Expansion system *
Safety dissipation system incorporated with the generator
with thermal safety valve (self-activated), whenever the
appliance does not have a temperature self-adjustment
system: Not necessary as the machine has a t° self-adjusting
system and a block automatic circuit breaker switch.
During installation of the stove it is MANDATORY to adjust the
system with a manometer in order to display the water pressure.
