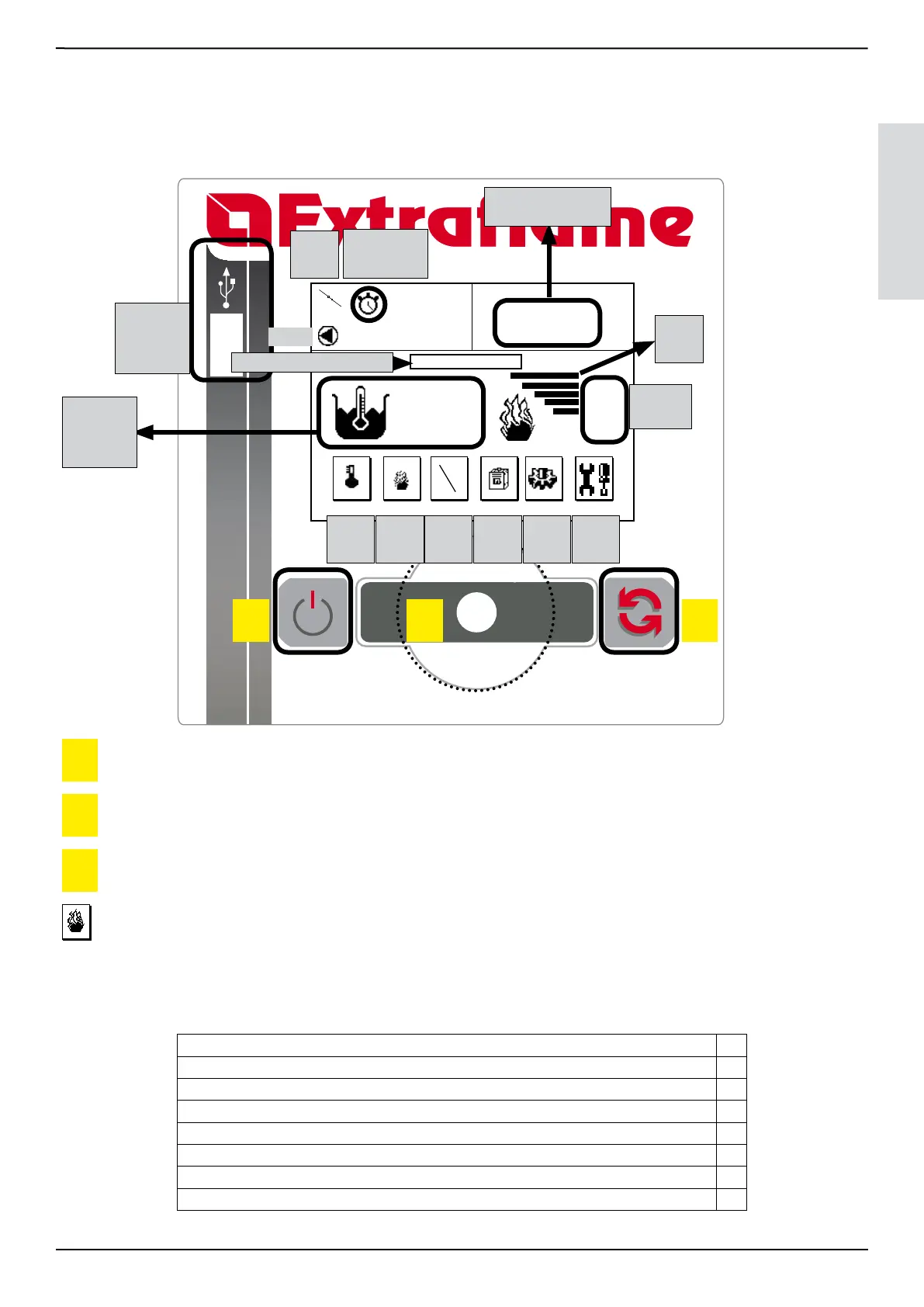

LP30 DISPLAY AND PRODUCT FUNCTIONALITY
27
ENGLISH
LP30 DISPLAY AND PRODUCT FUNCTIONALITY18.
85°C
4
29 / 04 /2010
18 : 56
STBY
SABATO
-
+
P1 P2 P3
*
WORK
Power
set
auto/man
mode
set
temper.
Inlet
USB
stby
pump
Water T°
status display
set
power
regulat..
user
status
set
user
set
installat.
day, date and time
Power
real
P1
Boiler ignition or switch-o key
P2
Encoder (wheel), by turning, select the dierent icons on the display, by pressing enter selection
P3
Multiple-function key (advancement through menus etc)
*The ame icon is not present in the OFF, START, BURN POT CLEANING, FINAL CLEANING, ALARM, RE-START STBY status
*Flashes in IGNITION mode
*Fixed in START-UP and WORK mode. During the WORK phase it displays the ame with real work power
Extraame has an optional additional board that allows the boiler the following further functions when managing the system.
The table below indicates the various possibilities that the optional can oer.
DHW Storage Management *
Puer Management *
3 heating areas *
Instant DHW option *
Puer pump or 4th heating area management *
Anti-legionella management for DHW storage *
DHW storage chrono management *
Auxiliary output management and control *
