Fastech Ezi-SPEED ESD-30-C User Manual

-43-

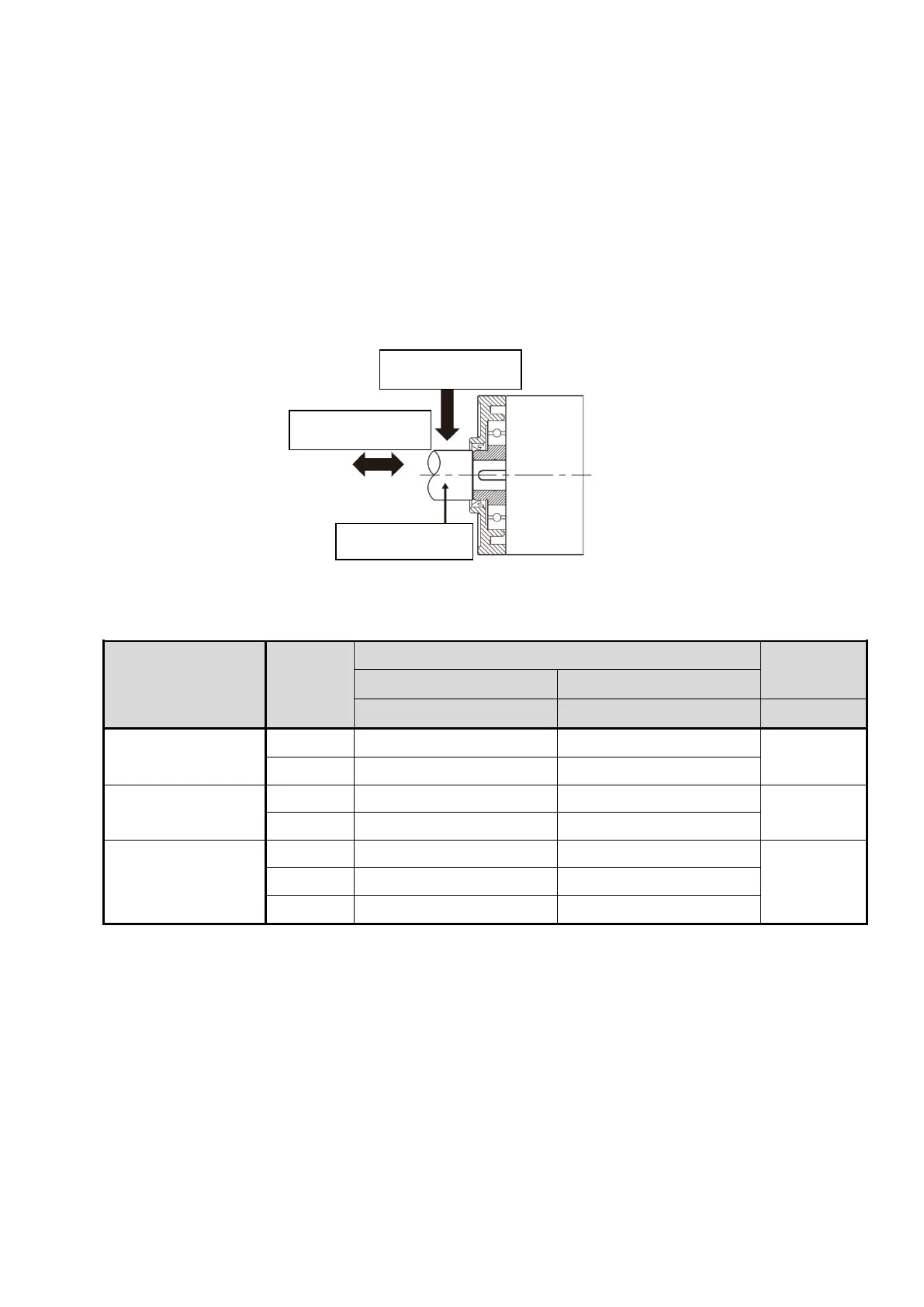

6.4.7 Permissible overhung load and permissible thrust load
Overhung load is a load on the gearhead shaft in the vertical direction like below figure. Thrust
load is a load on the gearhead shaft in the horizontal direction. Overhung load and thrust load
affects the life time or strength of shaft. So please make sure not to exceed both the permissible
overhung load and the permissible thrust load simultaneously with below chart.
▣ Permissible overhung load and permissible thrust load
Part number
Gear
Ratio
Permissible Overhung load
Permissible
Thrust load
10mm from Shaft end
20mm from Shaft end
N
N
N
ESG-60-H-R□-H
5, 10
450
370
200
15~200
500
400
ESG-80-H-R□-H
5, 10
800
660
400
15~200
1200
1000
ESG-90-H-R□-H
5, 10
900
770
500
15, 20
1300
1110
30~200
1500
1280
※ Permissible overhung load value is when motor speed is 3000rpm.
Overhung load
Thrust load
Load shaft
