7.4 Operating

7.4.1 Connecting

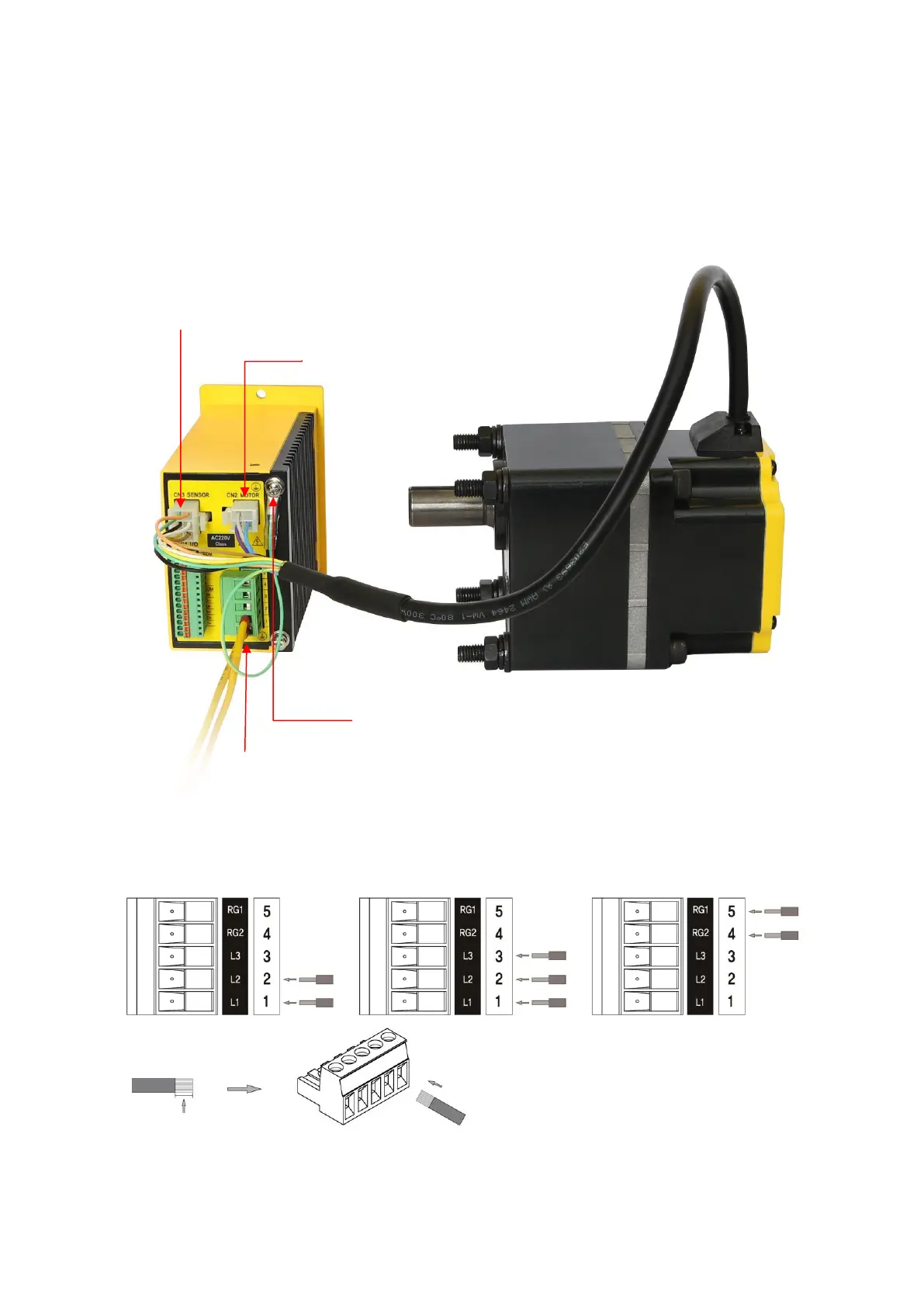

• Main power connecting : Connect AC power to CN1 accoring to the input power

Single-phase 200-240 Three-phase 200-240V Regenerative resistor

Sensor connector (6Pins)

Connect to CN3

Motor connector (4Pins)

Connect to CN2

Main power connect to CN1

Protective earth terminal

Be sure to ground

Lead wire stripping (8mm)

Insert lead wire to connector and fixing with driver
