This is where the unique domino slot principle comes in. The first hole, known as the locating hole, is
routed appropriate to the selected domino diameter. Owing to the domino in the locating hole, the joint
aligns exactly with the front edge – the joint is correctly positioned. The remaining holes are routed with
clearance as slots. This makes aligning and joining effortless; the joint is nevertheless exact, perfect
and stable. On the DF 500, three different hole widths can be selected, and two on the DF 700.
1.4.2 Selecting hole width
1.4.3 Selecting domino length and thickness
Because selection of the domino thickness determines the selection of the cutter used, you first decide on
the domino size and then employ the correct cutter (see section 1.4.4).

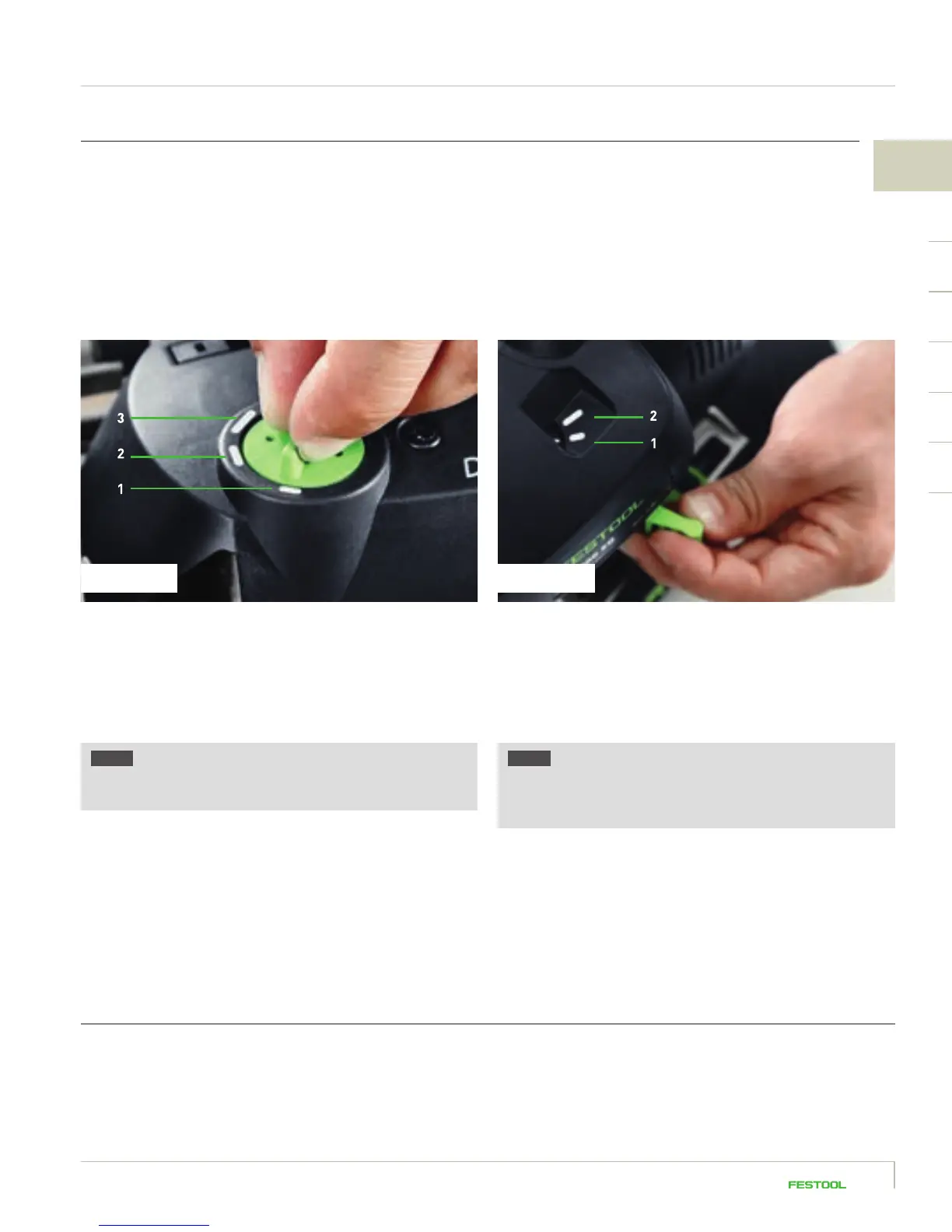

DF 500
1 The standard width, corresponding exactly to the domino
width: 13 mm plus the cutter diameter
2 The average hole width, giving the domino some clearance
(6 mm): 19 mm plus the cutter diameter
3 The largest hole width, providing a lot of clearance (10 mm):
23 mm plus the cutter diameter
NOTE Please only change the hole width by turning
the rotary switch with the motor running, but never while
actually routing.
DF 700
1 The standard width for precise routing is:
13.5 mm plus the cutter diameter
2 The hole width with clearance (3 mm) corresponds to:
16.5 mm plus the cutter diameter
NOTE On the DF 700 the corresponding hole width is set
using the adjusting lever on the left of the machine – the
specified hole width can be seen on the display on the top
of the machine.
