One of the greatest time advantages of working
with DOMINO joining machines is the result of
working without the need for complex measuring
or marking – the machine can be positioned
quickly and accurately by using stop catches
(DF 500) or stop pins (DF 700).

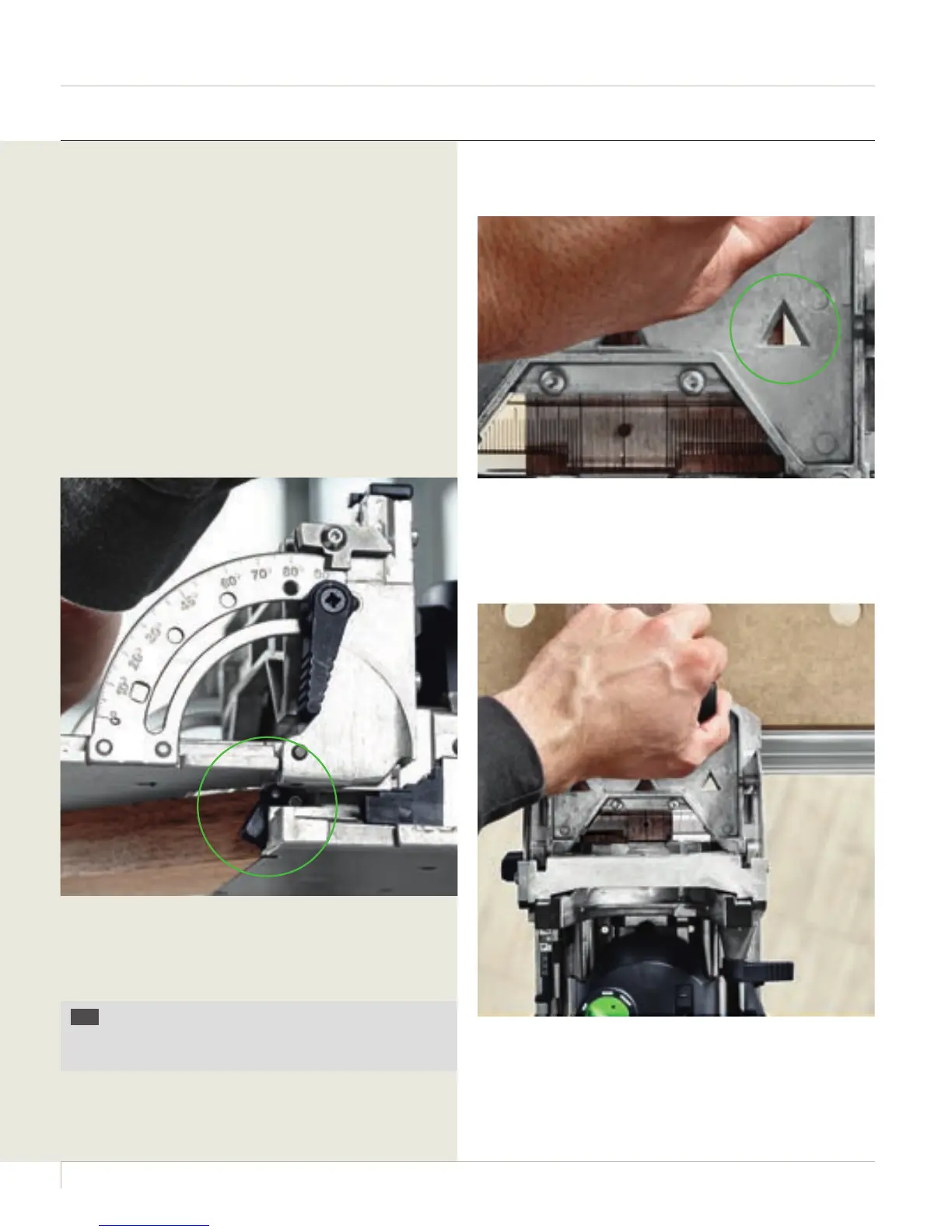

DF 500 It is possible to define the positions of the DOMINO
routed holes by simply drawing and locating the machine
on the scribe mark looking through the viewing window.
It is easiest to quickly define the positions of repetitive domino
holes by using the integral stop catches for both parts of
the workpiece. The distance between the stop catch and the
router centre is 37 mm. Place the DF 500 at the edge of the
workpiece using a stop catch.
TIP With the aid of the additional stop provided with the
DF 500, the lateral distance to the DOMINO centre can be
reduced from 37 mm to 20 mm.
The edge of the workpiece is visible in the machine’s upper
triangular viewing window. If you do not need the stop
catches, they are automatically pushed aside during the
routing process.
1.4.8 Working with the stop system
