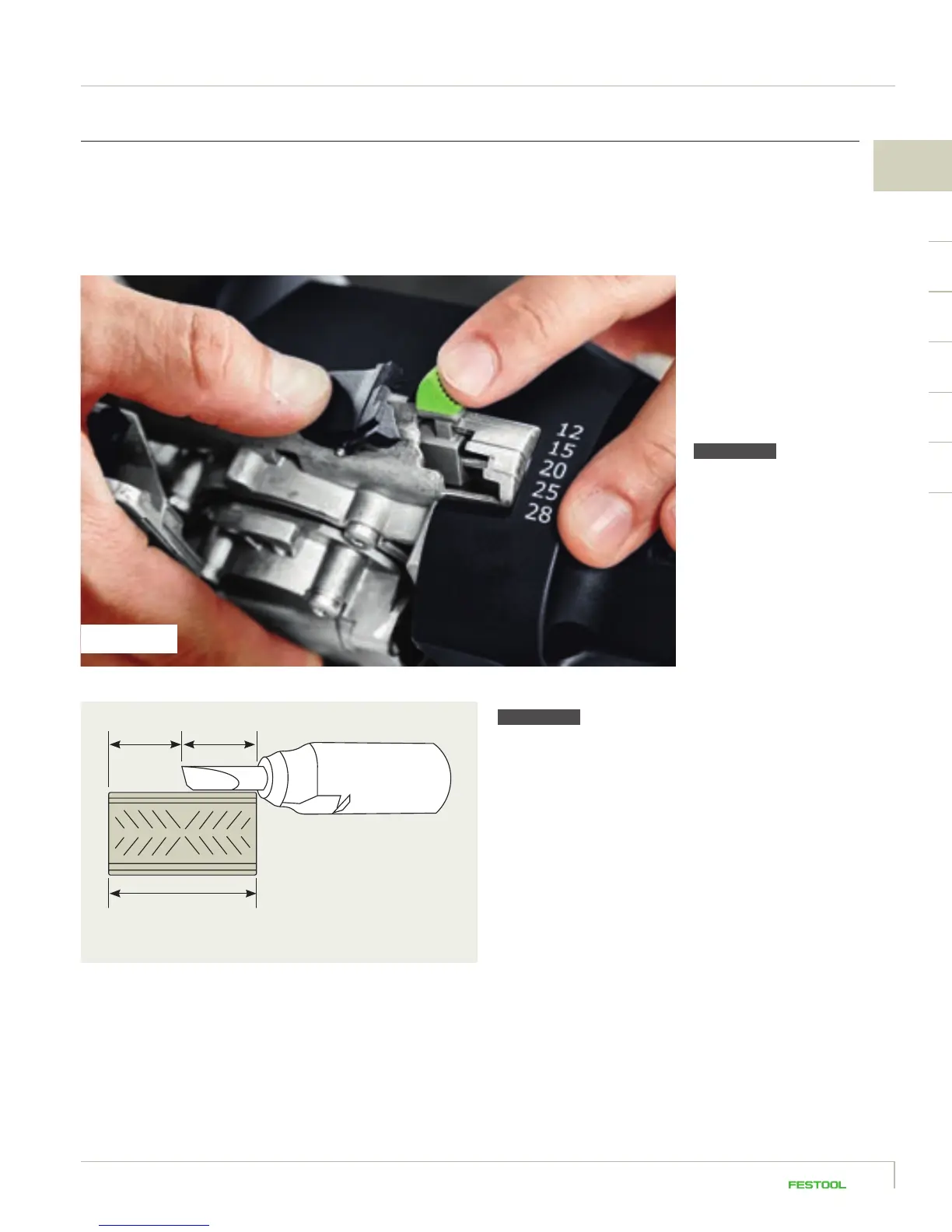

The routing depth determines how deep the cutter cuts into the workpiece. The appropriate routing
depth must be set for the different domino lengths; in most cases half of the domino length. The
routing depth set on the joining machine corresponds to the depth of the domino hole.
DF 500
Open the locking lever lock by
pressing. Now set the required
routing depth using the locking
lever (possible depths ar e 12 mm,
15 mm, 20 mm, 25 mm, 28 mm).
Now release the locking lever
lock again.
ATTENTION
Due to the short shaft length
only the depths 12 mm, 15 mm
and 20 mm are allowed when
using the 5 mm diameter cutter.
ATTENTION The D 4-NL 11 HW-DF 500 specialist cutter is
available for the 4 x 20 mm dominos. Please use a routing
depth of 20 mm when working with this domino and cutter.
However, the true routing depth is 10 mm, because the
specialist cutter has been shortened by 10 mm due to the risk
of fracture. This domino can only be positioned centrally.
1.4.5 Depth adjustment range
Domino 4 x 20 mm
Festool
D 4-NL 11 HW-DF 500
20 mm
10 mm 10 mm
