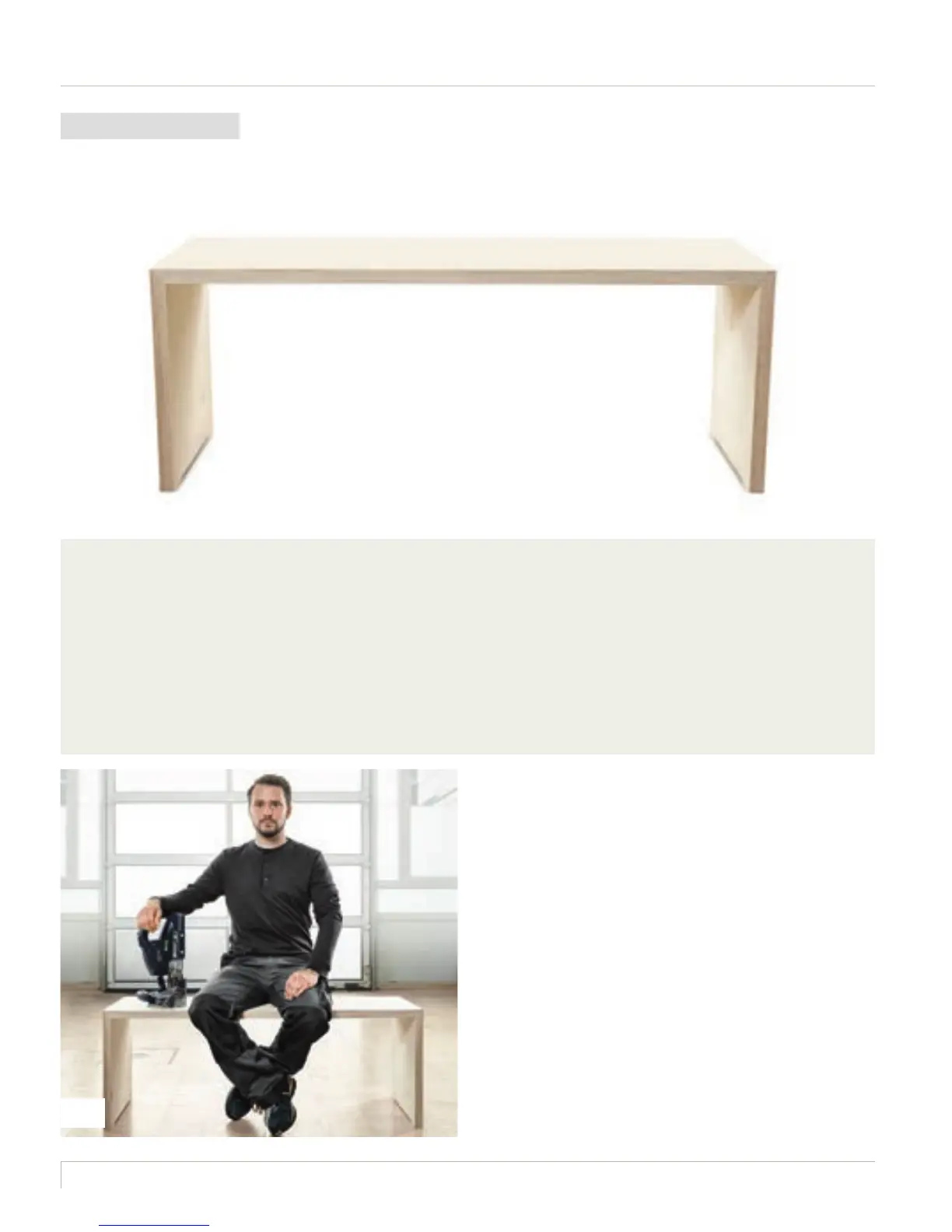

4.7 Mitred joints
Mitred joints are not just possible for smaller workpieces and frames – naturally they can also be
used for stabler connections of solid workpieces thanks to the DF 700. The following example uses
a bench to show how these types of joints are quickly and easily created using the DOMINO stop
pins of the DF 700.
Our workpiece is 30 mm thick. We are processing dominos with
8 x 40 mm thickness. The mitre angle is 45°. This requires the
following settings on the joining machine: adjust the routing
height to the smallest setting, 10 mm. The routing angle is 45°
and the routing depth is half of the domino length, i.e. 20 mm.
