The routing height setting on both the DOMINO DF 500 and the DF 700 is performed using the preselect
slider, allowing predefined heights to be used. Alternatively, any individual dimension can be set using
the scale. The routing height defines the distance from the workpiece top from which the hole is routed
into the workpiece. Selection of the correct routing height depends on the material being worked on,
and also on the type of joint to be produced on the other. Here, it is not absolutely necessary for the
routed hole to be in the centre of the material. You can therefore find more information on the topic of
routing height in the description of the individual applications in section 4.
1.4.6 Height adjustment range
DF 500 – set routing height using the preselect slider.
The dimensions set using the preselect slider determine the material thickness being worked and centre the routed hole exactly
in the middle of the selected disc size – without you having to calculate the distance to the centre. Release the routing height
adjustment clamping lever and lift the front section of the guide frame using the secondary handle. Now select the required disc
size using the slider (16 mm, 20 mm, 22 mm, 25 mm, 28 mm, 36 mm, 40 mm). Then push the front section of the guide frame
downwards until it stops and close the clamping lever.

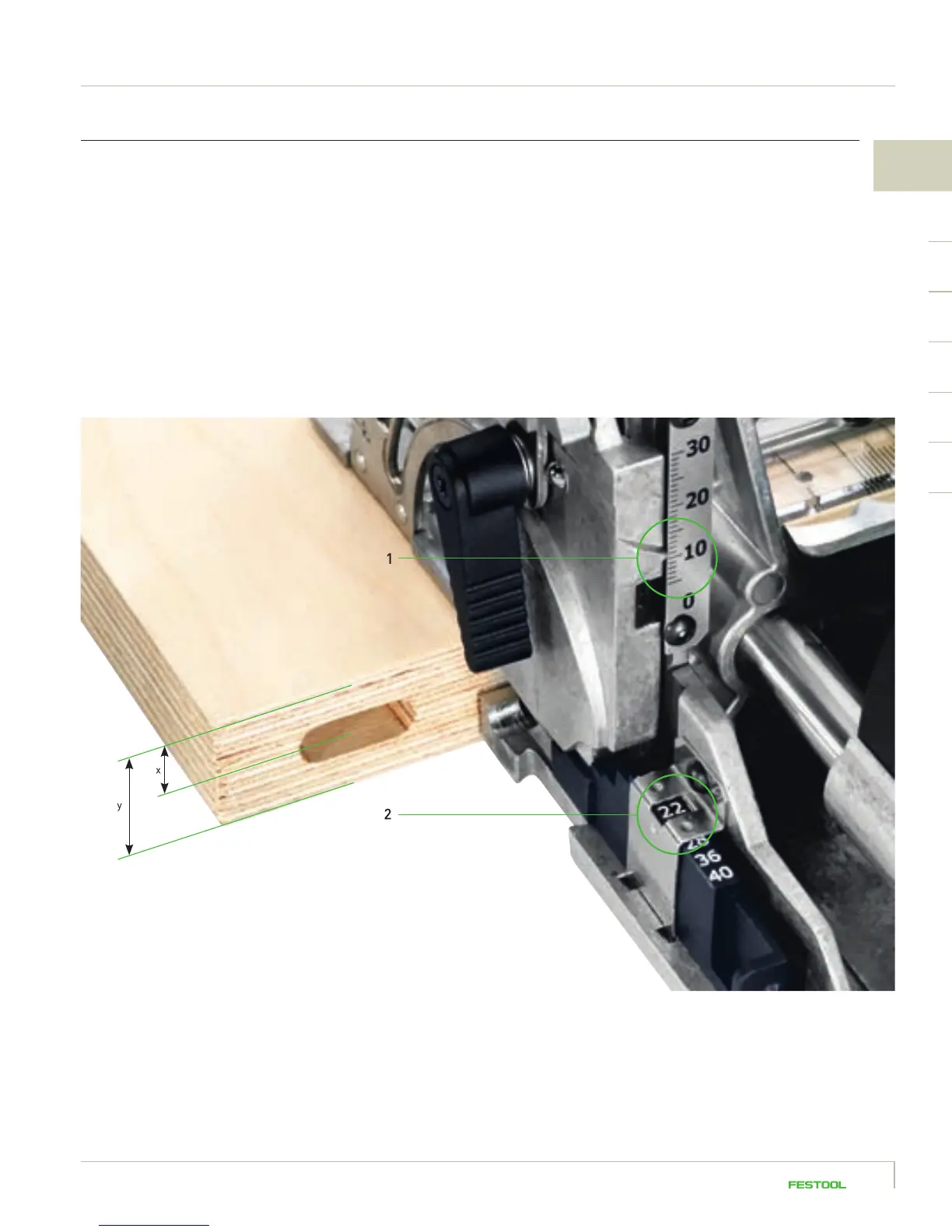

y = Material thickness
x = Distance from top of workpiece to centre of routed hole
1 Scale for individual settings (distance from top of
workpiece to centre of routed hole)
2 Preselect slider (material thickness)
