FLIR FC-Series S User Manual

427-0073-12-12 Version 120 May 2015 1-12
1
Camera Installation
1.8 Concealed Cable Mount Accessory
Do not route cables through the bottom of the camera unless the concealed cable wall mount (PN
4129742) is used. The wall mount is specifically designed for the camera and allows the opening to
seal properly. When using the concealed cable wall mount, cable dimensions must be within the
minimum and maximum as described in Table 1-5.
Proper installation of the seal plate and panel mount gland seals is critical to long term reliability.
Cables enter the bottom of the camera enclosure through the seal plate and panel mount glands. Be
sure to insert each cable through its panel mount gland on the seal plate before terminating them
(connectors will not fit through the gland). Ensure the manufacturer’s recommended cable bend
radius is not exceeded within the enclosure.
Prepare the Camera
Step 1 Use a 3 mm hex key to loosen the four captive screws and remove the top cover as
described above.
Table 1-4: Rear Exit Cable Min/Max Dimensions
Cable Minimum Maximum Notes
Power (3 conductor),
Ethernet, Accessory
cables
4.5 mm
[0.178 in]
5.2 mm
[0.205 in]
When using the concealed cable wall mount
(PN 4129742), cables can have a maximum diameter
of 10 mm [0.394 in]
RG 59 Video cable
5.3 mm
[0.209 in]
6.4 mm
[0.245 in]
Table 1-5: Cable Min/Max Dimensions using Concealed Cable Wall Mount (PN 4129742)
Cable Minimum Maximum Notes
Power (3 conductor),
Ethernet, Accessory
cables
4.5 mm
[0.178 in]
10 mm
[0.394 in]
When using the rear exit cable gland, the maximum
diameter is 5.2 mm [0.205 in]
RG 59 Video cable
5.3 mm
[0.209 in]
10 mm
[0.394 in]

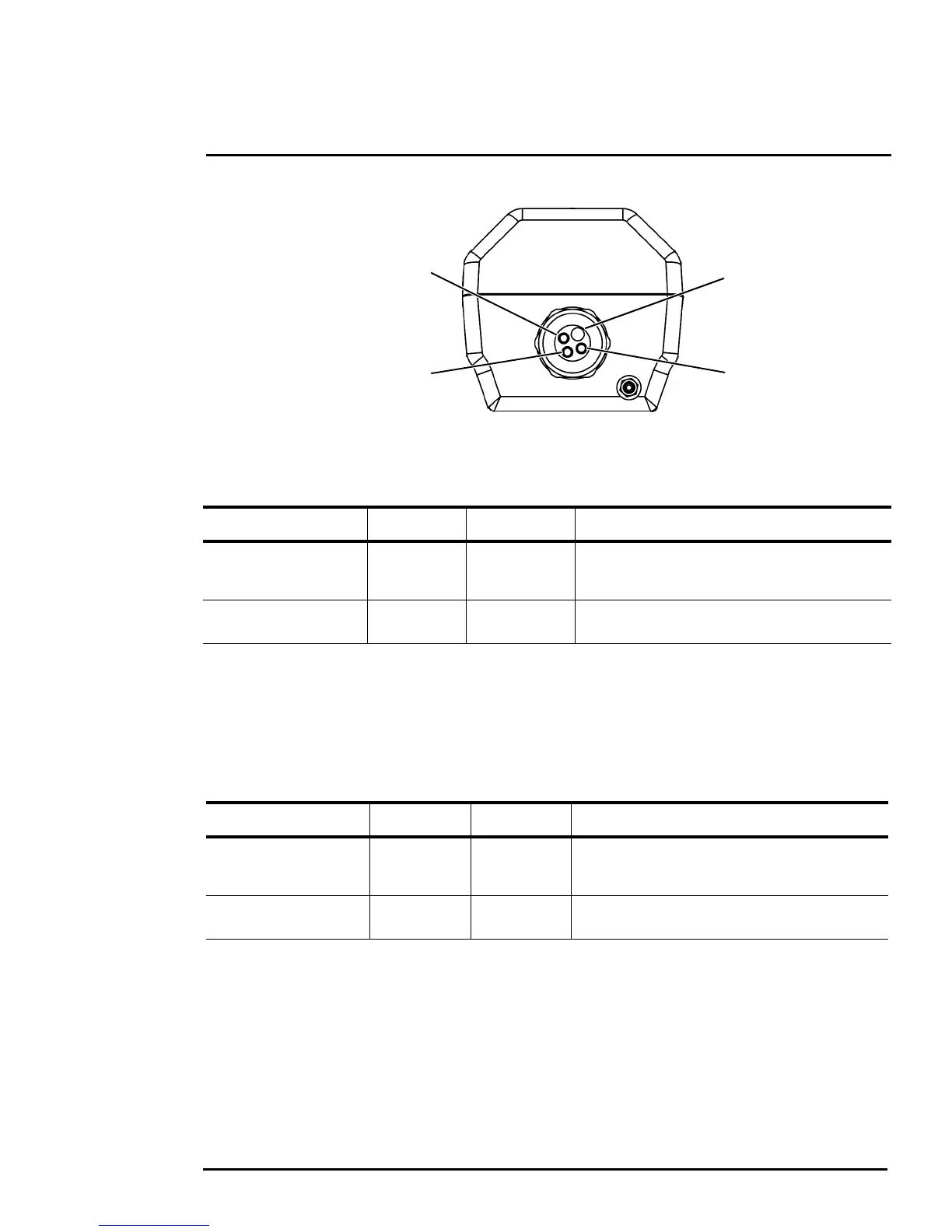

Figure 1-16: Cable Routing
Power Cable
Video Cable
Accessory cable
Ethernet
RG 59 coaxial
3 Conductor
