Focus Firestore FS-100 User Manual

FS-100 Functions
FS-100 Portable DTE Recorder 39
Home Screen
The Home screen is read only and has no navigable items. To leave
the Home screen use either the
Left or Right Navigation button.

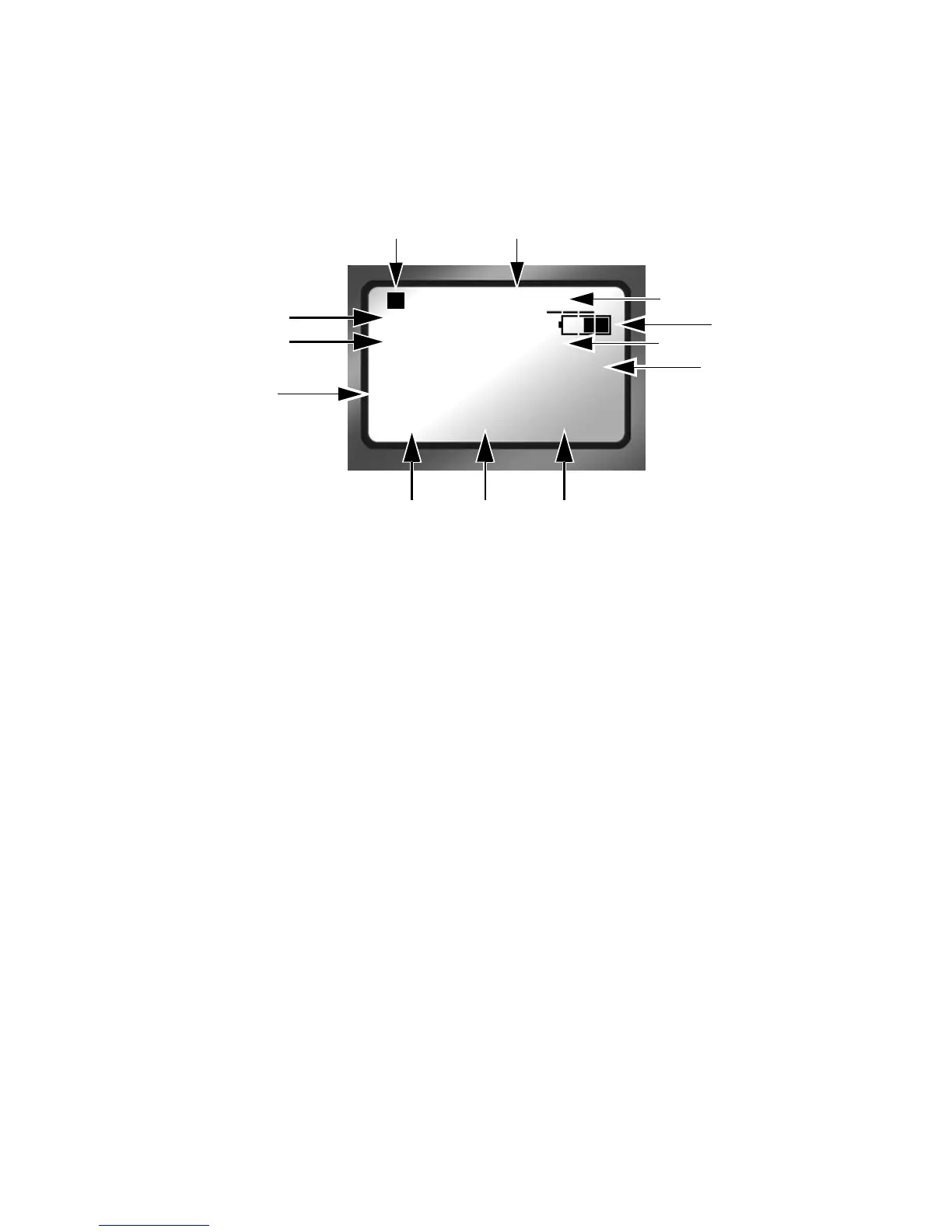

1. Current Function: Symbol and Description
Refer to LCD Display Symbols and Text on page 85.
2. Volume Disk Number
The volume number is always
1 unless multiple FS-100’s are
connected.
3. Clip Number
Number of the current video clip, i.e. 001 for clip 1.
4. Battery Life Gauge
This gauge is accurate only when the unit is powered
exclusively from the battery.
5. Timecode Value
Either Drop Frame - 00;00;00;00 or, Non Drop Frame -
00:00:00:00.
6. Time remaining on the disk.
7. FA Functions with
SYNC as the default, refer to Functions
Screen on page 62 for more information.
8. FB Functions with
DISP as the default, refer to Functions
Screen on page 62 for more information.
9. FC Functions with
LOCK as the default, refer to Functions
Screen on page 62 for more information.
STOP 1-
COUNTER
00:00:14:02
DISK 1 168 min
REEL
SYNC DISP LOCK
10
3
2
4
11
12
6
5
1
7
8
9
