2.3 Wiring
Follow the procedure below. (In the following description, the inverter has already been installed.)
2.3.1 Removing and mounting the terminal cover and the main circuit terminal block cover
(1) For inverters with a capacity of 5HP or below
To remove the terminal cover, put your finger in the dimple of the terminal cover (labeled
"PULL"), and then pull it up toward you.
To remove the main circuit terminal block cover, hold its right and left ends with your fingers and
slide it toward you.

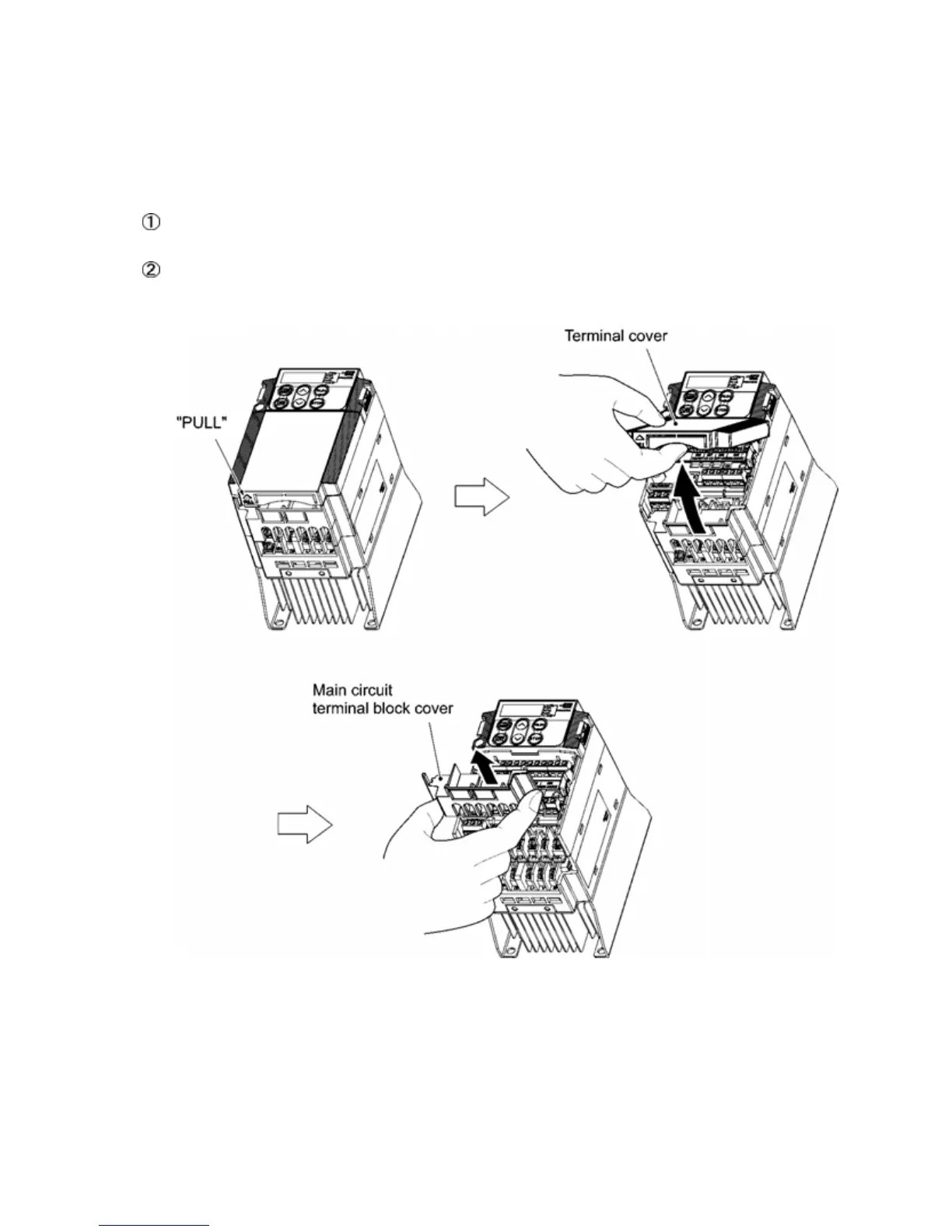

Figure 2.4 Removing the Covers (For Inverters with a Capacity of 5HP or below)
To Next Page
