3.4.3 Checking changed function codes -- Menu #2 "Data Checking" --
Menu #2 "Data Checking" in Programming mode allows you to check function codes that have been
changed. Only the function codes whose data has been changed from the factory defaults are
displayed on the LED monitor. You can refer to the function code data and change it again if
necessary. The menu transition in Menu #2 "Data Checking" is as same as its of Menu #0 "Quick
Setup."
Basic key operation
For details of the basic key operation, refer to Menu #0 "Quick Setup" in Section 3.4.1.
To check function codes in Menu #2 "Data Checking," it is necessary to set function code
E52 to "1" (Function code data check mode) or "2" (Full-menu mode).
3.4.4 Monitoring the running status -- Menu #3 "Drive Monitoring" --
Menu #3 "Drive Monitoring" is used to monitor the running status during maintenance and trial
running. The display items for "Drive Monitoring" are listed in Table 3.12. Figure 3.4 shows the menu
transition in Menu #3 "Drive Monitoring."

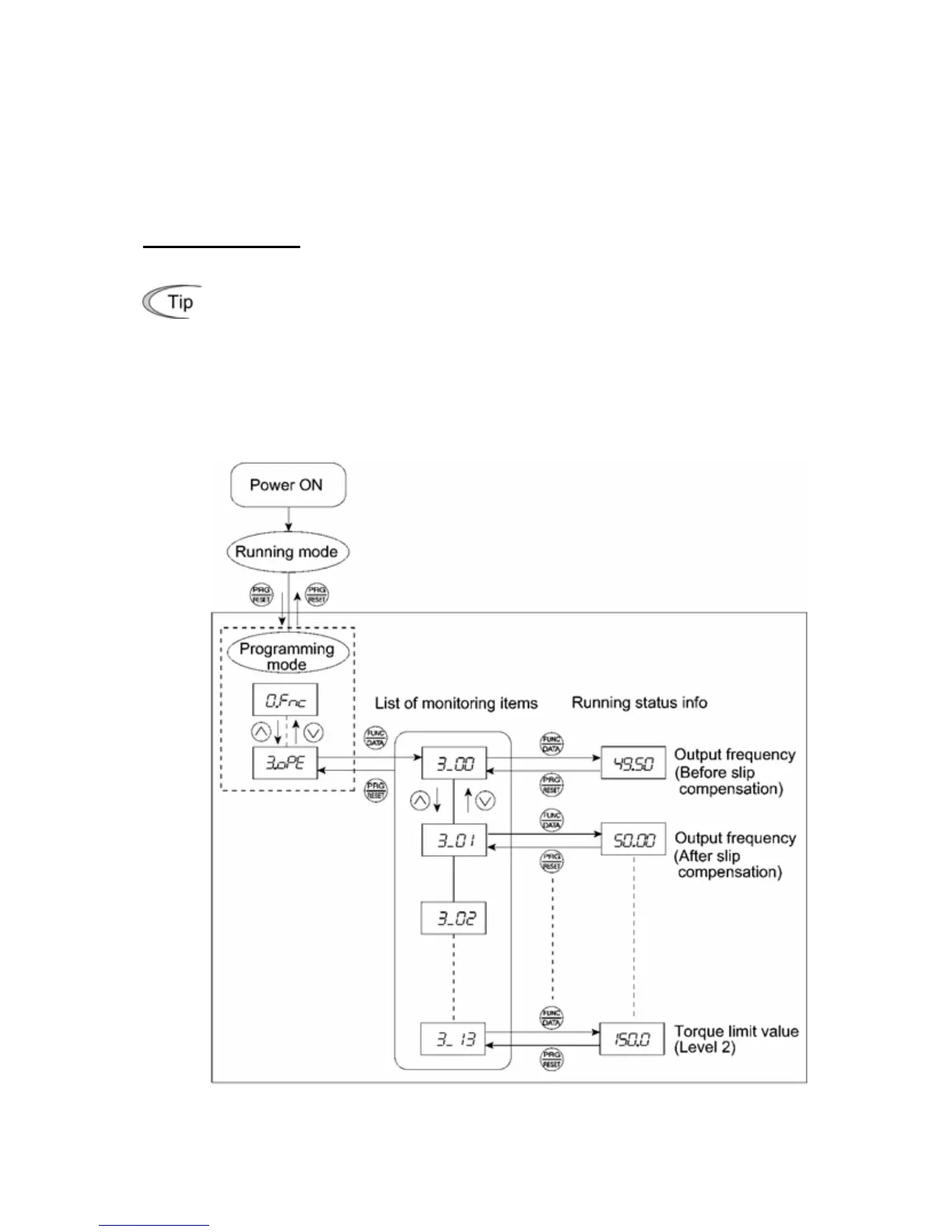

Figure 3.4 Menu Transition in Menu #3 "Drive Monitoring"
