9.3 Replacing the Pick Roller

Replace the pick roller following the procedure below.

Operation

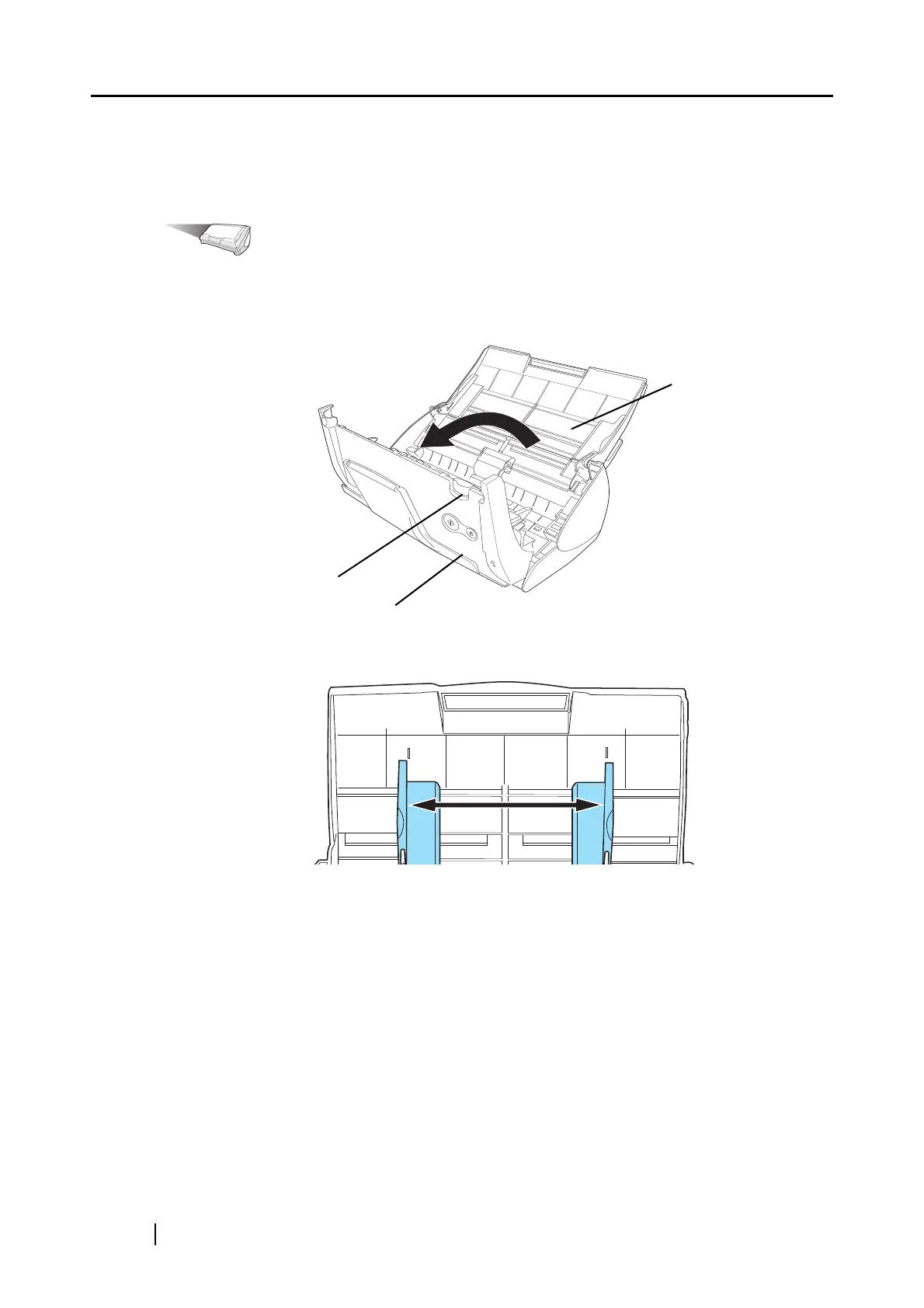

1. Remove the documents on the paper chute.

2. Open the ADF while pulling the cover open lever.

3. Adjust the Side guide to the "A5" size.

ADF

Cover open lever

Paper chute

Default Chapter5
