1-24

1.16 Adjusting the External Video Sounder Picture

The USER-1/USER-2 display can show the picture from external equipment, and you can adjust

the picture as below.

1. Display the picture of the external equipment. “EXT” appears at the top of the screen.

2. Rotate the [FUNCTION] switch to select GAIN-EXT.

The EXTERNAL (3

rd) ECHO menu appears.

Optimize external (3rd)

echo presentation.

[-/+]: Change setting

[EXIT (knob)]: Exit

EXTERNAL (3rd) ECHO

GAIN : 5.0 (0 10)

CLUTTER : 4 (0 7)

CURVE : STD

TVG : 5 (0 10)

STC : 0 (0 10)

NOISE LIM : OFF

GAIN ADJ : +0 ( 50)

TX PULSE : STD

MANUAL

: 0.2 msec

These settings only

appear when the

picture from external

equipment is

displayed.

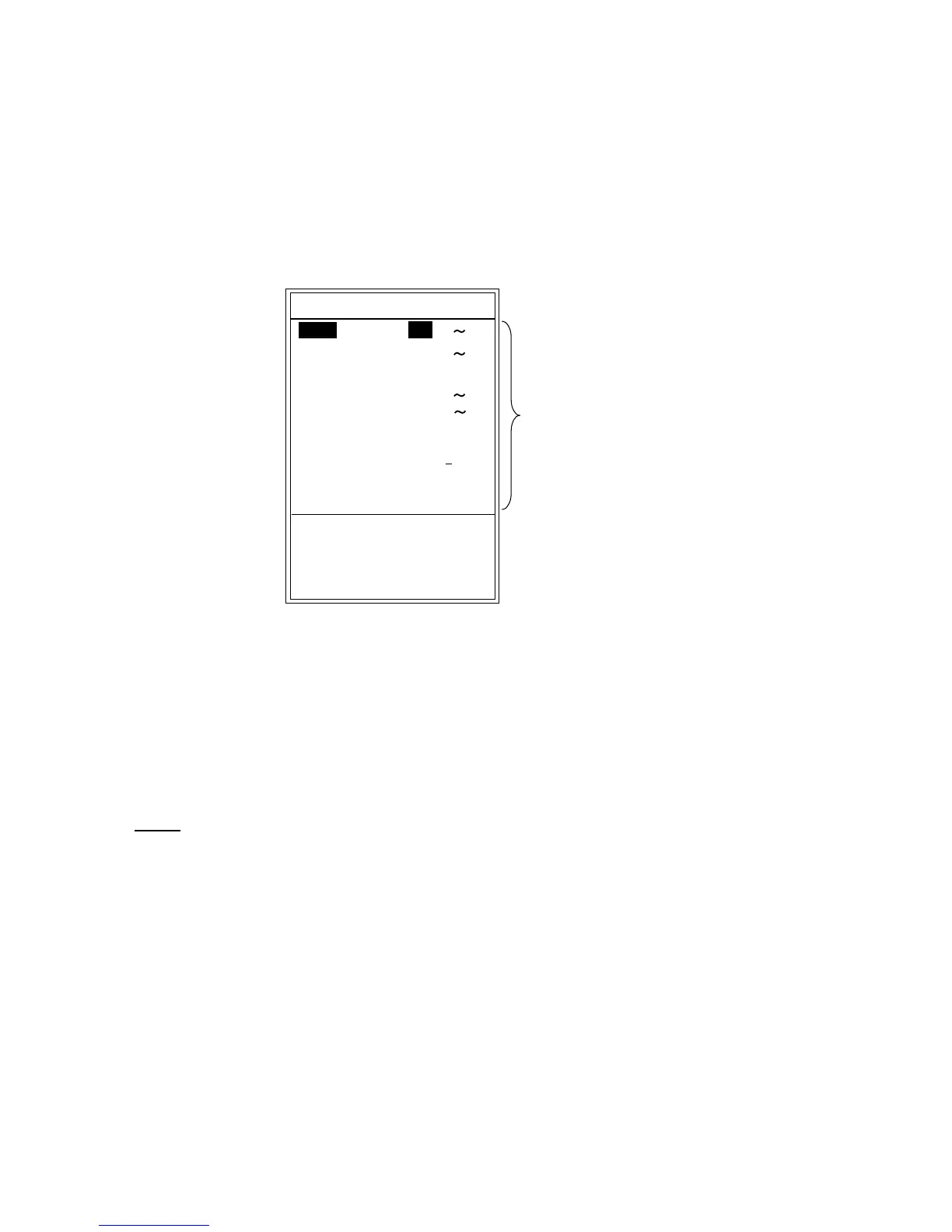

EXTERNAL (3 rd) ECHO menu

3. Press the [!] or ["] to select the item to adjust.

4. Press the [-] or [+] key to adjust.

5. Press the [!] or ["] to close the window.

6. Rotate the [FUNCTION] switch fully counterclockwise to select EXIT.

Items

GAIN: Adjusts gain (0.0-10.0) CLUTTER: See page 1-15,

CURVE: See page 1-15 TVG: See page 1-16

STC: See page 2-9 NOISE LIM: Same as NOISE LIMITER. See page 1-22

GAIN ADJ: See page 2-9 TX PULSE, MANUAL: See page 2-10
