4. INTERPRETING THE DISPLAY
This section provides, using typical examples, information necessary for interpreting the display.
LF
49.6
1/1
ft
0.0
20
40
60
80
0
0
Surface
noise
Color bar
Bottom
Zero line
Fish school

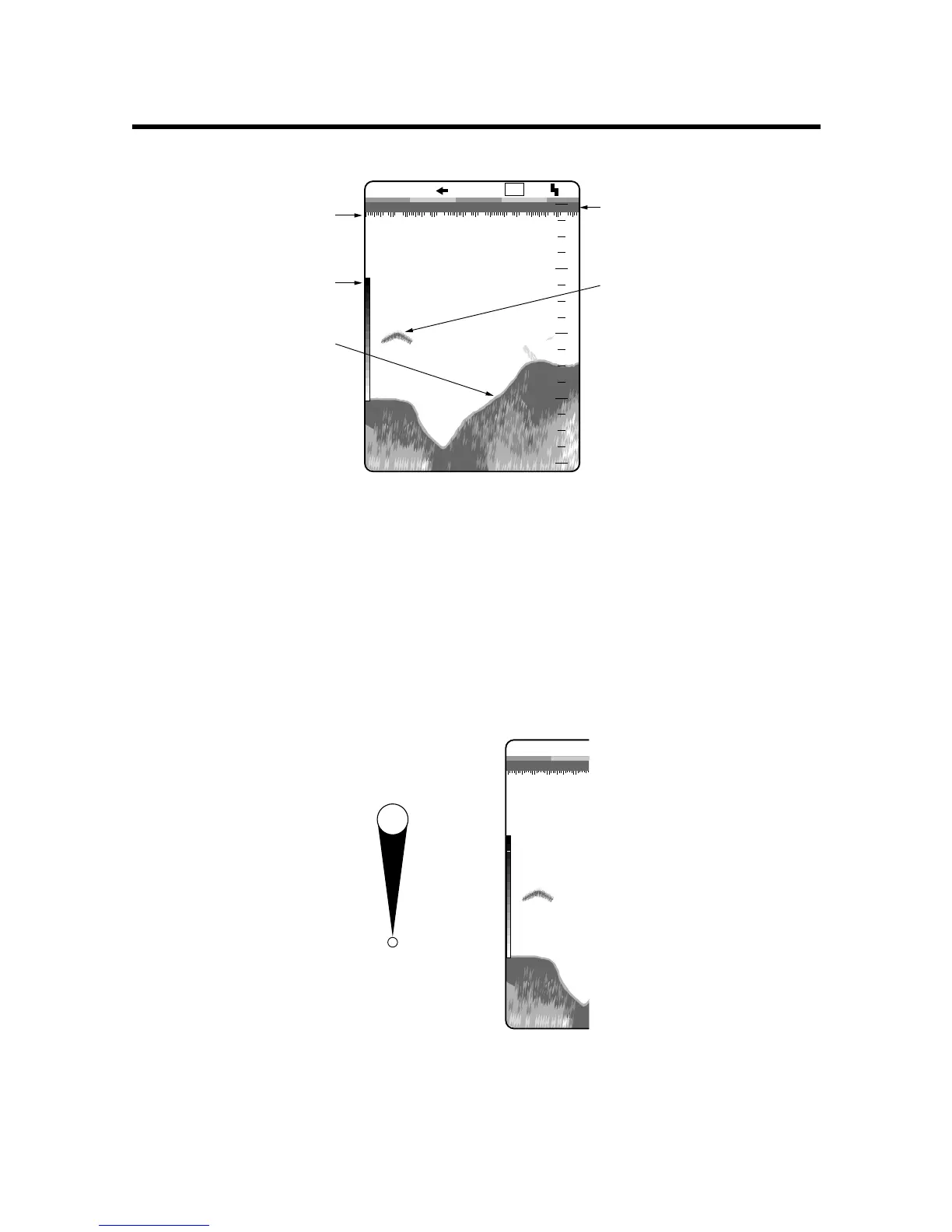

Typical display
4.1 Color Bar
The color bar shows the relation between echo intensity and echo color on the screen. The top
color (reddish brown) is the strongest color and the lower colors the weakest. The bar can be
used as a reference to estimate density of a fish school, fish species and hardness of the
bottom. The background color can be selected on the menu screen.
R-BRN
RED
ORANGE
YELLOW
GREEN
LIGHT-BLUE
BLUE
DEEP BLUE
WEAK
STRONG
No Signal
49.6
ft
Color bar
