vi

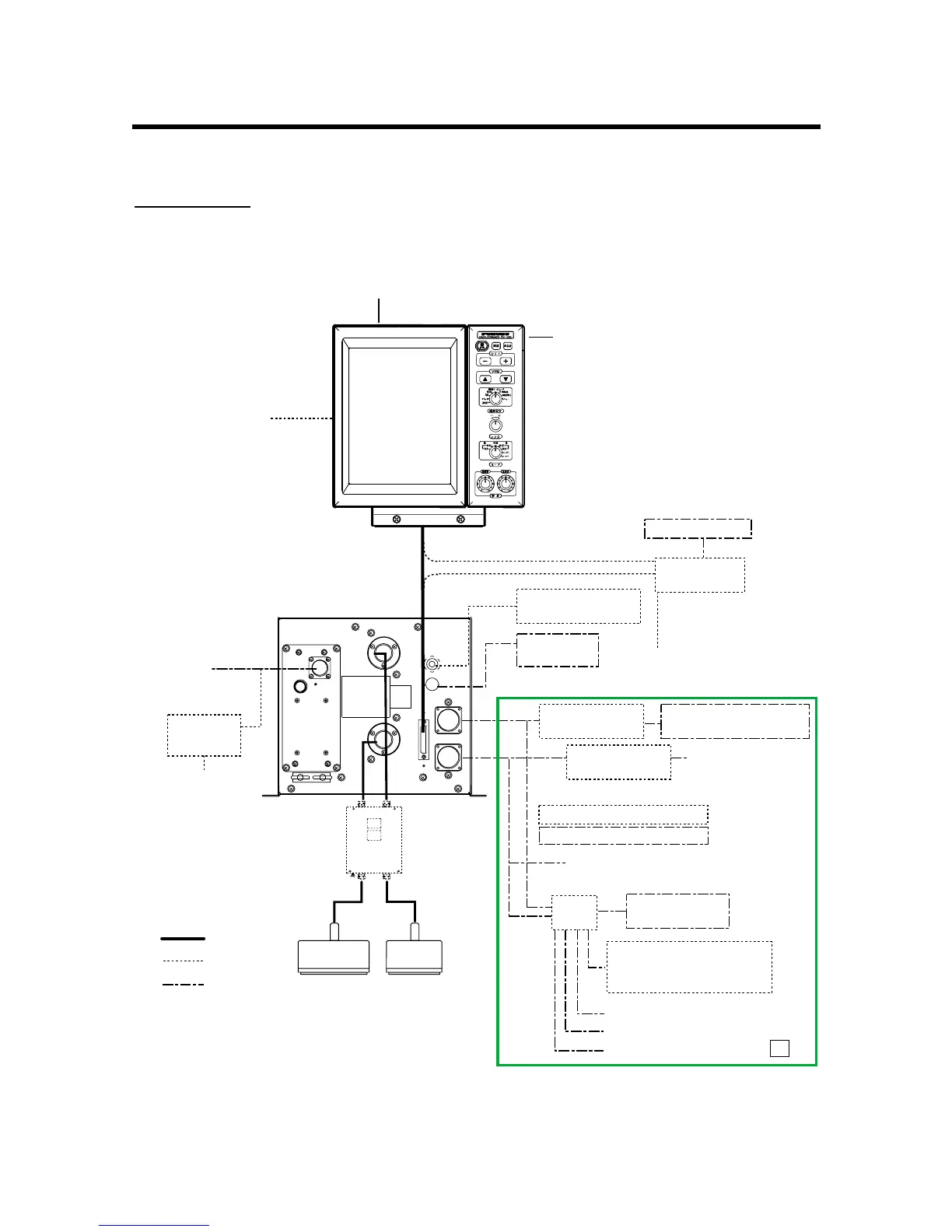

SYSTEM CONFIGURATION
Note: This equipment is intended for marine use only.
Standard type
Monitor unit MU-101C is supplied as standard. The illustration below shows the portrait-type
monitor unit and control unit.
Ship's Mains
12-24 VDC
Rectifier
RU-1746B-2
100/110/115/200/
220/230 VAC
1φ, 50/60 Hz
PROCESSOR UNIT
CV-1203 (FCV-1200L)
CV-1203M (FCV-1200LM)
Navigator *4
HI
LO
: Option
: Standard
: Local Supply
*1: FCV-1200L only
*2: EXIF Assy. required for FCV-1200L.
*3: For sister ship one unit only
Sister ship: EXIF Assy. required for FCV-1200L
Master ship: FCV-1200LM or FCV-1200L equipped with EXIF Assy.
*4: Navigator may be connected to interface unit or monitor unit.
CONTROL UNIT
CV-1201: Portrait type
CV-1202: Landscape type
Water Temp. Sensor
(T-02MSB, etc.)
Net Sonde
FNZ-18
Interface Unit
IF-8000
E/S Interface
VI-1100A
E/S Interface
VI-1100A
Sonar, Net Recorder,
Telesounder TS-50/80 *3
OR
Transceiver Unit ETR-5D/10D
Telesounder TS-7000/8000 *3
Same as above
OR
Switch Box
EX-7
Picture Recorder
MT-12
E/S Interface VI-1100A
OR
Transmitter Unit ETR-5D/10D
Same as above
Same as above
Same as above
*2
Same as above
NMEA 0183
MONITOR UNIT MU-101C
External Monitor
Navigator *4
TRANSDUCER*1TRANSDUCER*1
High
freq.
Low
Freq.
Booster Box BT-5
To Next Page
