Furuno GP-150 Installation Manual

8. MENU SETTINGS
8-12
To Previous Page
MSB
Parity EVEN ODD NONE
Stop Bit 1 2
Baud Rate 4800 9600
DATA 4 I/O SETUP "DGPS" 2/2
MENU : Escape
ENT : Enter
: Select
First Bit
LSB

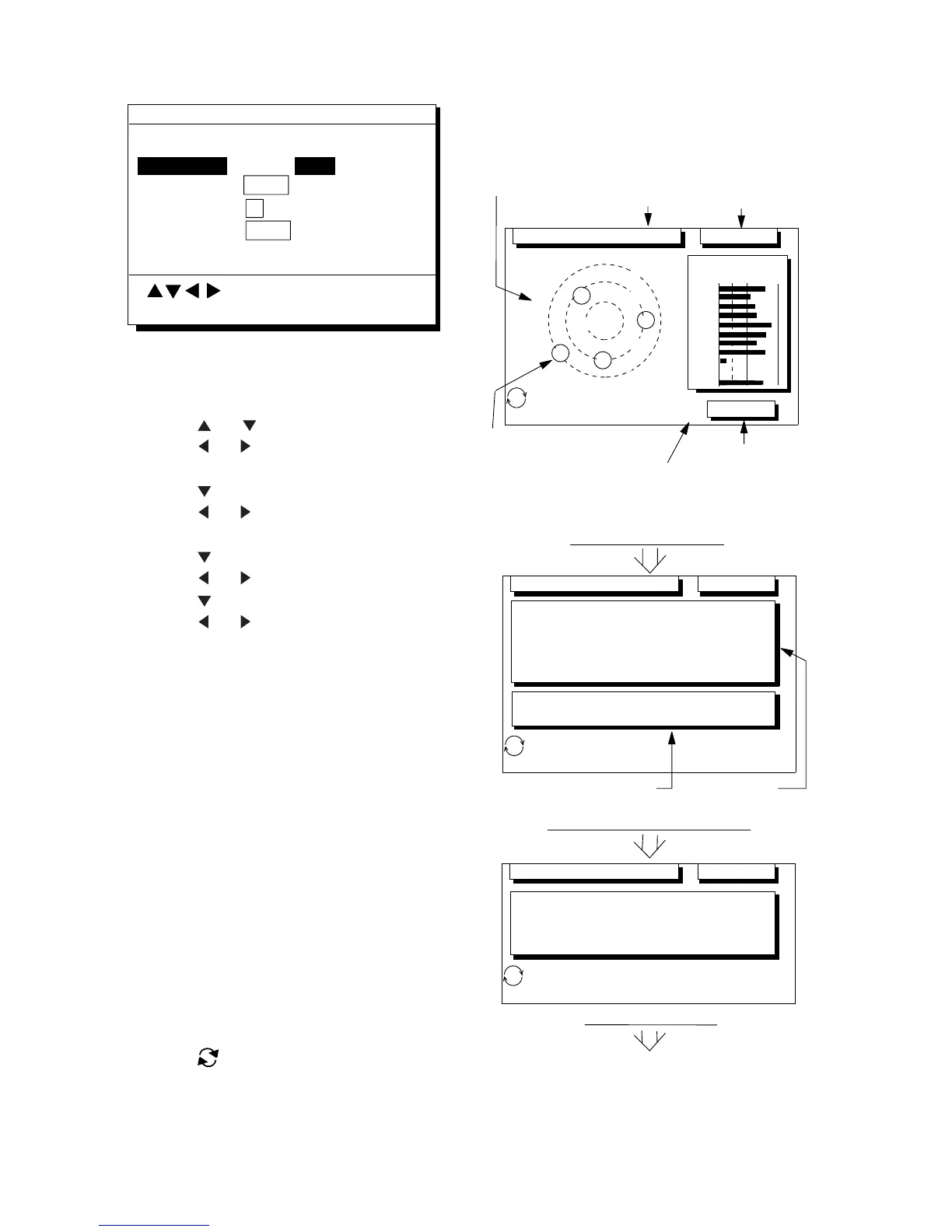

Figure 8-27 DATA 4 I/O SETUP
"DGPS" 2/2 menu
7) Press
or to select First Bit.
8) Press
or to select first bit; MSB or
LSB.
9) Press
to select Parity.
10) Press
or to select parity bit; EVEN,
ODD or NONE.
11) Press
to select Stop Bit.
12) Press
or to select stop bit; 1 or 2.
13) Press
to select Baud Rate.
14) Press
or to select baud rate; 4800
or 9600.
15) Press the MENU ESC key.
8.7 Displaying GPS Monitor
Displays
Three GPS monitor displays provide GPS
information:
• Satellite monitor which shows position of
GPS satellites
• Beacon receiver monitor which displays
DGPS beacon station information
• DGPS beacon station message monitor
which displays messages received from
beacon stations
To display the GPS monitor displays;
1) Press MENU ESC and 7.
2) Press
to display the GPS monitor
you want to view.
Press the MENU ESC to escape.
MENU:Escape
Jan 21 2006 23:59’59" U
:BEACON RCVR MONITOR
DOP:1.5
SV (PRN)
SNR
30
40
50
01
12
31
16
18
19
09
08
Fixing date and time
GPS fix
state
Satellite
distribution
Number, bearing and elevation angle of all satellites
in view of the GPS receiver appear. Satellites being
used in fixing position are circled with a solid line;
satellites not being used in fixing position are circled
with a dashed line.
Receive signal level
DOP value
SATELLITES MONITOR
N
S
WE
01
12
31
09
18
19
08
16
(When signal level is more than 35, it is
used for positioning.)
Satellite number with circle
is used for positioning.
24
24
W3D 100m
SAFE
134
*
*: This indication appears in the WAAS mode.
MENU:Escape
Jan 21 2006 23:59’59" U
:STATION MESSAGE
DGPS INTEGRITY STATUS
ID: _ _ _ _
NAME:
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
Bit Rate: _ _ _ bps
Sig Strength: _ _ dB
Health: _
Freq: _ _ _ . _ kHz
SNR: _ _ dB
DGPS DATA: Good
BEACON STATION:
MENU:Escape
Jan 21 2006 23:59’59" U
:SATELLITES MONITOR
Message:
STATION IS OPERATING.
Good
DGPS data and DGPS
station receiving condition
DGPS station
data
BEACON RECEIVER MONITOR
STATION MESSAGE
Return to SATELLITES
MONITOR
D3D 100m
SAFE
D3D 100m
SAFE

Furuno GP-150 Specifications

General

Display Type	LCD
Display Size	4.5 inches
Resolution	320 x 240 pixels
Channels	12
Operating Temperature	-15°C to +55°C
Waterproof Rating	IPX5
Data Output	NMEA 0183
Type	GPS Receiver
Accuracy	10 meters
Languages	English
