Furuno GP-150 Installation Manual

6
4
N
6
1
2
GP-150
Option and Connectable Equipment
Standard System Configuration
External Buzzer
Rectifier PR-62
12-24 VDC115/230 VAC
Antenna Unit
3 m
15 m (30/50 m)
Radar
DGPS Antenna Unit
GPA-019SGPA-018S
5 m (10 m)
DGPS Beacon Receiver
Second Display
Rectifier PR-62
12-24 VDC 115/230 VAC
12/24 VDC
3 m
15 m (30/50 m)
1J
DGPS Antenna Unit
GPA-019SGPA-018S
2J 3J
4J~8J 10J~12J
GPA-017S
Antenna Unit
GPA-017S
AIS
Sonar
Echo Sounder
Autopilot
VideoPlotter
Radar
AIS
Sonar
Echo Sounder
Autopilot
VideoPlotter
PC
IF-2500
Interface Unit
External Alarm System
TRADE MARK REGISTERED MARCA REGISTRADA
SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE
05113N Pri0nted in Japan
EQUIPMENT LIST
Standard
1. Display Unit (Specify single or dual) 1 unit
2. Antenna Unit GPA-017S
GPA-018S*
GPA-019S* 1 unit
(specify when ordering)
*Selectable when a beacon receiver is incorporated into a display unit.
3. Antenna Cable 15 m
4. Interface Cable 5 m x 2 pcs
5. Installation Materials and Spare Parts 1 set
Option
1. DGPS Receiver Kit OP20-32-1/20-33
2. Whip Antenna FAW-1.2 for GPA-018S
3. Antenna Cable, 30/50 m
4. Interface Cable, 5/10 m
5. Antenna Base
CP20-01111 (Pipe mount), No.13-QA330 (Deck mount)
No.13-QA310 (Offset bracket), No.13-RC5160 (Handrail
mount)
6. Flush Mount Kit OP20-24/20-25
7. Interface Unit IF-2500
8. External DGPS Receiver GR-80
9. Rectifier PR-62
SPECIFICATIONS
GPS
Receiver 12 discrete channels all-in-view, C/A code
RX Frequency L1 (1575.42 MHz)
Time to First Fix 12 s (Warm start)
Tracking Velocity 900 kt
Geodetic System WGS-84 (NAD-27 or others selectable)
Update Rate 1 s
Positioning Augmentation
DGPS
Reference Station: Automatic or manual selection
Frequency Range: 283.5 - 325.0 kHz (all ITU regions)
Format: RTCM SC-104 Ver 2.0 Type1, 7, 9, 16
WAAS
WAAS augmentation is available through the GPS core in the display
unit
Accuracy GPS: 10 m (95%)
DGPS: 5 m (95%)
WAAS: 3 m (95%), limited coverage
SOG: ±0.2 kt (SOG
≦
10 kt)
COG: ±3° (SOG 1-17 kt), ±1° (SOG > 17 kt)
Display 6" LCD (120 x 91 mm),
320 (H) x 240 (V) pixels,
L/L resolution: 0.001 min
Display Modes VideoPlotter, Highway, Text, Steering
VideoPlotter Scale: 0.02 to 320.0 nm,
Plot Interval: 1 s - 60 min or 0.01-99.99 nm
Memory Capacity
2,000 points for ship's track and marks, 999 waypoints with comments,
30 routes (containing 30 waypoints/route)
Alarms
Arrival, anchor watch, XTE, Speed, Time, Water Depth, Trip, DGPS,
WAAS
Integrity indication
Safe, Caution, Unsafe at accuracy level of 10 m or 100 m
Interface (IEC 61162-1 Ed 2, NMEA 0183)
Output GBS (satellite fault), GLL (L/L), VTG (SOG, COG),
ZDA(UTC), WPL (WPT location), etc.
Input DBT (Depth), HDT (Compass), MTW (Water temperature),
TLL (TGT L/L), VBW (Dual grd/wat spd), etc.
ENVIRONMENT
(IEC 60945 test method)
Temperature Display Unit: -15°C to +55°C
Antenna Unit: -25°C to +70°C
Waterproofing Display Unit: IPX5 (IEC 60529)
Antenna Unit: IPX6 (IEC 60529)
EMC IEC 60945 Ed. 4 (up to 2 GHz)
POWER SUPPLY
12-24 VDC, 0.8-0.4 A
160 6.3"
80 3.1"
112 4.4"
290 11.4"
250 9.8"
260 10.2"
180 7.1"
4 - 6
Display Unit
Antenna Unit
0.15 kg 0.3 lb
2.2 kg 4.9 lb
24 0.9"61 2.4"
32 1.3"
69 2.7"
40 1.5"
126 4.9"
110 4.3"
116 4.6"
156 6.1"
GPA-017S
0.3 kg 0.7 lb
GPA-018S
1.0 kg 2.2 lb
GPA-019S

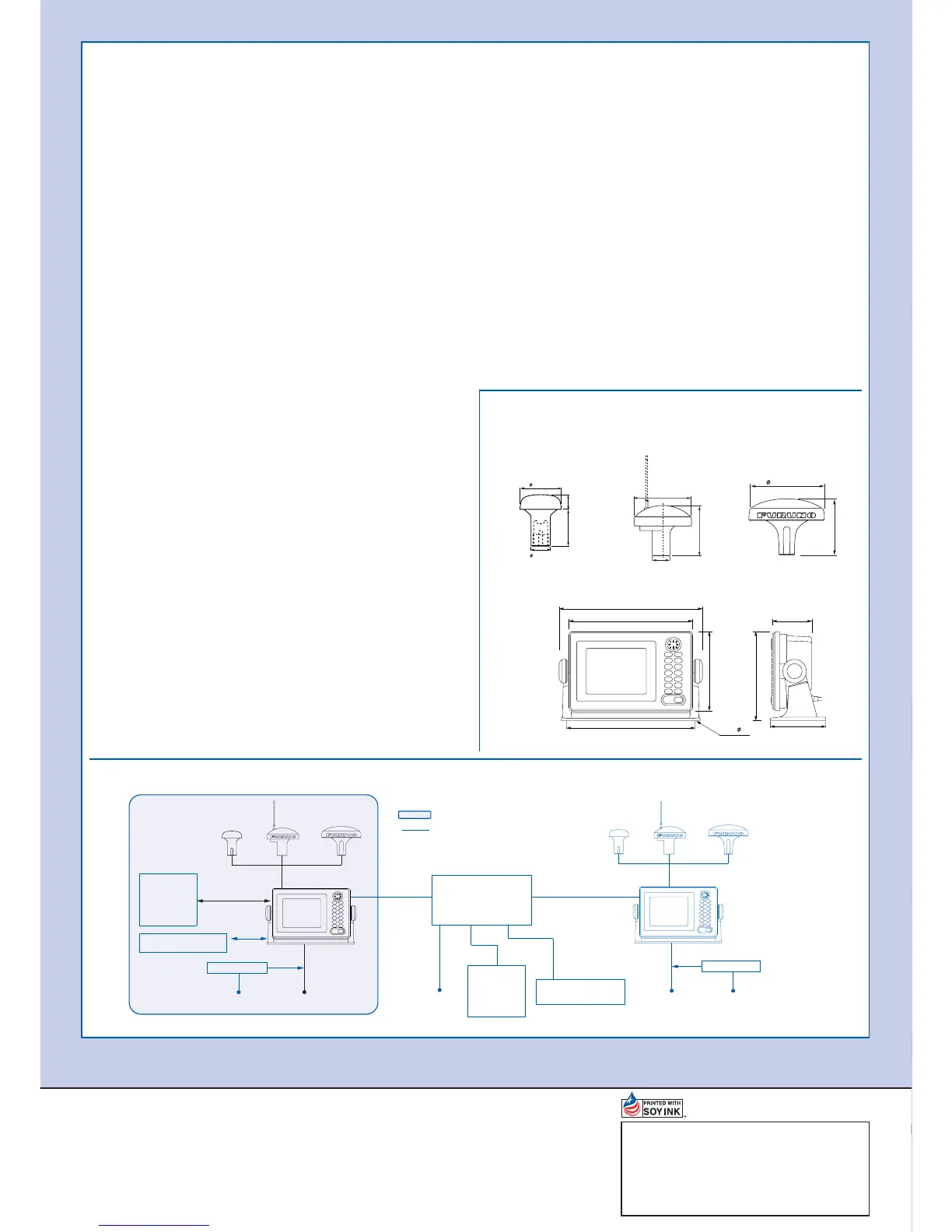

Interconnection Diagram
FURUNO U.S.A., INC.
Camas, Washington, U.S.A.
Phone: +1 360-834-9300
Fax: +1 360-834-9400
FURUNO (UK) LIMITED
Denmead, Hampshire, U.K.
Phone: +44 2392-230303
Fax: +44 2392-230101
FURUNO FRANCE S.A.
Bordeaux-Mérignac, France
Phone: +33 5 56 13 48 00
Fax: +33 5 56 13 48 01
FURUNO ESPAÑA S.A.
Madrid, Spain
Phone: +34 91-725-90-88
Fax: +34 91-725-98-97
FURUNO DANMARK AS
Hvidovre, Denmark
Phone: +45 36 77 45 00
Fax: +45 36 77 45 01
FURUNO NORGE A/S
Ålesund, Norway
Phone: +47 70 102950
Fax: +47 70 127021
FURUNO SVERIGE AB
Västra Frölunda, Sweden
Phone: +46 31-7098940
Fax: +46 31-497093
FURUNO FINLAND OY
Espoo, Finland
Phone: +358 9 4355 670
Fax: +358 9 4355 6710
FURUNO POLSKA Sp. Z o.o.
Gdynia, Poland
Phone: +48 58 669 02 20
Fax: +48 58 669 02 21
FURUNO DEUTSCHLAND GmbH
Rellingen, Germany
Phone: +49 4101 838 0
Fax: +49 4101 838 111
LLC FURUNO EURUS
Petersburg, Russia
Phone: +7 812 767 15 92
Fax: +7 812 766 55 52

Furuno GP-150 Specifications

General

Display Type	LCD
Display Size	4.5 inches
Resolution	320 x 240 pixels
Channels	12
Operating Temperature	-15°C to +55°C
Waterproof Rating	IPX5
Data Output	NMEA 0183
Type	GPS Receiver
Accuracy	10 meters
Languages	English
