1. MOUNTING
1-2
1.2 How to Install the Processor Unit
The Processor Unit (MPU-004) can be installed on a flat surface (such as a desktop)
or on a bulkhead.
1.2.1 Bulkhead installation
1. Referring to the outline drawing at the back of this manual, drill four holes for the
mounting screws (self-tapping 520, supplied as installation materials).
2. Fit two screws to the upper holes, leaving sufficient thread exposed to hang the
processor unit.

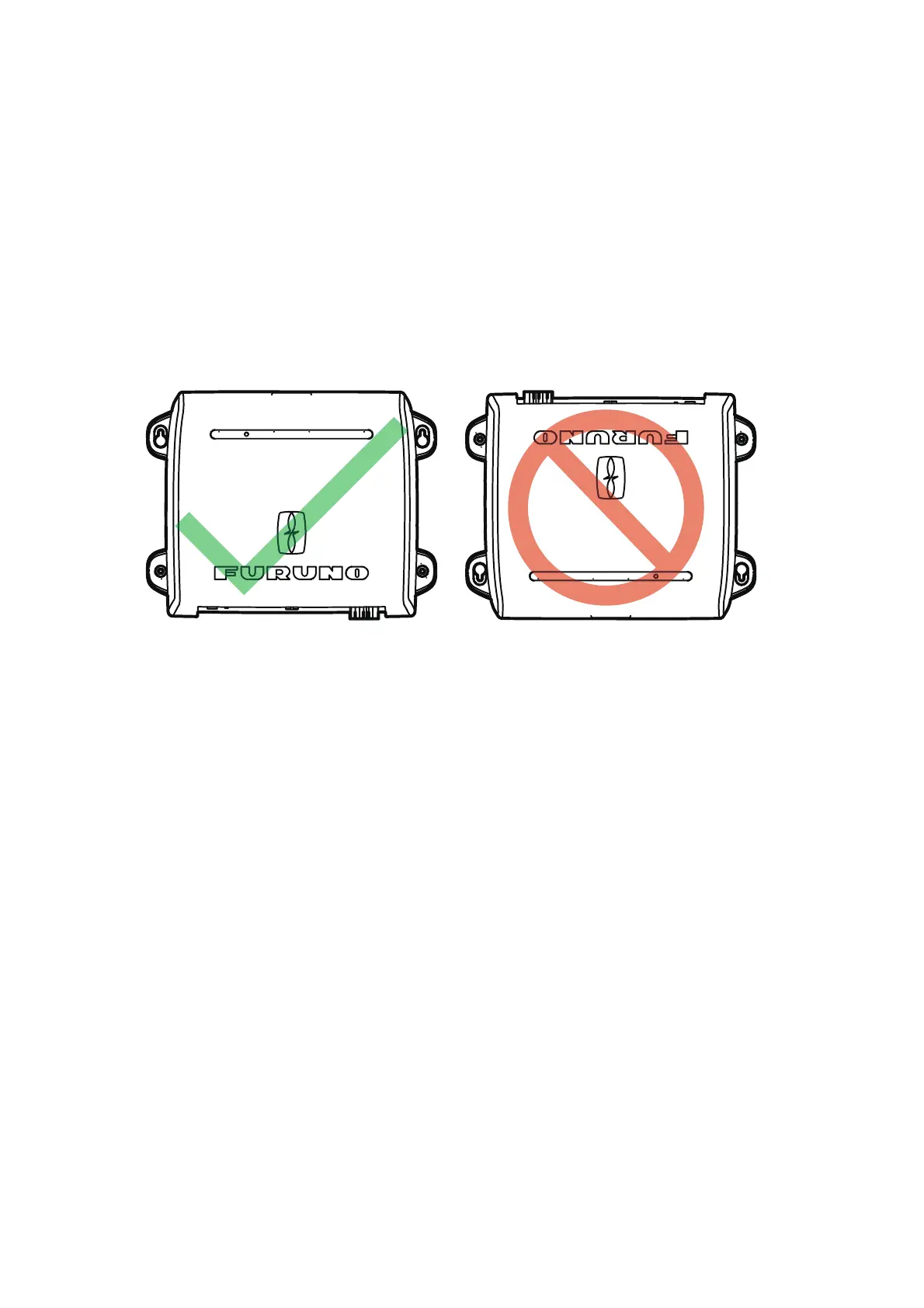

3. Hang the processor unit on the two fitted screws, taking care the that processor is
correctly oriented, with the cables and connectors facing downwards.
4. Loosely fasten two screws to the bottom two holes.
5. Fasten all four screws evenly, securing the processor unit to the installation loca-
tion.
1.2.2 Flat Surface (desktop) installation
1. Referring to the outline drawing at the back of this manual, drill four holes for the
mounting screws (self-tapping 520, supplied as installation materials).
2. Fit two screws to the upper holes, leaving sufficient thread exposed to fit the pro-
cessor unit.
3. Slide the processor unit on the two fitted screws.
4. Loosely fasten two screws to the bottom two holes.
5. Fasten all four screws evenly, securing the processor unit to the installation loca-
tion.
