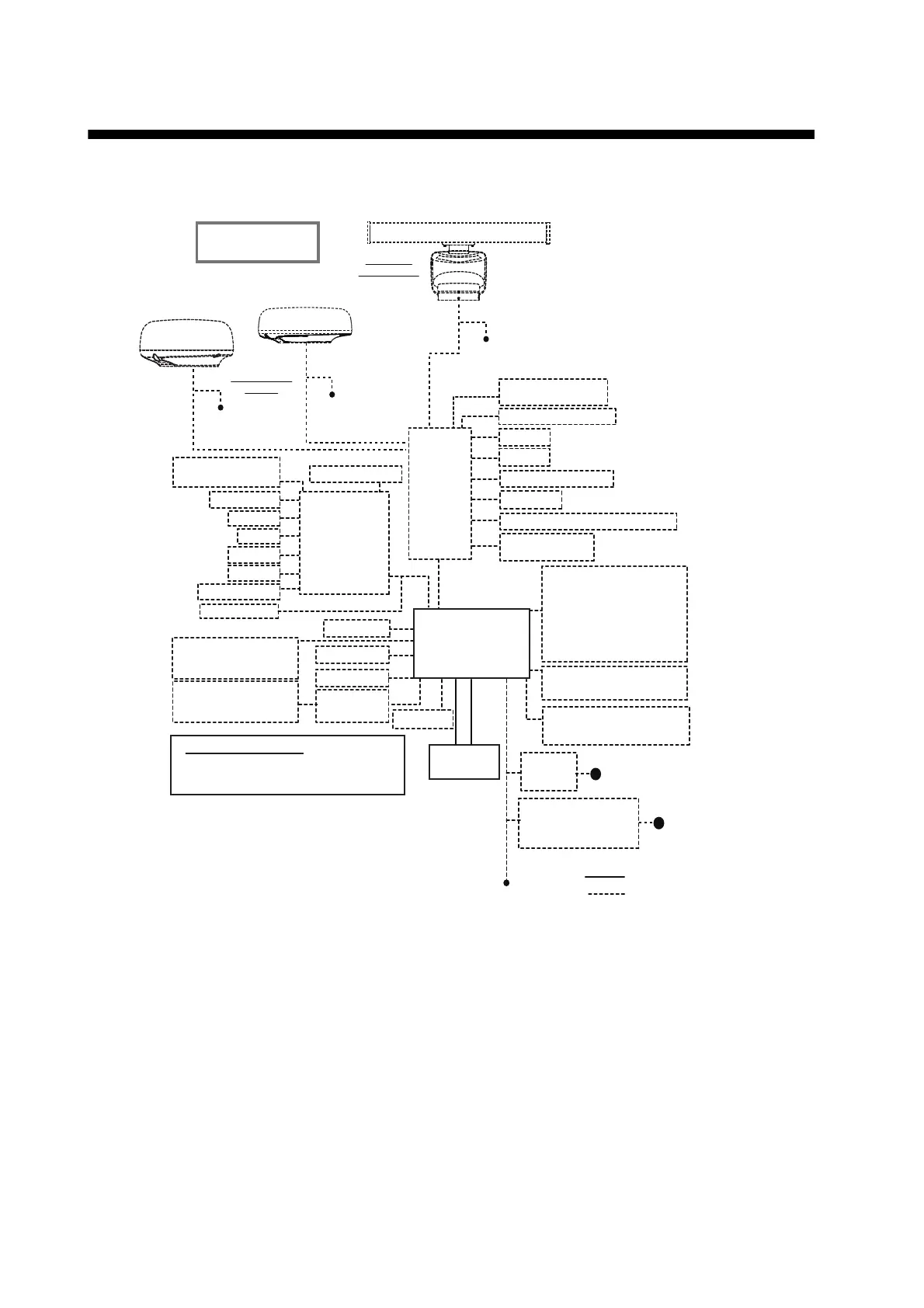

CCD Camera
CCD Camera
HDMI Input
12/24 VDC
Event SW/External Buzzer/
NMEA 0183 out/Power SW
Environmental category
Radar antenna: Exposed to the weather
All other units: Protected from the weather
*
1
: Use an Ethernet hub. A maximum of 4 units of NavNet TZtouch series can
be connected. NavNet TZtouch (TZT9/14/BB) cannot be connected. See page iii for
TZT series compatible combinations. TZT series has a built-in GPS antenna, GPS
receiver, and fish finder.
*
2
: Hatteland monitor display.
*
3
: Use an after-market PoE hub. The NETGEAR GS108PE is confirmed as
compatible. Compatibility tests are limited to general use as part of this
configuration and in no way indicates overall capability. Further, FURUNO
cannot guarantee the functionality of any after-market hub.
*
4
: FURUNO networks allow for a maximum of three Ethernet Hub HUB-101s.
*
5
: Applicable when FUSION-LINK compatible device is connected via Ethernet hub.
*
6
: Update the software of these radars to the following version or later
before using:
• DRS2D-NXT, DRS4D-NXT: Ver. 01.07
• DRS6A-NXT, DRS12A-NXT, DRS25A-NXT: Ver. 01.02
*
7
: DRS2D-NXT and DRS4D-NXT cannot be used in Japan.
*
8
: DRS4D X-Class is for Japanese market only.
Display Unit (
Touch Monitor
*
2
)
HD19T21-MMD-MA1-FHGP,
HD19T22-MMD-MA1-FHGP,
HD24T21-MMD-MA1-FHGP
or
HD24T22-MMD-MA1-FHGP
Sub Display Unit
(Same models as above)
Remote Controller
MCU-002 or MCU-004
Processor Unit*
1
MPU-004
Processor Unit*
1
MPU-004
Transducer
: Standard supply
: Optional or local
supply
Switch Box
PSD-003
Switch Box
PSD-003
Remote Controller
MCU-005
PoE HUB*
3
IF-NMEA2K1/2
HUB -101*
4
FI-5002
SCX-20
GP-330B
FA-40/FA-70
NAVpilot Series
FI-50/70
AIS Transponder
(BBDS1, DFF series)
FA-30/50
FAX-30
FUSION-Link compatible devices
*
5
BBWX weather receiver
Multi Beam Sonar
(DFF-3D)
IP Camera
FAR-2xx7/2xx8 series
FAR-15x3/15x8 series
AC/DC
Power Supply Unit
PR-241
100-230 VAC
1I, 50/60Hz
SC-30/33
Open Array
Radar Sensors
DRS4DL+
DRS2D-NXT
*
6,
*
7
/DRS4D-NXT
*
6,
*
7
,
DRS4D X-Class
*
8
Select one of radome
or open array sensor.
DRS6A X-Class/DRS12A X-Class/DRS25A X-Class,
DRS6A-NXT
*
6
/DRS12A-NXT
*
6
/DRS25A-NXT
*
6
Radome Radar
Sensors
12-24 VDC
12-24 VDC
12-24 VDC
FUSION-Link
compatible devides
Rectifier
PR-62
100/110/115/220/
230 VAC
1
I
, 50/60 Hz
Note: Do not connect/disconnect the HDMI cable between the MPU-004 and touch monitor while the power is
turned on.
To Next Page
