Garland Mealstream CTM3 User Manual

Mealstream Ovens Pt. No. 32Z3403 Issue 16
Page 11
23
23
24
28
27
24
27
26
26

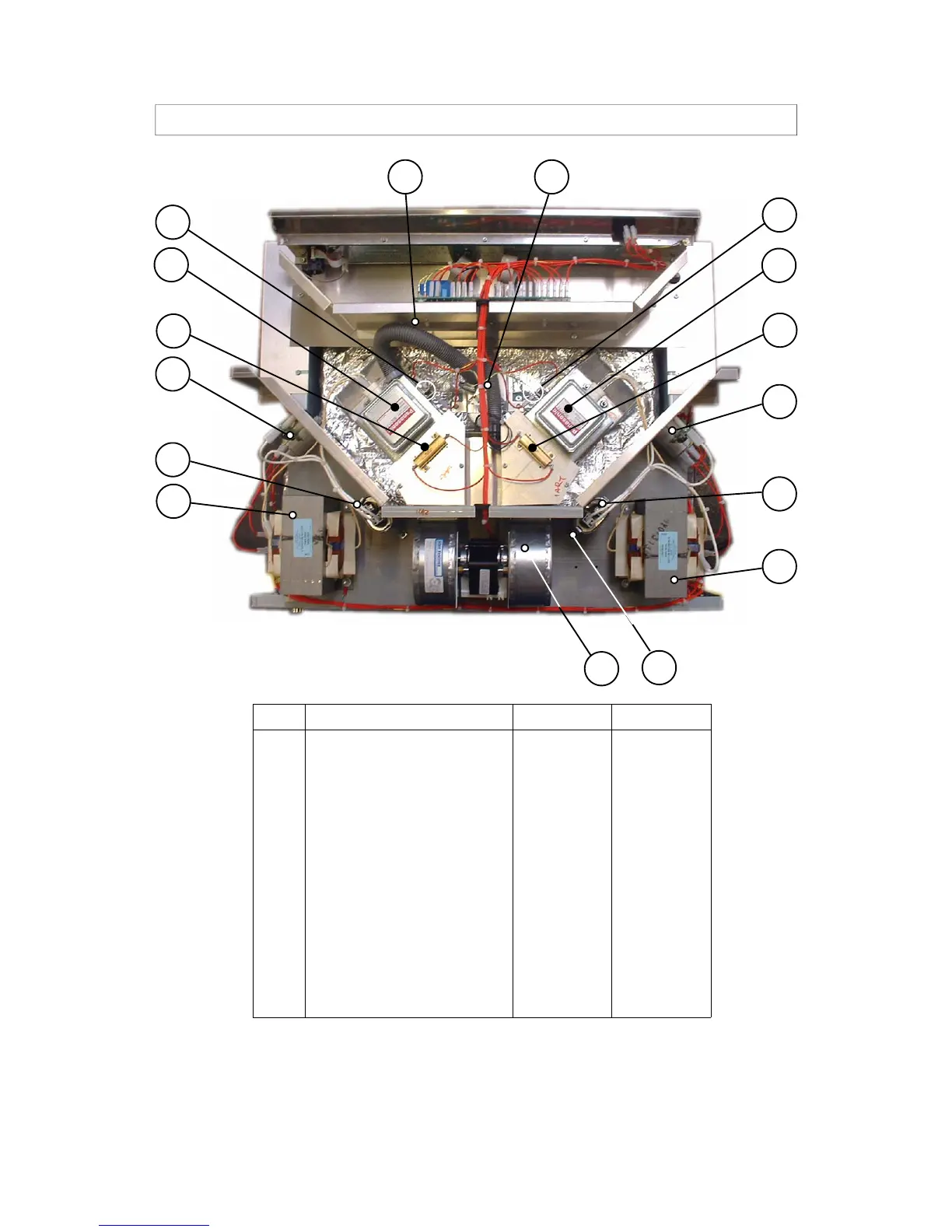

Top view
62
60 61
63
63
PRINCIPAL COMPONENTS
87
87
Note D: This Capacitor is replaced with 30Z1251 0.88μf 2500V and 2 x 88mm
clips 30Z0521 included in a service kit Part No. 10C0172
Note E: All transformers are now replaced by the Multi-tap type Part No. 30Z1230
No Description 208V 240V
23 Magnetron (Panasonic) 30Z1171 30Z1171
24 Resistor 470 R 30Z0283 30Z0283
26 Capacitor 0.88μf (2300V)
D
30Z0861 30Z0861
26 Capacitor 0.88μf (2500V) Kit 10C0172 10C0172
27 Transformer
E
30Z1230 30Z1230
28 Twin blower motor 30Z1145 30Z1145
60 25mm OD Flexible conduit 314402 314402
61 20mm OD Flexible conduit 314401 314401
62 Capacitor clip (88mm) 30Z0521 30Z0521
63 Filter 30Z0997 N/A
87 Magnetron Thermal Trip 2571016 2571016
