Mealstream Ovens Pt. No. 32Z3403 Issue 16
Page 50

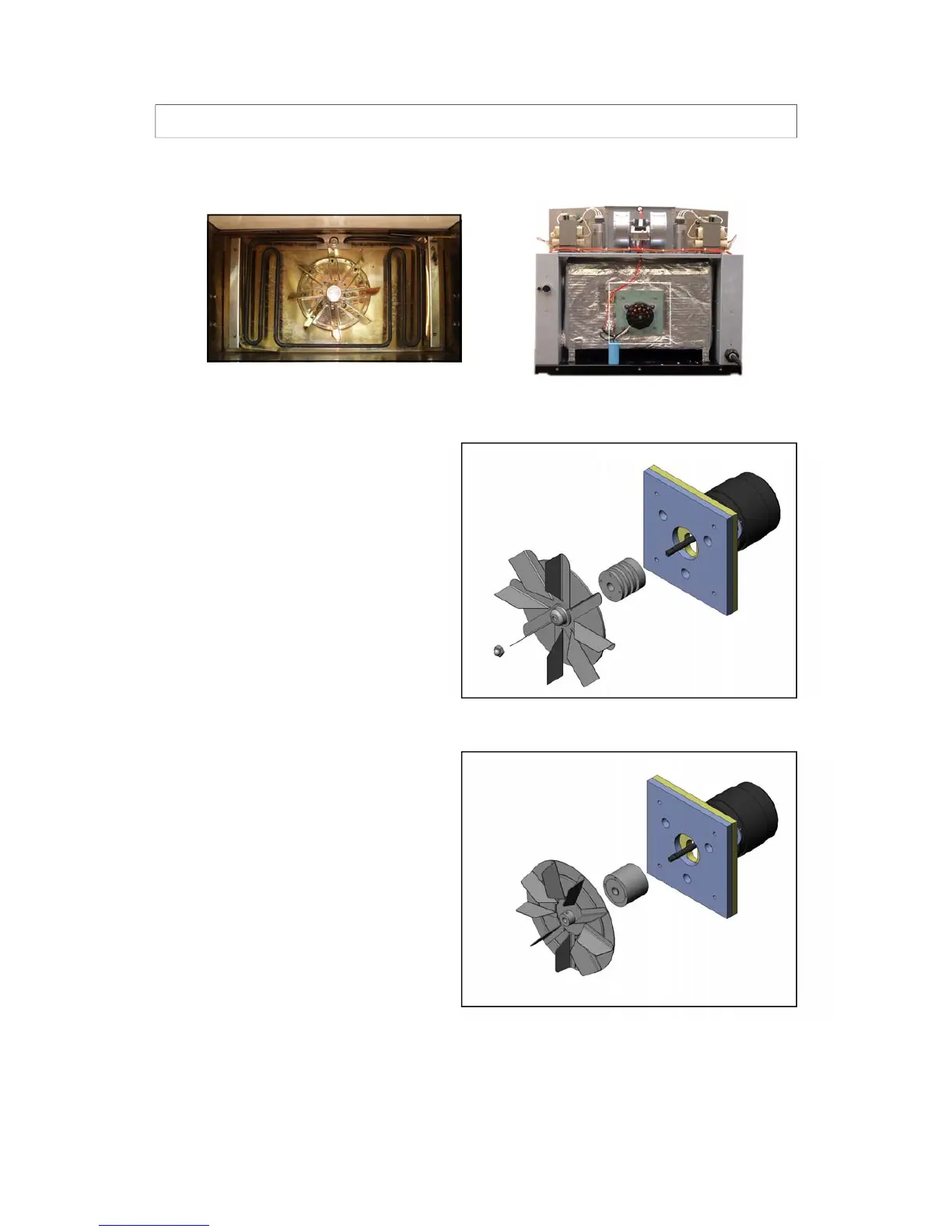

APPENDIX 5: Hot Air Motor Upgrade
Hot Air Motor Upgrade to High Speed Type:
Models before February 2005
Current Production Models:
From Model Serial No. 142160205
These ovens are fitted with the new high
speed Hot Air Motor.
Note: the RF trap/screen fitted to these
models is a larger diameter and not
compatible with earlier models.
Pre-February 2005
Impeller with
Threaded nut fixing
High speed motor
Impeller with set
screw fixing
Rear view of oven showing Hot Air Motor
If the oven has an impeller secured with a
Threaded Nut it should be upgraded with
Hot Air Motor Kit Part No. 10C0192.
The motor now has a plain shaft and the
new impeller design is secured with a small
hex set screw.
The RF trap/motor shaft screen has a
series of concentric grooves and is
replaced with a plain cylinder type.
See element cover plate and shelf runner/
tray support removal procedure Page 37
Cavity showing Impeller with threaded securing nut
( Element cover plate removed )
To Next Page
