Mealstream Ovens Pt. No. 32Z3403 Issue 16
Page 38
M5 nut runner
Tools required for replacing heater element.
Please Note
DO NOT attempt to carry out the following procedure
unless you have the following part and tools.

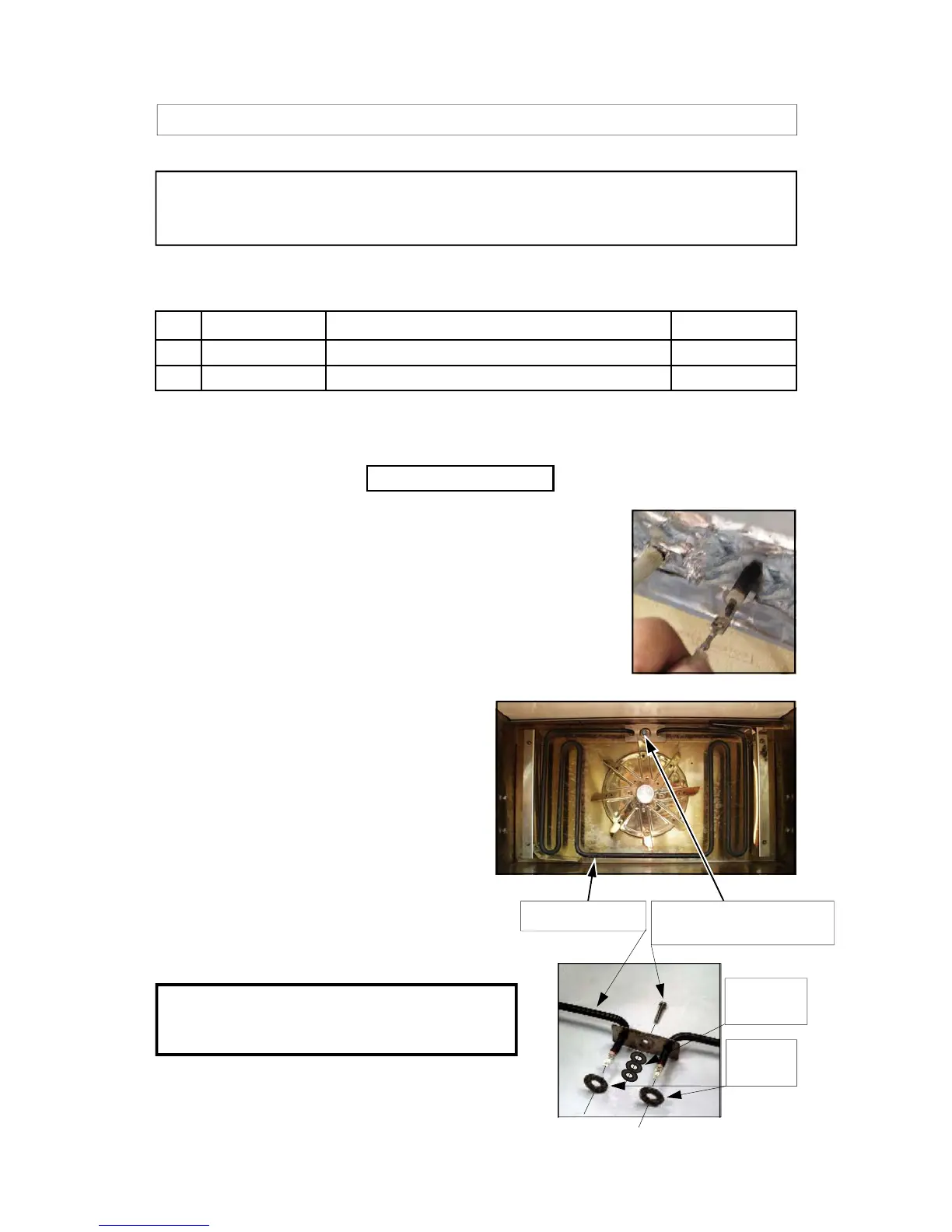

PROCEDURE FOR REPLACING HEATER ELEMENT
Parts required for replacing heater element.
Item Description Part Number Quantity
1 Heater Element 208 volt 40C0949 / 240 volt 40C0948 1
2 Mesh Washer 31Z5044 3
1. Disconnect or isolate oven from mains supply.
2. Remove outer covers.
3. Remove shelf runners and element cover plate
( See page 37 ).
4. Disconnect wires from heater element terminals at rear of
oven.
5. Remove M5 screw securing heater element.
6. Remove heater element.
7. Refit new heater element with new mesh
washers fitted over each terminal and 3 off M5
Flat washer over the M5 screw (this is very
important to prevent microwave leakage).
8. Tighten M5 screw and check that the
heater element is not touching the
cavity or protruding to much that it
will not touch the element cover plate.
9. Reconnect wires to heater element terminals
at rear of oven.
10. Replace element cover plate and shelf runners.
11. Perform Microwave Leakage procedure
(see page 22-23) checking carefully around
the heater element terminals at rear of oven.
12. Replace outer covers and fully test oven.
M5 x 25mm Hex head
S/S screw Pt. No. 101825
Heater Element
Mesh
Washers
3x M5 Flat
Washers
To Next Page
